Product Details
Place of Origin: china
Brand Name: Tiejun Turnstile
Certification: ISO9001
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: carton packing
Delivery Time: 8-15 work days
Payment Terms: L/C, T/T
Supply Ability: 2000 pc per/month
Model Number: |
TM67 |
Name: |
Facial Recognition Thermometer |
Processor: |
Dual ARM Cortex-A53 @ 1Ghz |
DDR: |
4Gb |
ROM: |
8GB(EMMC) |
Display Screen Size: |
7 Inch |
Model Number: |
TM67 |
Name: |
Facial Recognition Thermometer |
Processor: |
Dual ARM Cortex-A53 @ 1Ghz |
DDR: |
4Gb |
ROM: |
8GB(EMMC) |
Display Screen Size: |
7 Inch |

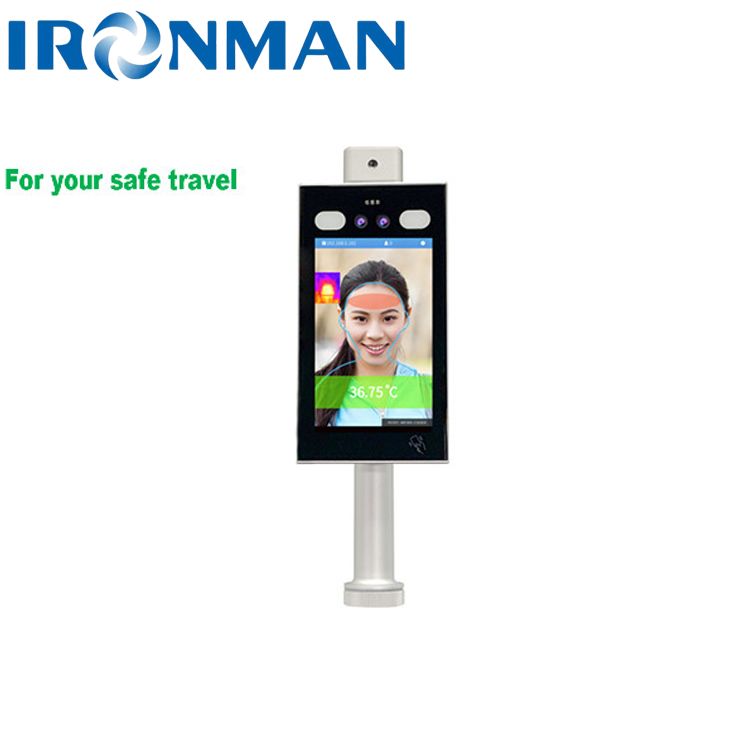

7 inch binocular temperature detection face recognition access control time attendance
all-in-one termina(l TM67)is a face recognition terminal integrating front-end face recognition
based on deep learning, body temperature detection, 1:N face comparison and access control functions in one device. It adopts industrial-grade embedded Linux platform, built-in neural network computing processor, full HD WDR color camera can easily cope with backlight dark light and half bright half black dark face environment. It supports a local 50,000 face library, used for offline recognition, comparison and liveness judgment. The 600*1024 full-color high-definition screen brings a more delicate display effect. This device has rich tail cable interfaces and flexible configuration. It can be equipped with additional functions such as 4G, WIFI, advertising playback, complex QR code recognition, and built-in card reader.
2.1 Quick view
Processor: Dual-core ARM Cortex-A53 @ 1Ghz; Support K12 children's face recognition;
Supports preferred face comparison based on face tracking;
Medical grade multi-point temperature measurement on the forehead; Color/infrared dual-light recognition, accurate and real-time liveness judgement; Support offline face recognition, no requirement for computer or cloud support; Support panoramic image and partial close-up image output;
Face recognition speed ≤0.08second, recognition rate ≥99%;
Upgraded temperature measuring distance 20-120cm, response time ≤0.5second ;
Support 50,000 face library; (Compare 20,000 faces with masks); Support USB and 485 interfaces;
Support Wiegand protocol (input/output); Support black and white list and alarm output; Support attendance reports export;
Support high temperature voice alarm;
Support mask detection and wearing reminding; Support advertising playback (optional)
| Product name |
7 inch binocular temperature detection face recognition access control time attendance all-in-one terminal |
| Model Number | TM67 |
| Basic parameters | |
| Processor | Dual ARM Cortex-A53 @ 1Ghz |
| DDR | 4Gb |
| ROM | 8GB(EMMC) |
| Display screen size | 7 inch |
| Display resolution | 600*1024 |
| Display type | TN |
| Sensor | SONY Starvis 1/2.8 "progressive scan CMOS |
| Minimum illumination | 0.01Lux@(F1.2,AGC ON) |
| Shutter | 1/80 second to 1/10,000 second |
| Lens | M12 threaded 6mm fixed focus |
| WDR | support |
| Digital noise reduction | self-regulating |
| Temperature detection parameters | |
|
Temperature measurement position |
Forehead |
|
Temperature measurement method |
Multi-point infrared thermal imaging temperature measurement |
| Measurement distance | 20-120cm |
| Temperature response | ≤0.5second |
| Measurement accuracy | ±0.3℃ |
| Display accuracy | 0.01℃ |
| Coding standard | |
| Video standard | H.264 |
| Bit rate | 1024Kbps~4Mbps |
| Video | |
| Encoding format | H.264 |
| Video size | 1280(H)*720(V),640(H)*360(V) |
| Frame rate | 25fps |
| Video settings |
Exposure (shutter), gain, contrast, saturation, brightness adjustable, face exposure compensation |
| Video overlay | Time, points |
| BLC | support |
| Smart functions | |
| Recognition mode | Offline dynamic face recognition |
| Recognition target | face |
| Recognition type | 1:N |
| Liveness detection | support |
| Face library | 50,000 faces;(mask comparison mode: 20,000 faces) |
| Recognition rate | ≥99% |
| Recognition speed | ≤0.08second |
| Recognition distance | 0.5-2.0m |
| Face library issued |
Single picture, batch picture, real-time snapshot import, card registration (optional),platform issued |
| Records capacity | 100,000 |
| Record mode | Panoramic view, partial close-up view |
| Management type | Blacklist, whitelist, temporary users |
| Output mode | Wiegand 26/34/66, relay |
| Trigger mode |
Face trigger, Wiegand input (card optional), touch input (touch optional) |
| Further development |
Support multi-platform (Windows, Linux ,ARM) ,multi-language(C#,C++,java) |
| Network | |
| Supporting protocols | ONVIF,TCP/IP,HTTP,FTP,485,GB28181,Wiegand,DNS,NTP,MQTT, WEBSOCKET,SDK |
| General function | Heartbeat, password protection, NTP |
| Interfaces | |
|
Communication Interface |
1 way RJ45 10M/100M adaptive Ethernet port |
|
Auxiliary communication |
1way RS-485,1 way USB2.0, |
| Trigger output | 2 way Digital I/O(relay),voice prompt |
| Audio output | 1 way 1watt speaker interface |
| Working environment | |
| Power supply | 12VDC /2A |
| Power consumption | ≤12W |
| Operating temperature | -30℃～＋70℃ |
| Working humidity | 0%－90%(no condensation) |
| IP rating | / |
4.1. Description of appearance
|
| Product appearance characteristics | |||
| Material | Packing size (mm) | Single package (g) | Screen size (in) |
|
Aluminum alloy + tempered glass panel |
440*180*115 | Around 1815 | 7 |
| Packing list | |||
|
Main device X1, M4 Allen wrench X1,QA Certificate X1,User manual X1,Warranty card X1, 12V 2A power adapter X1 |
|||
|
| Options for this model | ||
| Options | Functions | Specifications |
| Advertisement play |
Play video or image advertisement |
1024*600 equal ratio picture |
| 4G | 4G | All network access |
| Card | Card swiping access | IC+ID |
| Buit-in NFC |
Card, mobile phone swiping pass |
Cards and devices that comply with NFC specifications |
| WIFI | WIFI surfing | IEEE 802.11 b/g/n |
