| Place of Origin: | China |
|---|---|
| Brand Name: | IRONMAN |
| Certification: | CE; FCC; ISO9001 |
| Model Number: | IM.ST606 |
| Minimum Order Quantity: | 1pc |
| Price: | Negotiation |
| Packaging Details: | carton packing |
| Delivery Time: | 8-15 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2000 pc per/month |
| Name: | Speed Gate | Material: | SUS304 Stainless Steel |
|---|---|---|---|
| Service Life: | AC110~220V±10V | Communication Interface: | RS232 Serial Port |
| Power Voltage: | AC220V±10V | Control Input: | Dry Contact/relay Signal |
| Type: | Single Core & Double Core | Dimension: | 1500x120x980 |
| Highlight: | Speed Swing Gate Turnstile,Swing Gate Turnstile Space Saving |
||

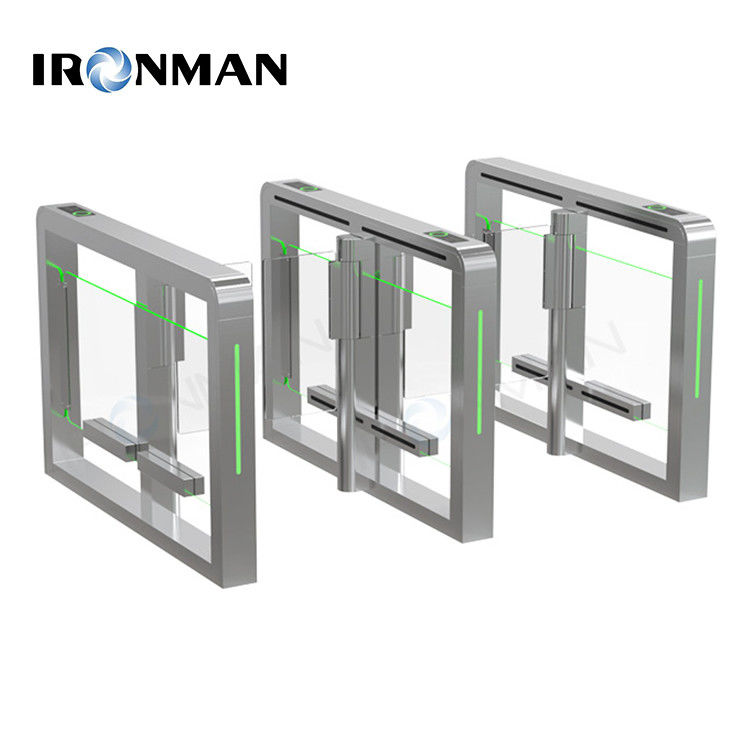

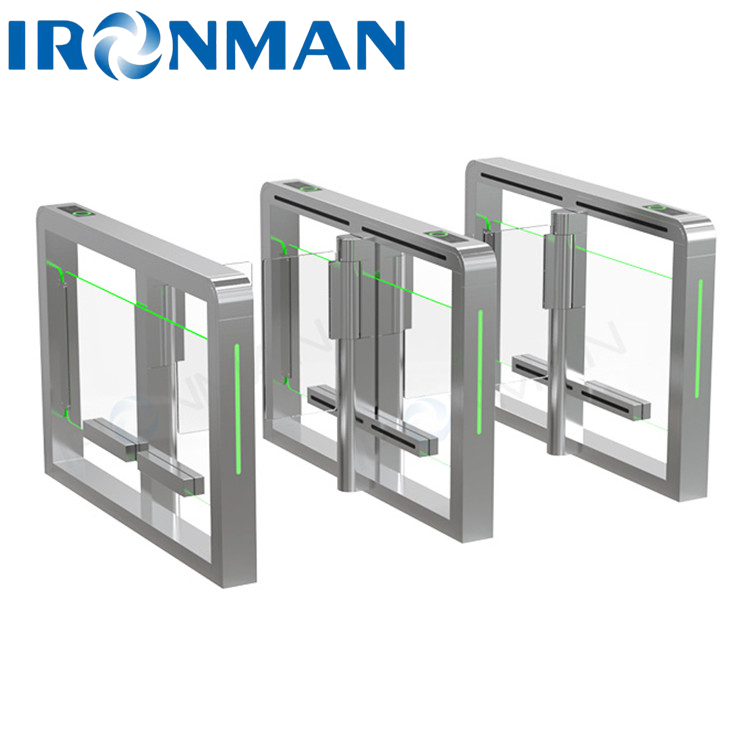

Speed Swing Gate Turnstile Space Saving With DC Brushless Motor
Product Specification
| Speed Gate Turnstile <IM.ST606> Product Specifications | ||||
| Product Parameters | Dimensions: | Length 1500*Width 120*Height 980mm | Box Material: | Stainless Steel SUS304 1.5mm |
| Swing Arm Material: | 10mm Acrylic Swing Door | Channel Width: | Recommended ≤1000mm | |
| Technical Parameter | ◆Box material: SUS304 stainless steel ◆Internal structure: frame structure / stainless steel shell surface drawing, whole machine planing ◆Power supply voltage: AC220V±10V ◆Drive motor: DC brushless motor (24~36VDC) ◆Movement structure: high-precision anti-collision movement, high-strength clutch, return in case of resistance, high strength, impact resistance; ◆Service life: more than 8 million times of continuous opening and closing ◆Infrared sensor: 8 pairs; (support more than 8 pairs of configuration) ◆Working environment: -35℃～75℃ ◆Relative humidity: 0～90% (no condensation) ◆Communication interface: RS232 serial port ◆Communication protocol: MODBUS protocol ◆The working speed of the turnstile: ≤45 people/min (the memory mode can be turned on) ◆Passing time: swiping card travel time: 10S (if no one passes within 10S: the gate will automatically close, and the time can be adjusted according to needs) |
|||
| Technical Parameter | Basic Function | ●Alarm function: with sound and light alarm function | ||
| ●Anti-interference: It can limit the abnormality of the gate caused by external factors such as electromagnetic | ||||
| ●Pass mode setting: One-way pass, two-way pass, free pass (wing arm retraction), etc. can be set through the buttons on the main control board | ||||
| ●Anti-trailing: prevent the non-permissible situation of too many people at one time. | ||||
| ●Anti-pinch function: When the gate is in the process of closing, the gate will stop closing after detecting the anti-pinch signal | ||||
| ●Auto reset: After the gate is opened, if there is no passage within the specified time, the system will automatically cancel the user's access authority; the default is 10 seconds, and the passage time can be set by the switch | ||||
| ●Access control: The external port can connect a variety of biometric devices | ||||
| ●Power off and switch off: switch on after power off | ||||
| ●Fault detection: The control board can support fault type detection, assist in analyzing the cause of the fault, and handle abnormal faults. | ||||
| ●Traffic indication: There is a traffic status indicator; and an alarm function for exceeding the stay time in the channel can be set | ||||
| Expanding Function | ▲Passing mode △Normal: Normal passing mode △ Passing: automatic car/electric car/motorcycle passing mode |
|||
| ▲Voice broadcast, expandable voice module, and volume adjustment | ||||
| ▲Open/close delay, set the delay opening time after the gate receives the opening signal/set the delay closing time after pedestrians pass, the default is 0 seconds | ||||
| ▲ Swipe the card in the channel △ Disabled by default: card swiping in the channel (induction infrared area) is invalid △Allow: Card verification is allowed in the channel. |
||||
| ▲Whether the trailing and reversing are blocked by closing the door △Do not close the gate: the reverse/trailing (A swipe card, B pass) will not close the gate △Close the gate first and then open the gate: close the gate first for reverse/trailing traffic, and then open the gate again after closing △Do not open the gate after closing the gate: the reverse/trailing traffic will close the gate, and the gate will not be opened again after closing |
||||
| ▲Fire linkage △Normally open mode: the gate remains open △ Normally closed mode: the gate remains closed |
||||
|
▲Passage Mode
|
||||
Dimension Drawing
Product Description
The equipment runs smoothly, with low noise, high efficiency, space saving, and can effectively reduce security personnel. It is suitable for high-end office buildings, airports, subway stations and other places with high security requirements.
IM.ST606 Speed Gate Turnstile is a commercial design turnstile equipped with all the latest features to speed up operation. Measuring 1500mm*120mm*980mm, it offers a convenient 600mm passage width. With a life span of 5 million times, it is made of stainless steel and consumes only 100W of power. This turnstile is designed for maximum security and fast operation. It can easily handle high traffic areas and is an ideal choice for commercial applications.
Product Application
Widely used in the station, wharf subway, factories, office building, hotel, clubs, intelligent community, enterprises and institution that need intelligent access management.
Projects
IRONMAN IM.ST606 Speed Gate Turnstile is an ideal access control solution for commercial and office building security. With its sleek design, the turnstile has a low profile and easily blends into any building interior and provides convenient access control. The compact size of 1500mm*120mm*980mm is perfect for limited spaces and can be operated with a frequency of 50/60Hz and a low power consumption of only 100W. The customizable passage width ensures that the turnstile can be used by large groups of people, making it a great choice for high traffic areas.
