| Place of Origin: | china |
|---|---|
| Brand Name: | Tiejun Turnstile |
| Certification: | ISO9001 |
| Model Number: | TDH-ST611DC |
| Minimum Order Quantity: | 1pc |
| Price: | Negotiation |
| Packaging Details: | carton packing |
| Delivery Time: | 8-15 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2000 pc per/month |
| Name: | Office Barrier Gate | Housing Material: | AISI SUS304 |
|---|---|---|---|
| Power Voltage: | AC220V±10V | Communication Interface: | RS232 Serial Port |
| Service Life: | 5,000,000 Times | Basic Function: | Alarm Function |
| Product Application: | Scenic Spots, Stations, Leisure And Entertainment Venues | ||
| Highlight: | Electronic Baffle Gate Turnstile,Baffle Gate Turnstile Stainless Steel |
||

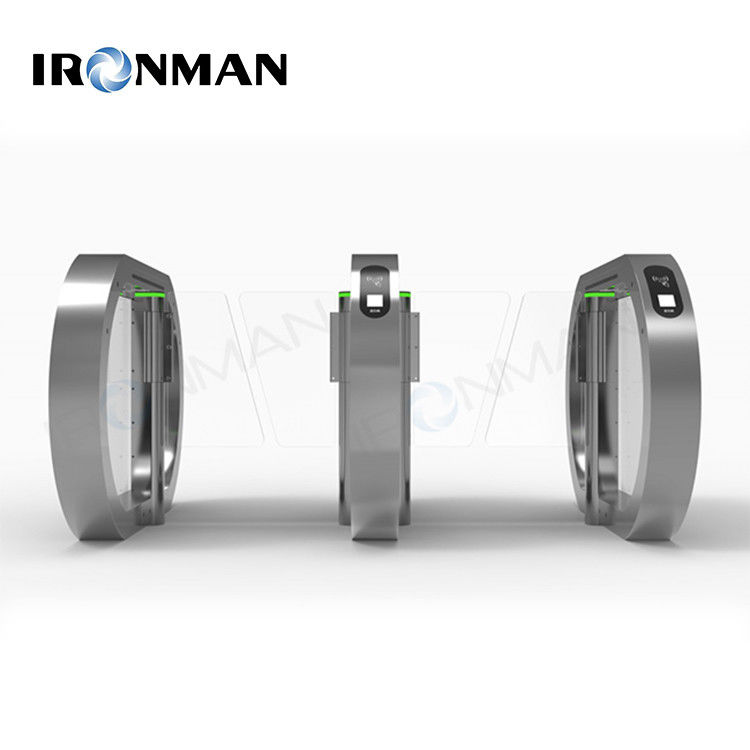

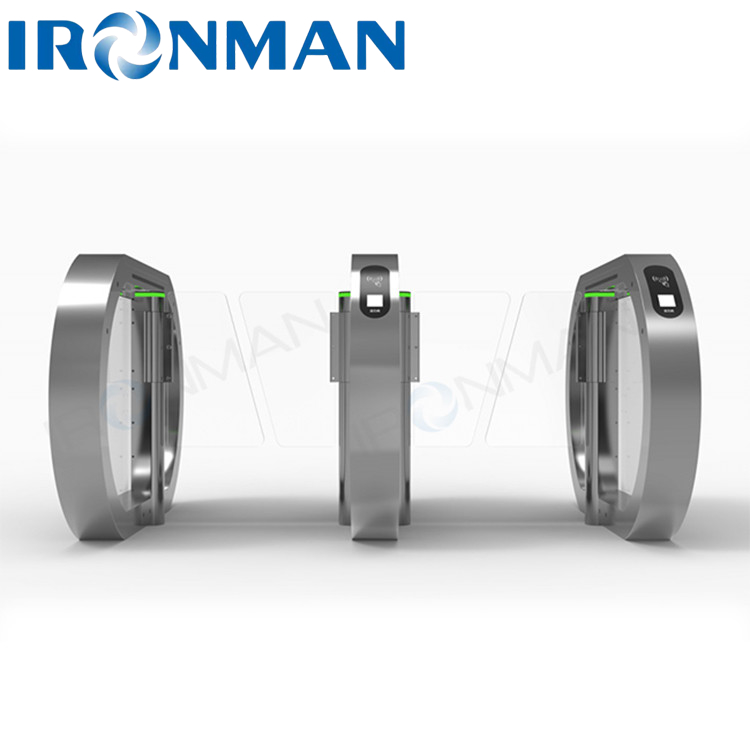

| Arc Speed Gate Turnstile <TDH-ST608> Product Specifications | ||||
| Product Icon | Document Number: | |||
| Edition: | A/0 | |||
| Revision Time: | ||||
| Revised By: | ||||
| Product Parameters | Dimensions: | Length 1500*Width 200*Height 980mm | Box Material: | Box: Stainless Steel SUS304 Foot 1.5mm Upper Cover: Stainless Steel SUS304 Foot 1.5mm |
| Swing Arm Material: | A:10mm Acrylic Swing Door B:10mm Tempered Glass |
Channel Width: | ≤1100mm | |
| Place: | Suitable for indoor pedestrian passage places; such as: office buildings/hotels/residential quarters/high-end factory parks/higher schools/hospitals/enterprises and institutions/government halls/sports venues/convention and exhibition centers; | |||
| Technical Parameter | ◆Box material: austenitic stainless steel SUS304 ◆Internal structure: frame structure / stainless steel shell surface drawing, whole machine planing ◆Power supply voltage: AC220V±10V ◆Drive motor: servo motor ◆Movement structure: Planetary metal gear reducer is high-speed, precise, silent, and averagely trouble-free ◆Service life: 12 million times of continuous opening and closing ◆Infrared sensor: 8 pairs; (support more than 8 pairs of configuration) ◆Opening method: RS485/RS232/IO ◆EMC index: antistatic level 3, air discharge 15KV ◆Lightning protection: 2KV ◆Drive motor: servo motor, high-precision clutch movement ◆Working environment: -20℃～75℃ ◆Relative humidity: 0～90% (no condensation) ◆Open speed: <0.5S (adjustable) ◆Passing time: swiping card travel time: 10S (if no one passes within 10S: the gate will automatically close, and the time can be adjusted according to needs) |
|||
| Technical Parameter | Basic Function | ●Voice broadcast: it has the function of entering and opening the gate / exiting the gate / breaking into the voice / trailing voice / stop voice broadcasting function | ||
| ●Intelligent linkage alarm: including sound and light alarms such as illegal intrusion and reverse traffic, which can be linked with other alarm monitoring equipment | ||||
| ●Anti-interference: It can limit the abnormality of the gate caused by external factors such as electromagnetic | ||||
| ●Passage mode setting: One-way pass, two-way pass, free pass, etc. can be set through the buttons on the main control board | ||||
| ●Anti-trailing: prevent the non-permissible situation of too many people at one time. | ||||
| ●Anti-pinch function: When the gate is in the process of closing, the gate will stop closing after detecting the anti-pinch signal | ||||
| ●Auto reset: After the gate is opened, if there is no passage within the specified time, the system will automatically cancel the user's access authority; the default is 10 seconds, and the passage time can be set by the switch | ||||
| ●Access control: The external port can connect a variety of biometric devices | ||||
| ●Power off and switch off: switch off after power off, and can set the switch opening direction | ||||
| ●Fault detection: The control board can support fault type detection, assist in analyzing the cause of the fault, and handle abnormal faults. | ||||
| ●Traffic indication: There is a traffic status indicator; and an alarm function for exceeding the stay time in the channel can be set | ||||
| Expanding Function | ▲Passing mode △Normal: Normal passing mode △ Passing: automatic car/electric car/motorcycle passing mode |
|||
| ▲Open/close delay, set the delay opening time after the gate receives the opening signal/set the delay closing time after pedestrians pass, the default is 0 seconds | ||||
| ▲ Swipe the card in the channel △ Disabled by default: card swiping in the channel (induction infrared area) is invalid △Allow: Card verification is allowed in the channel. |
||||
| ▲Whether the trailing and reversing are blocked by closing the door △Do not close the gate: the reverse/trailing (A swipe card, B pass) will not close the gate △Close the gate first and then open the gate: close the gate first for reverse/trailing traffic, and then open the gate again after closing △Do not open the gate after closing the gate: the reverse/trailing traffic will close the gate, and the gate will not be opened again after closing |
||||
| ▲Fire linkage △Normally open mode: the gate remains open; △ Normally closed mode: the gate remains closed |
||||
| ▲System language function △Chinese: The system can set the Chinese interface △English: The system can set the English interface |
||||
| ▲Passage Mode △Bidirectional passage,swiping card bi-directionally for people flow. △Bidirectional free passage, no credit card verification is required. △Single directional passage, Single directional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes. △Single directional free passage, Single directional (A) free passage, and reverse directional passing (B) require a swiping card verification. △Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state. |
||||
