Product Details
Place of Origin: China
Brand Name: RONMAN
Certification: ISO9001； FCC; CE
Model Number: IM.LBST01
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: Carton packing
Delivery Time: 8-15 work days
Payment Terms: L/C, T/T
Supply Ability: 2000 pc per/month
Name: |
Swing Barrier Gate Turnstile |
Dimensions: |
≤800mm |
Wing Material: |
1500*120*980 |
Housing Material：: |
Housing: Corrosion Resistant Electrolytic Plate 1.5mm Top Cover: Cast Aluminum Alloy 10mm Column：Cast Aluminum Alloy 3mm |
Input Voltage: |
AC110V~220V±10% , 50Hz |
Lightning Protection: |
2KV |
Warranty: |
2 Years |
Communication: |
RS485,RS232 |
Name: |
Swing Barrier Gate Turnstile |
Dimensions: |
≤800mm |
Wing Material: |
1500*120*980 |
Housing Material：: |
Housing: Corrosion Resistant Electrolytic Plate 1.5mm Top Cover: Cast Aluminum Alloy 10mm Column：Cast Aluminum Alloy 3mm |
Input Voltage: |
AC110V~220V±10% , 50Hz |
Lightning Protection: |
2KV |
Warranty: |
2 Years |
Communication: |
RS485,RS232 |

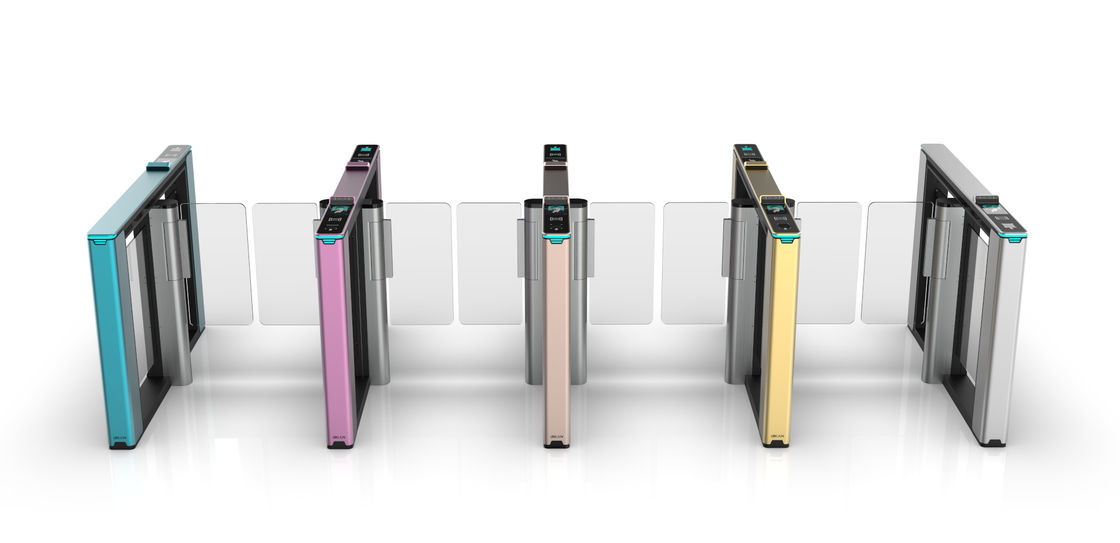

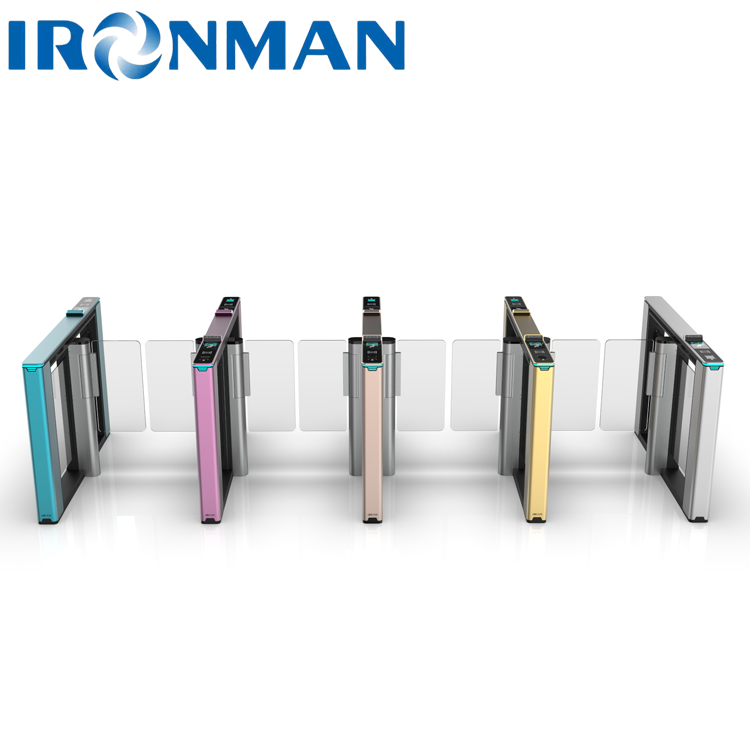

Swing Barrier Turnstile Gate 1500*120*980mm For Airports / Libraries
| Product Specifications |
||||
| Product parameters | Dimensions | 1500*120*980MM | Housing Material: | Housing: Corrosion Resistant Electrolytic Plate 1.5mm Top Cover: Cast aluminum alloy 10mm Column:Cast aluminum alloy 3mm |
| wing material: | Transparent Acrylic；T=10MM | Surface: | Column:Corrosion resistant electrolytic plate black matte baking paint Cover and column: Aluminum alloy oxidation (standard color: space gray) |
|
|
Technical Parameters |
◆ Housing Material: Aluminum alloy mold opening: top cover 10mm ;column 3mm thick; Baking paint frame thickness: 1.5mm ◆ supply voltage:AC220V±10V ◆ Drive motor: servo motor ◆ Movement structure: Planetary metal gear reducer:high-speed, precise, silent, and average failure-free ◆ Service life: 12,000,000 times of continuous opening and closing ◆ Infrared sensor: 8 pairs (support more than 8 pairs) ◆ Opening method:RS485/RS232/IO ◆ EMC Standard: Antistatic level 3,Air discharge 15KV ◆ Lightning Protection: 2KV ◆ Motor: servo motor,High precision clutch movement ◆ Working temperature:-20℃～75℃ ◆ Relative humidity:0～90%(non-condensing) ◆ Opening speed:＜0.5S(aujustable) ◆ passing time:Swipe the traffic card time:10S(If no one passes within 10S: the gate closes automatically, and the time can be adjusted as needed) |
|||
| Function | Basic Function | ● Voice alam:it has the function of entering and opening the gate / exiting the gate / breaking in voice / trailing voice / stop voice alarm function | ||
| ● Intellihrnt linkage alarm function:including sound and light alarms of break-in and reverse pass,which can be linked with other alarm monitoring equipment | ||||
| ● Anti-interference:It can limit the abnormality of the gate caused electromagnetic and other external factors | ||||
| ● Traffic mode setting:One-way traffic, two-way traffic, free traffic, etc. can be set through the buttons on the main control panel | ||||
| ● Anti tailing: prevent the unauthorized situation of too many people at one time. | ||||
| ● Anti pinch function:When the gate is in the process of closing, the gate will stop closing after detecting the anti-pinch signal | ||||
| ● Automatic reset: after opening the gate, if the user does not pass within the specified time, the system will automatically cancel the user's permission to pass this time; The default is 10 seconds, and the traffic time can be set through the switch | ||||
| ● Access control: External port can connect a variety of biometric devices | ||||
| ● Power off and opening:switch off after power off, and the switch opening direction can be set | ||||
| ● Fault detection:Control board can support fault type detection,Assist in analyzing the causes of faults and handling faults and abnormalities. | ||||
| ● Passing indication: with passing status indicator; It can also set the alarm function of exceeding the stay time in the channel | ||||
| Extension Function | ▲ Passing Mode △ Normal: normal pedestrian passing mode △ Passing: automatic vehicle / electric vehicle / motorcycle passing mode |
|||
| ▲Opening / closing delay, set the delay opening time after the gate turnstile receives the opening signal/set the delay closing time after pedestrians pass, the default is 0 seconds | ||||
| ▲Card swiping in the channel △Default forbidden: card swiping in the channel (inductive infrared area) is invalid △Permission:card swiping verification is allowed in the channel |
||||
| ▲Whether the trailing and reversing are blocked by closing the door △The gate Closed: the reverse/trailing (A swipe card, B pass) will not close the gate △Close the gate first and then open the gate: close the gate first for reverse/trailing traffic, and then open the gate again after closing △Do not open the gate after closing the gate: the reverse/trailing traffic will close the gate, and the gate will not be opened again after closing |
||||
| ▲Fire linkage △Normally open mode: the gate remains open; △ Normally closed mode: the gate remains closed |
||||
| ▲System language function △Chinese: The system can set the Chinese interface △English: The system can set the English interface |
||||
| ▲Passage Mode △Bidirectional passage,swiping card bi-directionally for people flow. △Bidirectional free passage, no credit card verification is required. △Unidirectional passage, unidirectional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes. △Unidirectional free passage, unidirectional (A) free passage, and reverse directional passing (B) require a swiping card verification. △Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state. |
||||
Features:
1. The turnstile provides control access smoothly and effectively by basic operation,and also prevent illegal in and out.The machine is well in design,rustproof,durable and can resist external destroy.
2. Turnstile offer a compact, cost-effective, fast operating, easy to use, reliable entrance solution for internal or external use in areas where there is a large and constant flow of people.
The advantages of using a turnstile compared to a conventional gate include the better utilization of manpower, increased reliability and improved security.
Dimension Drawing:
Product Application
Indoor Unit can be used for:Airports, subways, libraries, office buildings, theaters, office buildings, factories, scenic spots, stations, leisure and entertainment venues, etc.
Projects
.
The Barrier Turnstile Gate will be shipped in a secure package that is designed to protect the product during transit. The package will include:
