| Place of Origin: | China |
|---|---|
| Brand Name: | IRONMAN |
| Certification: | ISO9001 |
| Model Number: | IM.LB.03 |
| Minimum Order Quantity: | 1pc |
| Price: | Negotiation |
| Packaging Details: | Carton packing |
| Delivery Time: | 8-15 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2000 pc per/month |
| Name: | Swing Barrier Turnstile | Dimensions: | 550mm -1300mm |
|---|---|---|---|
| Wing Material：: | 1500*120*985 | Housing Material: | Housing：AISI SUS304 1.5MM |
| Input Voltage: | AC110V±10% , 50Hz | ||
| Highlight: | Entrance Barrier Turnstile Gate,Barrier Turnstile Gate AC220V,Office Building Security Gates |
||

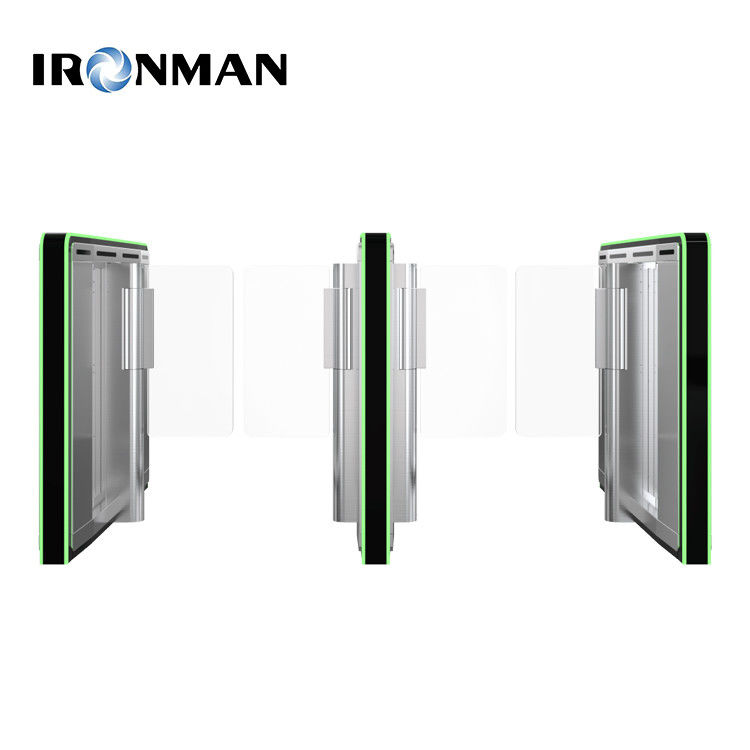

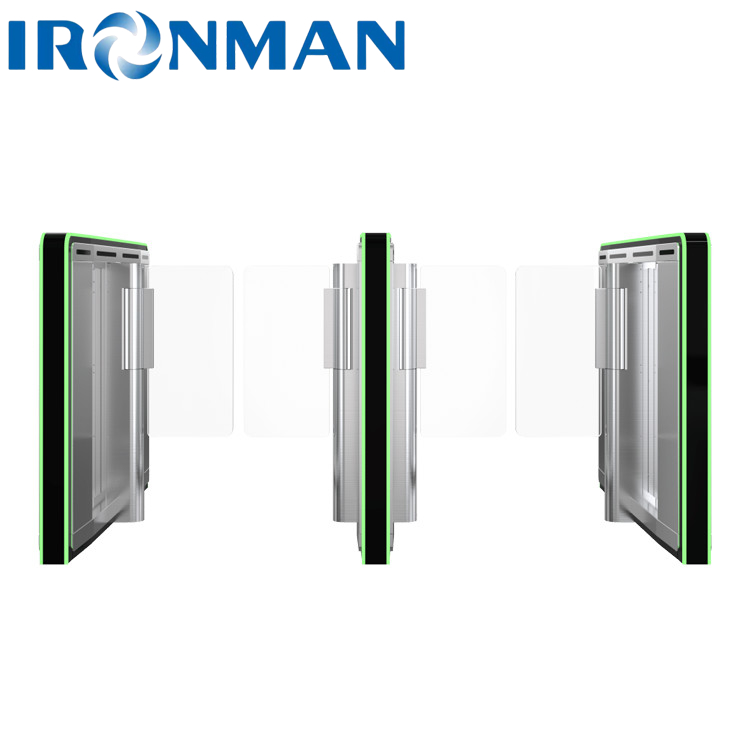

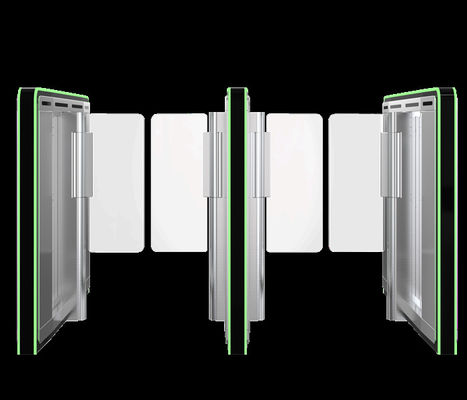

Office Building Entrance Barrier Turnstile Gate AC220V 50Hz Anti Interference
| Product Parameters | Dimensions | 1500*120*985MM | Housing Material: | Housing:AISI SUS304 1.5MM Cover:Corrosion Resistant Electrolytic Plate baking paint 1.5MM Coluumn:Corrosion Resistant Electrolytic Plate baking paint 1.5MM |
| wing material: | Transparent Acrylic；T=10MM | Surface: | Housing:original color hairline Stainless Steel Cover and column:Glossy acrylic with LED |
|
| application: | Indoor unit can be used for:Airports, subways, libraries, office buildings, theaters, office buildings, factories, scenic spots, stations, leisure and entertainment venues, etc. | |||
| Technical Parameters | ◆Housing Material: SUS304 1.5MM Cover:Corrosion Resistant Electrolytic Plate baking paint 1.5MM Coluumn:Corrosion Resistant Electrolytic Plate baking paint 1.5MM ◆Input voltage: AC220V±10% ,50Hz ◆Opening method:RS485/RS232/IO ◆EMC Standard:Antistatic level 3,Air discharge 15KV ◆Lightning Protection:2KV ◆Motor: servo motor,High precision clutch movement ◆Working temperature:-20℃～75℃ ◆Relative humidity:0～90%(non-condensing) ◆Opening speed:＜0.5S(aujustable) ◆passing time:Swipe the traffic card time:10S(If no one passes within 10S: the gate closes automatically, and the time can be adjusted as needed) |
|||
| Function Parameter | Basic Function | ●Voice Alarm:it has the function of entering and opening the gate / exiting the gate / breaking in voice / trailing voice / stop voice broadcasting function | ||
| ●Intelligent linkage alarm function:including sound and light alarms of break-in and reverse pass,which can be linked with other alarm monitoring equipment | ||||
| ●Anti-interference:It can limit the abnormality of the gate caused electromagnetic and other external factors | ||||
| ●Traffic mode setting:One-way traffic, two-way traffic, free traffic, etc. can be set through the buttons on the main control panel | ||||
| ●Anti tailing: prevent the unauthorized situation of too many people at one time. | ||||
| ●Anti pinch function:When the gate is in the process of closing, the gate will stop closing after detecting the anti-pinch signal | ||||
| ●Automatic reset: after opening the gate, if the user does not pass within the specified time, the system will automatically cancel the user's permission to pass this time; The default is 10 seconds, and the traffic time can be set through the switch | ||||
| ●Access control: External port can connect a variety of biometric devices | ||||
| ●Power off and opening:switch off after power off, and the switch opening direction can be set | ||||
| ●Fault detection:Control board can support fault type detection,Assist in analyzing the causes of faults and handling faults and abnormalities. | ||||
| ●Passing indication: with passing status indicator; It can also set the alarm function of exceeding the stay time in the channel | ||||
| Extension Function | ▲ Passing Mode △ Normal: normal pedestrian passing mode △ Passing: automatic vehicle / electric vehicle / motorcycle passing mode |
|||
| ▲Opening / closing delay, set the delay opening time after the gate turnstile receives the opening signal/set the delay closing time after pedestrians pass, the default is 0 seconds | ||||
| ▲Card swiping in the channel △Default forbidden: card swiping in the channel (inductive infrared area) is invalid △Permission:card swiping verification is allowed in the channel |
||||
| ▲Whether the trailing and reversing are blocked by closing the door △The gate Closed: the reverse/trailing (A swipe card, B pass) will not close the gate △Close the gate first and then open the gate: close the gate first for reverse/trailing traffic, and then open the gate again after closing △Do not open the gate after closing the gate: the reverse/trailing traffic will close the gate, and the gate will not be opened again after closing |
||||
| ▲Fire linkage △Normally open mode: the gate remains open; △ Normally closed mode: the gate remains closed |
||||
| ▲System language function △Chinese: The system can set the Chinese interface △English: The system can set the English interface |
||||
| ▲Passage Mode △Bidirectional passage,swiping card bi-directionally for people flow. △Bidirectional free passage, no credit card verification is required. △Unidirectional passage, unidirectional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes. △Unidirectional free passage, unidirectional (A) free passage, and reverse directional passing (B) require a swiping card verification. △Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state. |
||||
Features:
1. The turnstile provides control access smoothly and effectively by basic operation,and also prevent illegal in and out.The machine is well in design,rustproof,durable and can resist external destroy.
2. Turnstile offer a compact, cost-effective, fast operating, easy to use, reliable entrance solution for internal or external use in areas where there is a large and constant flow of people.
The advantages of using a turnstile compared to a conventional gate include the better utilization of manpower, increased reliability and improved security.
Application
Bus, Station,factories,Toilets, Library,etc
