| Place of Origin: | China |
|---|---|
| Brand Name: | IRONMAN |
| Certification: | ISO9001； FCC; CE |
| Model Number: | IM.ST601 |
| Minimum Order Quantity: | 1pc |
| Price: | Negotiation |
| Packaging Details: | Carton packing |
| Delivery Time: | 8-15 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2000 pc per/month |
| Name: | Turnstile Barrier Gate | Basic Function: | 550mm |
|---|---|---|---|
| Application: | 1500*120*1000 | Power Supply Voltage: | AC220V±10V |
| Input Voltage: | AC110V±10% , 50Hz | Warranty: | 2 Years |
| Highlight: | Semi Automatic Barrier Turnstile Gate,Barrier Turnstile Gate Alarm Function,Semi Automatic Turnstile Gate |
||

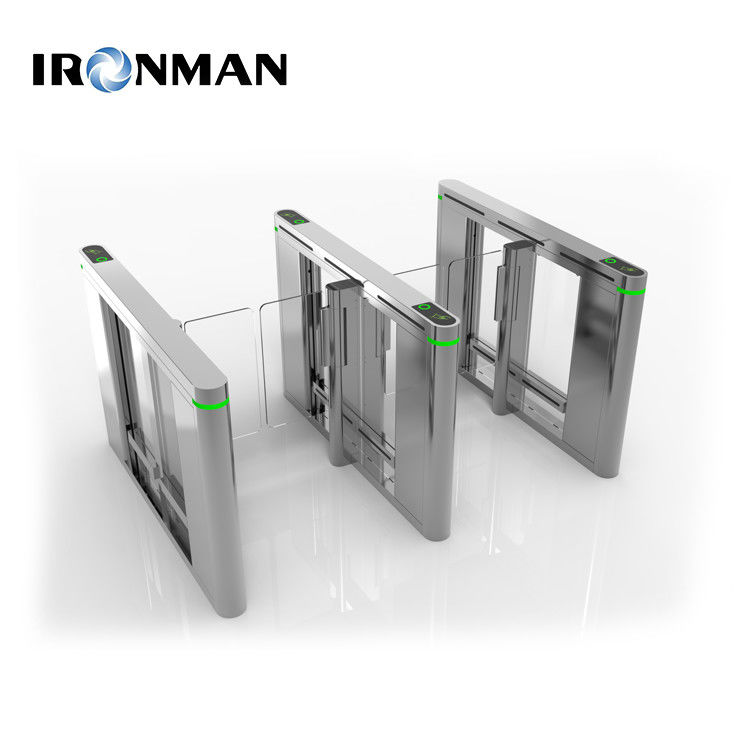

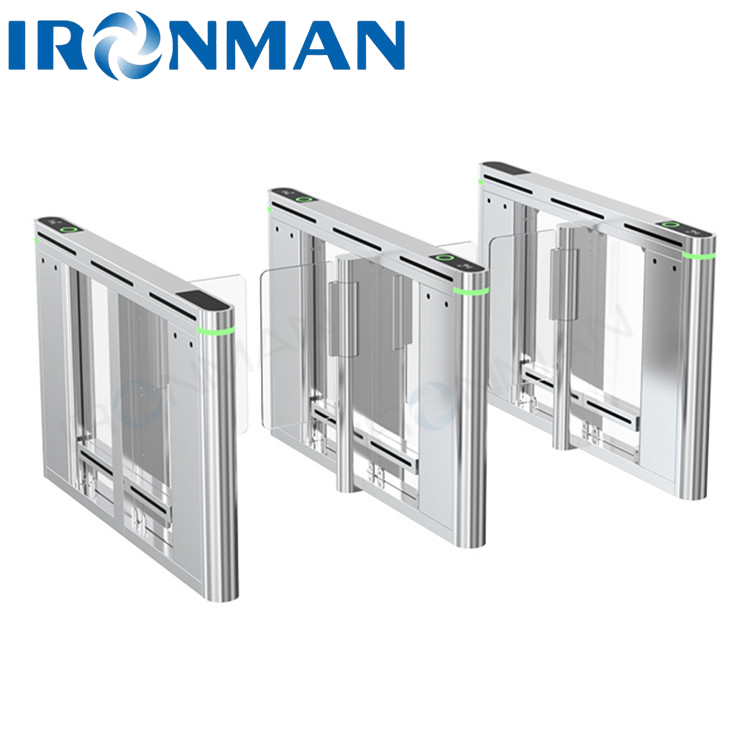

Automatic Barrier Turnstile Gate Alarm Function With DC Electromagnetic Drive
| Product Parameters | Dimensions: | Length 1500*Width 120*Height 1000mm | Box Material: | Box: Stainless Steel SUS304 1.5mm Upper Cover: Stainless Steel SUS304 1.5mm |
| Swing Arm Material: | 10mm Acrylic Swing Door | Channel Width: | Open Type; Recommended ≤1000mm | |
| Place: | Suitable For Indoor Pedestrian Passage Places; Such As: Office Buildings/Hotels/Residential Quarters/High-End Factory Parks/Higher Schools/Hospitals/Enterprises And Institutions/Government Halls/Sports Venues/Convention And Exhibition Centers; | |||
| Technical Parameter | ◆Box material: austenitic stainless steel SUS304 ◆Internal structure: frame structure / stainless steel shell surface drawing, whole machine planing ◆Power supply voltage: AC220V±10V ◆Drive motor: DC brushless motor (24~36VDC) ◆Movement structure: high-precision anti-collision movement, high-strength clutch, return in case of resistance, high strength, impact resistance; ◆Service life: more than 8 million times of continuous opening and closing ◆Infrared sensor: 8 pairs; (support more than 8 pairs of configuration) ◆Working environment: -35℃～75℃ ◆Relative humidity: 0～90% (no condensation) ◆Communication interface: RS232 serial port ◆Communication protocol: MODBUS protocol ◆The working speed of the turnstile: ≤45 people/min (the memory mode can be turned on) ◆Passing time: swiping card travel time: 10S (if no one passes within 10S: the gate will automatically close, and the time can be adjusted according to needs) |
|||
| Function | Basic Function | ●Alarm function: with sound and light alarm function | ||
| ●Anti-interference: It can limit the abnormality of the gate caused by external factors such as electromagnetic | ||||
| ●Pass mode setting: One-way pass, two-way pass, free pass (wing arm retraction), etc. can be set through the buttons on the main control board | ||||
| ●Anti-trailing: prevent the non-permissible situation of too many people at one time. | ||||
| ●Anti-pinch function: When the gate is in the process of closing, the gate will stop closing after detecting the anti-pinch signal | ||||
| ●Auto reset: After the gate is opened, if there is no passage within the specified time, the system will automatically cancel the user's access authority; the default is 10 seconds, and the passage time can be set by the switch | ||||
| ●Access control: The external port can connect a variety of biometric devices | ||||
| ●Power off and switch off: switch on after power off | ||||
| ●Fault detection: The control board can support fault type detection, assist in analyzing the cause of the fault, and handle abnormal faults. | ||||
| ●Traffic indication: There is a traffic status indicator; and an alarm function for exceeding the stay time in the channel can be set | ||||
| Expanding Function | ▲Passing mode △Normal: Normal passing mode △ Passing: automatic car/electric car/motorcycle passing mode |
|||
| ▲Voice broadcast, expandable voice module, and volume adjustment | ||||
| ▲Open/close delay, set the delay opening time after the gate receives the opening signal/set the delay closing time after pedestrians pass, the default is 0 seconds | ||||
| ▲ Swipe the card in the channel △ Disabled by default: card swiping in the channel (induction infrared area) is invalid △Allow: Card verification is allowed in the channel. |
||||
| ▲Whether the trailing and reversing are blocked by closing the door △Do not close the gate: the reverse/trailing (A swipe card, B pass) will not close the gate △Close the gate first and then open the gate: close the gate first for reverse/trailing traffic, and then open the gate again after closing △Do not open the gate after closing the gate: the reverse/trailing traffic will close the gate, and the gate will not be opened again after closing |
||||
| ▲Fire linkage △Normally open mode: the gate remains open △ Normally closed mode: the gate remains closed |
||||
| ▲Passage Mode △Bidirectional passage,swiping card bi-directionally for people flow. △Bidirectional free passage, no credit card verification is required. △Single directional passage, Single directional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes. △Single directional free passage, Single directional (A) free passage, and reverse directional passing (B) require a swiping card verification. △Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state. |
||||
Dimension Drawing
Projects
Application:
Suitable for indoor pedestrian passage places;
office buildings
hotels
residential quarters
government halls
sports venues
convention and exhibition centers;
Our Barrier Turnstile Gate product comes with a full range of technical support and services.
We offer 24/7 technical support for our product via phone, email, or online chat. Our team of certified technicians is available to help you troubleshoot any issues you may be having with your Barrier Turnstile Gate, and our support team is always available to answer any questions you may have.
In addition to our technical support, we also provide installation and maintenance services for our Barrier Turnstile Gate. Our technicians will come to your site and install the product, as well as provide any ongoing maintenance you may need.
We are dedicated to providing the best technical support and services for our Barrier Turnstile Gate product. If you ever have any questions or issues, please do not hesitate to contact us.
