Product Details
Place of Origin: China
Brand Name: IRONMAN
Certification: ISO9001; CE; FCC
Model Number: IM.P508
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: carton packing
Delivery Time: 8-15 work days
Payment Terms: L/C, T/T
Supply Ability: 2000 pc per/month
Name: |
Speedgate Turnstile |
Housing: |
AISI SUS304 1.5MM |
Application: |
Factories, Office Building, Hotel |
Basic Function: |
Anti-interference |
Basic Function ●Voice Broadcast:it Has The Function Of Entering And Opening The Gate / Exiting The G: |
Passage Mode |
Input Voltage: |
AC220V±10% ,50Hz |
Closing Time: |
2s |
Color: |
Silver |
Frequency: |
50/60Hz |
Power Supply: |
AC110V/220V, 50/60Hz |
Protection Grade: |
IP54 |
Speed: |
30People/Minute |
Type: |
One Way,single Core & Double Core |
Weight: |
80kg |
Name: |
Speedgate Turnstile |
Housing: |
AISI SUS304 1.5MM |
Application: |
Factories, Office Building, Hotel |
Basic Function: |
Anti-interference |
Basic Function ●Voice Broadcast:it Has The Function Of Entering And Opening The Gate / Exiting The G: |
Passage Mode |
Input Voltage: |
AC220V±10% ,50Hz |
Closing Time: |
2s |
Color: |
Silver |
Frequency: |
50/60Hz |
Power Supply: |
AC110V/220V, 50/60Hz |
Protection Grade: |
IP54 |
Speed: |
30People/Minute |
Type: |
One Way,single Core & Double Core |
Weight: |
80kg |

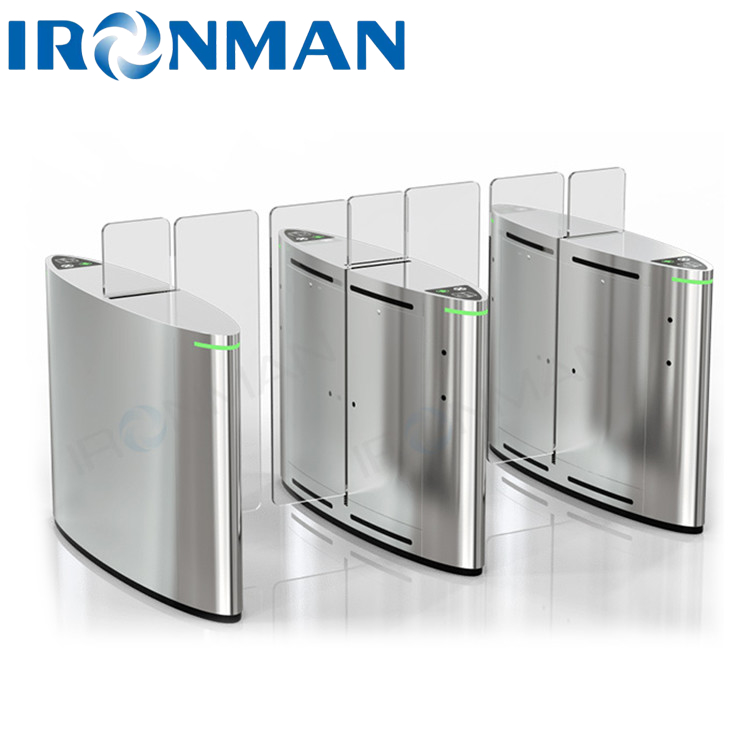

Half Height Speed Gate Turnstile Factory Security Rfid Card Reader Glass Turnstile Gate
Product Specifications of IM.P508 Sliding Gate Turnstile |
||||
| Product Parameters | Dimensions | 1400*335*980MM | Housing Material: | Housing:AISI SUS304 1.5MM Top Cover:AISI SUS304 2.0MM Bottom:Corrosion Resistant Electrolytic Plate baking paint 1.5MM |
| Wing Material: | Transparent tempered glass；T=10MM | Surface: | Housing:original color hairline Stainless Steel Bottom: black sand paint |
|
| Product Configuration: | Single Channel Standard:Single core chassis 2 set/turnstile gate 2 set/control board (master/slave)/Servo movement 2 sets/infrared beams 8 pairs/power supply one set/ optional:Access control system / card swiping module / QR code module / face recognition equipment |
|||
| Technical Parameter | ◆Housing Material:AISI SUS304 1.5MM;Top Cover:AISI SUS304 2.0MM ◆Input voltage: AC220V±10% ,50Hz ◆Opening method:RS485/RS232/IO ◆EMC Standard:Antistatic level 3,Air discharge 15KV ◆Lightning Protection:2KV ◆Motor: servo motor,High precision clutch movement ◆Working temperature:-20℃～75℃ ◆Relative humidity:0～90%(non-condensing) ◆Opening speed:＜0.5S(aujustable) ◆Passing time:Swipe the traffic card time:10S(If no one passes within 10S: the gate closes automatically, and the time can be adjusted as needed) |
|||
| Function Psarameter | Basic Function | ●Voice broadcast:it has the function of entering and opening the gate / exiting the gate / breaking in voice / trailing voice / stop voice broadcasting function | ||
| ●Intellihrnt linkage alarm function:including sound and light alarms of break-in and reverse pass,which can be linked with other alarm monitoring equipment | ||||
| ●Anti-interference:It can limit the abnormality of the gate caused electromagnetic and other external factors | ||||
| ●Traffic mode setting:One-way traffic, two-way traffic, free traffic, etc. can be set through the buttons on the main control panel | ||||
| ●Anti tailing: prevent the unauthorized situation of too many people at one time. | ||||
| ●Anti pinch function:When the gate is in the process of closing, the gate will stop closing after detecting the anti-pinch signal | ||||
| ●Automatic reset: after opening the gate, if the user does not pass within the specified time, the system will automatically cancel the user's permission to pass this time; The default is 10 seconds, and the traffic time can be set through the switch | ||||
| ●Access control: External port can connect a variety of biometric devices | ||||
| ●Power off and opening:switch off after power off, and the switch opening direction can be set | ||||
| ●Fault detection:Control board can support fault type detection,Assist in analyzing the causes of faults and handling faults and abnormalities. | ||||
| ●Passing indication: with passing status indicator; It can also set the alarm function of exceeding the stay time in the channel | ||||
| Extension Function | ▲Voice broadcast, expandable voice module, and volume adjustment | |||
| ▲Opening / closing delay, set the delay opening time after the gate turnstile receives the opening signal/set the delay closing time after pedestrians pass, the default is 0 seconds | ||||
| ▲Card swiping in the channel △Default forbidden: card swiping in the channel (inductive infrared area) is invalid △Permission:card swiping verification is allowed in the channel |
||||
| ▲Whether the trailing and reversing are blocked by closing the door △The gate Closed: the reverse/trailing (A swipe card, B pass) will not close the gate △Close the gate first and then open the gate: close the gate first for reverse/trailing traffic, and then open the gate again after closing △Do not open the gate after closing the gate: the reverse/trailing traffic will close the gate, and the gate will not be opened again after closing |
||||
| ▲Fire linkage △Normally open mode: the gate remains open; △ Normally closed mode: the gate remains closed |
||||
| ▲System language function △Chinese: The system can set the Chinese interface △English: The system can set the English interface |
||||
| ▲Passage Mode △Bidirectional passage,swiping card bi-directionally for people flow. △Bidirectional free passage, no credit card verification is required. △Unidirectional passage, unidirectional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes. △Unidirectional free passage, unidirectional (A) free passage, and reverse directional passing (B) require a swiping card verification. △Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state. |
||||
Dimension Drawing
Application
Residential quarters
high-end factory parks
higher schools
hospitals
Suitable for indoor pedestrian passage places;
office buildings
hotels
enterprises and institutions
government halls
sports venues
convention and exhibition centers;
Projects
The Ironman IM.P508 Sliding Gate Turnstile is a high-quality and durable indoor turnstile gate designed for entrance control and security. Made in China, this product boasts a unique and sleek design that is perfect for any indoor setting. Whether it's for commercial buildings, offices, or public facilities, the Ironman Sliding Gate Turnstile provides reliable and efficient access control system.
With its advanced technology, this barrier gate offers both single direction and bi-directional passage, making it suitable for different types of entrances. It can be easily integrated into any existing access control system, adding an extra layer of security and monitoring for the entrance.
The Ironman Sliding Gate Turnstile is equipped with a 2KV alarm function, providing an audible and visible warning in case of any unauthorized access or attempted forced entry. This feature ensures maximum security and peace of mind for the users.
