Product Details
Place of Origin: china
Brand Name: Tiejun Turnstile
Certification: ISO9001
Model Number: TDH-S103
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: carton packing
Delivery Time: 8-15 work days
Payment Terms: L/C, T/T
Supply Ability: 2000 pc per/month
Name: |
Access Control Barrier Gate Turnstile |
Application: |
Office / School / Park |
Power Supply Voltage: |
AC220V±10V |
Channel Width: |
550~600MM |
Brake Rod Material: |
Stainless Steel SUS304 |
Function: |
Anti-interference , Anti-collision Function |
Name: |
Access Control Barrier Gate Turnstile |
Application: |
Office / School / Park |
Power Supply Voltage: |
AC220V±10V |
Channel Width: |
550~600MM |
Brake Rod Material: |
Stainless Steel SUS304 |
Function: |
Anti-interference , Anti-collision Function |

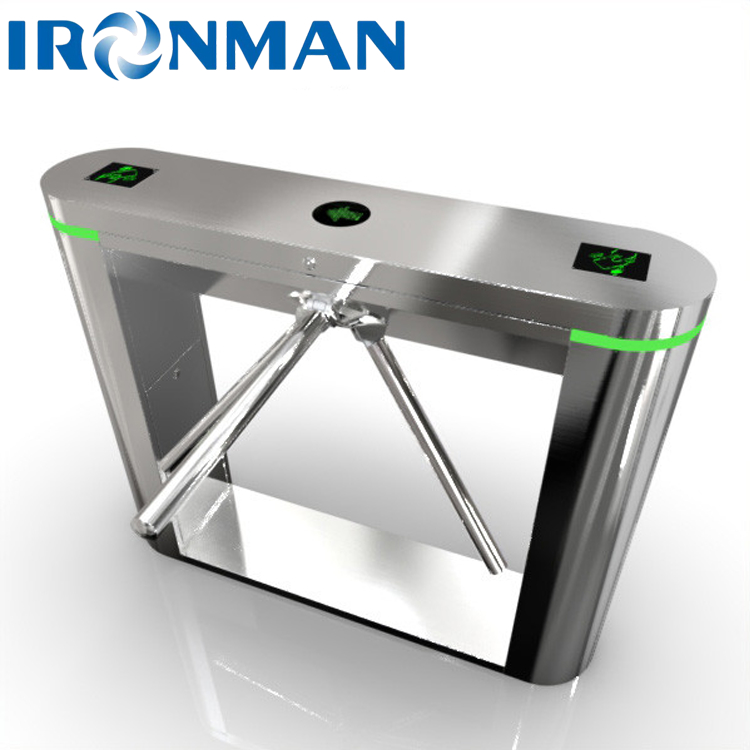

| Circular Three Tripod Turnstile Gate <TDH-S103> Product Specifications | ||||
| Product Icon | Document Number: | |||
| Edition: | A/0 | |||
| Revision Time: | ||||
| Revised By: | ||||
| Product Parameters | Dimensions: | Length 1200*Width 260*Height 980mm | Box Material: | Box: Stainless Steel SUS304 Foot 1.0mm Upper Cover: Stainless Steel SUS304 Foot 1.2mm |
| Brake Rod Material: |
Stainless steel SUS304 | Channel Width: | 550~600MM | |
| Technical Parameter | ◆Box material: Austenitic stainless steel SUS304 ◆Internal structure: frame structure/standard stainless steel shell; ◆Power supply voltage: AC220V±10V ◆Service life: more than 5 million times of continuous opening and closing ◆Working environment temperature: -35℃～75℃ ◆Relative humidity: 0～90% (no condensation) ◆Communication interface: switch electrical signal, expandable RS232 serial port ◆The working speed of the turnstile: ≤30 people/min (the memory mode can be turned on) ◆Passing time: swiping card travel time: 10S (if no one passes within 10S: the gate will automatically close, and the time can be adjusted according to needs) |
|||
| Function Parameters | Basic Function | ●Traffic indication function: LED indication board is installed in the conspicuous part of the housing frame to remind pedestrians the passage status and passage direction of the turnstile. | ||
| ●Anti-illegal break-in function: When the swipe card is invalid, no card swipe or passage is prohibited, forcing the push rod will be regarded as illegal break-in, and the system will automatically alarm and lock the brake rod (so that it cannot be pushed). | ||||
| ●Access control: The external port can connect a variety of biometric devices | ||||
| ●Automatic drop bar function: when the power is cut off, the brake bar that acts as a barrier will drop automatically, which is convenient for crowd evacuation and meets fire protection requirements. | ||||
| ●Anti-collision function: When the brake lever is locked, it cannot be pushed by external force, and it can withstand the collision force within a safe range. | ||||
| ●Anti-interference: It can limit the abnormality of the gate caused by external factors such as electromagnetic | ||||
| Expanding Function | ▲Intelligent linkage alarm: including illegal intrusion, reverse traffic and other alarms, it can be linked with other alarm monitoring equipment, and can be in the form of sound and light. If a flash alarm is required, a luminous alarm must be added to the housing frame. | |||
| ▲Voice broadcast, expandable voice module, and volume adjustment | ||||
| ▲Open/close delay, set the delay opening time after the gate receives the opening signal/set the delay closing time after pedestrians pass, the default is 0 seconds | ||||
| ▲Fire linkage △Normally open mode: the gate remains open △Normally closed mode: the gate remains closed |
||||
| ▲Passage Mode △Bidirectional passage,swiping card bi-directionally for people flow. △Bidirectional free passage, no credit card verification is required. △Single directional passage, Single directional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes. △Single directional free passage, Single directional (A) free passage, and reverse directional passing (B) require a swiping card verification. △Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state. |
||||
Application:
residential quarters
high-end factory parks
higher schools
hospitals
Suitable for indoor pedestrian passage places;
office buildings
hotels
enterprises and institutions
government halls
sports venues
convention and exhibition centers;
