Product Details
Place of Origin: China
Brand Name: IRONMAN
Certification: ISO9001； FCC; CE
Model Number: IM.Y309
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: Carton packing
Delivery Time: 8-15 work days
Payment Terms: L/C, T/T
Supply Ability: 2000 pc per/month
Name: |
Turnstile Security Doors |
Application: |
Airport, School, Apartment, Office, Park |
Power Supply Voltage: |
1200*280*980 |
Brake Rod Material: |
Stainless Steel SUS304 |
Input Voltage: |
AC110V±10% , 50Hz |
Material: |
304 Stainless Steel |
Power Supply: |
AC100V-240V |
Name: |
Turnstile Security Doors |
Application: |
Airport, School, Apartment, Office, Park |
Power Supply Voltage: |
1200*280*980 |
Brake Rod Material: |
Stainless Steel SUS304 |
Input Voltage: |
AC110V±10% , 50Hz |
Material: |
304 Stainless Steel |
Power Supply: |
AC100V-240V |

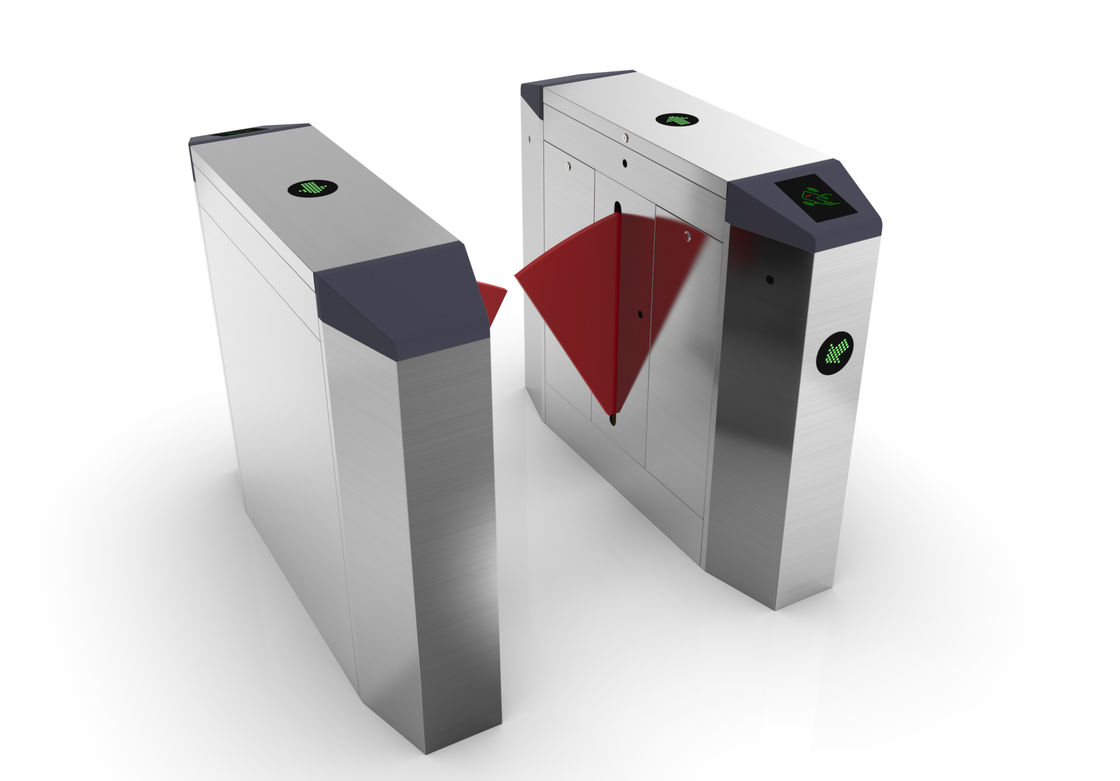

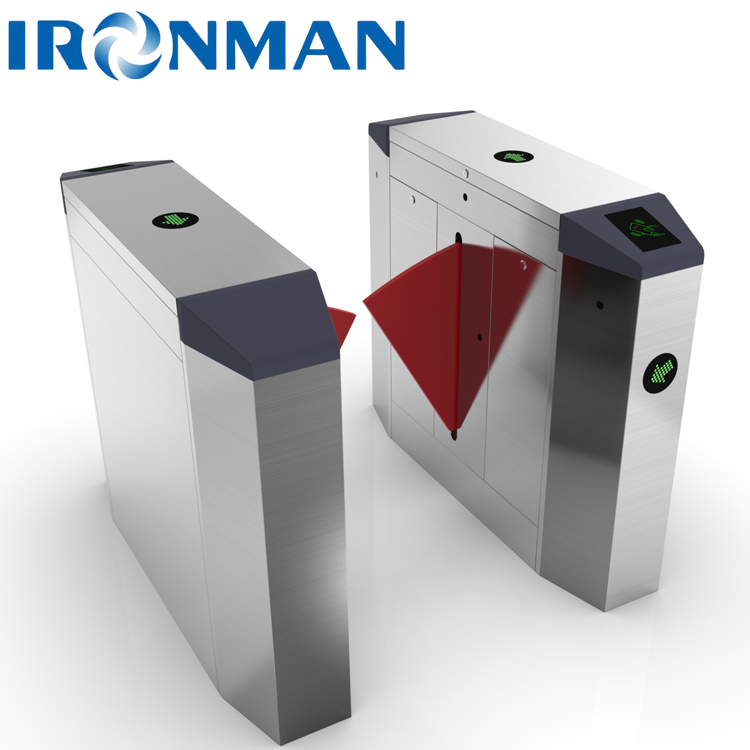

Auto Flap Barrier Turnstile Access Control Automatic System Turnstile
| Product Parameters | Dimensions | 1200*280*980mm | Housing Material: | Housing: SUS304 0.8MM Top Cover: SUS304 1.2MM |
| Wing Arm material: | 15MM Acrylic wing board | Channel width: | 550MM | |
| Technical Parameters | ◆Housing Material: SUS304 ◆Internal structure: standard stainless steel shell;outdoor plastic module PC material (PC 10 years warranty) ◆Power Voltage: AC220V±10V ◆Drive motor: DC brushless motor(24~36VDC) ◆Movement structure: full-height direct-drive movement, fixed with upper and lower screws, firmly bearing force; high-precision movement and motor direct drive, higher precision, faster opening and closing speed, longer service life (patented product); ◆Service life: 5,000,000 times ◆Infrared sensor: 3 pairs (can support 5 pairs of configuration) ◆Working temperature:-35℃～75℃ ◆Relative humidity:0～90%(non-condensing) ◆Communication interface: RS232 serial port ◆Communication protocol: MODBUS protocol ◆Turnstile working speed: 45~50 people/min; double-flying wing configuration ≤ 30 people/min (memory mode can be turned on) ◆Passing time: swiping card travel time: 10S (if no one passes within 10S: the gate will automatically close, and the time can be adjusted according to needs) | |||
| Function | Basic Function | ●Alarm function: with sound and light alarm function | ||
| ●Anti-interference:It can limit the abnormality of the gate caused electromagnetic and other external factors | ||||
| ●Traffic mode setting:One-way, two-way, free traffic, etc. can be set through the buttons on the main control panel | ||||
| ●Anti tailing: prevent the unauthorized situation of too many people at same time. | ||||
| ●Anti pinch function:When the gate is in the process of closing, the gate will stop closing after detecting the anti-pinch signal | ||||
| ●Automatic reset: after opening the gate, if the user does not pass within the specified time, the system will automatically cancel the user's permission to pass this time; The default is 10 seconds, and the traffic time can be set through the switch | ||||
| ●Access control: External port can connect a variety of biometric devices | ||||
| ●Power off and opening:switch off after power off, and the switch opening direction can be set | ||||
| ●Fault detection:Control board can support fault type detection,Assist in analyzing the causes of faults and handling faults and abnormalities. | ||||
| ●Passing indication: with passing status indicator; It can also set the alarm function of exceeding the stay time in the channel | ||||
| Extension Function | ▲ Passing Mode △ Normal: normal pedestrian passing mode △ Passing: automatic vehicle / electric vehicle / motorcycle passing mode | |||
| ▲Opening / closing delay, set the delay opening time after the gate turnstile receives the opening signal/set the delay closing time after pedestrians pass, the default is 0 seconds | ||||
| ▲Card swiping in the channel △Default forbidden: card swiping in the channel (inductive infrared area) is invalid △Permission:card swiping verification is allowed in the channel | ||||
| ▲Whether the trailing and reversing are blocked by closing the door △The gate Closed: the reverse/trailing (A swipe card, B pass) will not close the gate △Close the gate first and then open the gate: close the gate first for reverse/trailing traffic, and then open the gate again after closing △Do not open the gate after closing the gate: the reverse/trailing traffic will close the gate, and the gate will not be opened again after closing | ||||
| ▲Fire linkage △Normally open mode: the gate remains open; △ Normally closed mode: the gate remains closed | ||||
| ▲System language function △Chinese: The system can set the Chinese interface △English: The system can set the English interface | ||||
| ▲Passage Mode △Bidirectional passage,swiping card bi-directionally for people flow. △Bidirectional free passage, no credit card verification is required. △Single directional passage, Single directional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes. △Single directional free passage, Single directional (A) free passage, and reverse directional passing (B) require a swiping card verification. △Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state. △Passing is prohibited, the two-way card swiping is invalid, and the gate enters the locked state | ||||
Application
Suitable for indoor / outdoor pedestrian passages; such as: scenic spots, parks, playgrounds / primary and secondary schools / colleges / office buildings / hotels / residential quarters / factory parks / hospitals/enterprises and institutions / government halls / sports venues, etc.;
Dimension Drawing
Projects
The IRONMAN Barrier Turnstile Gate is the perfect outdoor access control solution for entry into any building or facility. With its advanced flap barrier gate system, it provides a secure and reliable entry control system to help safeguard against any unauthorized or malicious entry. This intelligent system is designed with a control mode that supports IC/ID/Barcode/Fingerprint, and is equipped with a sleek silver color that can blend in perfectly with any outdoor environment. The advanced automatic system is designed with a humidity of ≤90%RH and a voltage of 110V/220V, making it suitable for any outdoor conditions.
The IRONMAN Barrier Turnstile Gate is the perfect solution for any outdoor entry control system that requires a secure, reliable, and intelligent system. With its advanced flap barrier gate system, IC/ID/Barcode/Fingerprint control mode, and humidity and voltage protection, this system is guaranteed to provide the highest level of security for your facility.
