Product Details
Place of Origin: china
Brand Name: Tiejun Turnstile
Certification: ISO9001
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: carton packing
Delivery Time: 8-15 work days
Payment Terms: L/C, T/T
Supply Ability: 2000 pc per/month
Name: |
Luxury Tickeing Wing Gate Turnstile |
Dimensions: |
1600*300*980MM（Support Customization） |
Application: |
Scenic Spots, Parks, Playgrounds |
Channel Width: |
550MM Or 600MM Support 900MM Double Wing |
Housing Material: |
AISI SUS304 |
Power Voltage: |
AC220V±10 |
Name: |
Luxury Tickeing Wing Gate Turnstile |
Dimensions: |
1600*300*980MM（Support Customization） |
Application: |
Scenic Spots, Parks, Playgrounds |
Channel Width: |
550MM Or 600MM Support 900MM Double Wing |
Housing Material: |
AISI SUS304 |
Power Voltage: |
AC220V±10 |

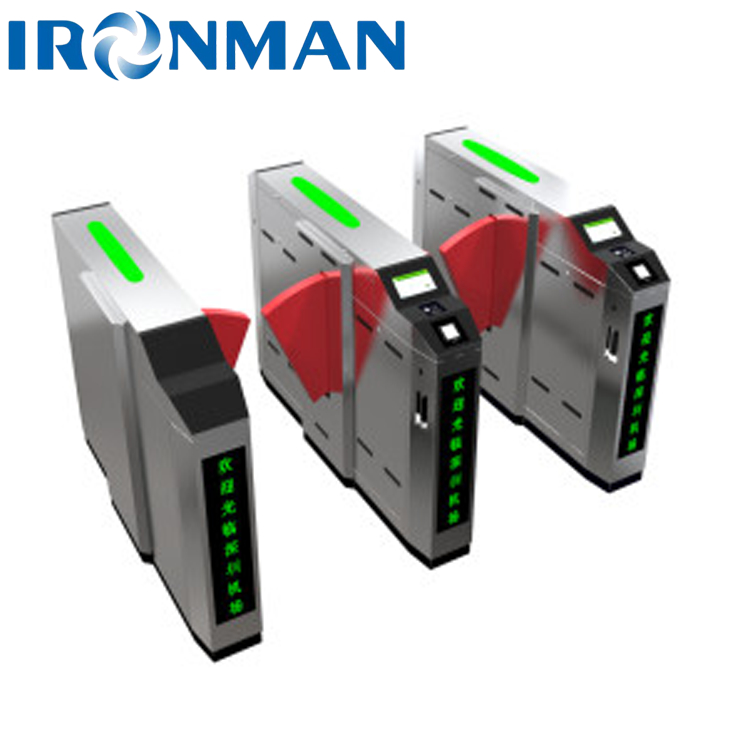

| Product Specifications of Luxury Tickeing Wing Gate Turnstile <TDH-PWY905> |
||||
| Picture of the product | Document Number: | |||
| Version | A/0 | |||
| Revision Time | ||||
| Revised by | ||||
| Product Parameters | Dimensions | 1600*300*980MM(Support customization) | Housing Material: | Housing:AISI SUS304 1.5MM Top Cover:AISI SUS304 2.0MM |
| Wing Arm material: | 15MM Acrylic wing board/soft wing flaps optional Can support double flying wings |
Channel Width: | 550MM or 600MM support 900MM double wing |
|
| Product Drawing: | ||||
| Technical Parameter | ◆Housing Material:AISI SUS304 ◆Internal structure: frame structure/standard stainless steel shell; frosted black paint on both ends; ◆Power Voltage: AC220V±10V ◆Drive motor: DC brushless motor(24~36VDC) ◆Movement structure: full-height direct-drive movement, fixed with upper and lower screws, firmly bearing force; high-precision movement and motor direct drive, higher precision, faster opening and closing speed, longer service life (patented product); double-flying wing aircraft The operation mode of the core (optional) adopts a four-bar linkage structure, which has high stability and low noise.； ◆Service life: 5,000,000 times ◆Infrared sensor: 10 pairs (can support more than 10 pairs of configuration) ◆Working temperature:-35℃～75℃ ◆Relative humidity:0～90%(non-condensing) ◆Communication interface: RS232 serial port ◆Communication protocol: MODBUS protocol ◆Turnstile working speed: 45~50 person/min; double-flying wing configuration ≤ 30 people/min (memory mode can be turned on) ◆Passing time: swiping card travel time: 10S (if no one passes within 10S: the gate will automatically close, and the time can be adjusted according to needs) |
|||
| Function parameter | Basic Function | ●Alarm function: with sound and light alarm function | ||
| ●Anti-interference:It can limit the abnormality of the gate caused electromagnetic and other external factors | ||||
| ●Traffic mode setting:One-way traffic, two-way traffic, free traffic, etc. can be set through the buttons on the main control panel | ||||
| ●Anti tailing: prevent the unauthorized situation of too many people at one time. | ||||
| ●Anti pinch function:When the gate is in the process of closing, the gate will stop closing after detecting the anti-pinch signal | ||||
| ●Automatic reset: after opening the gate, if the user does not pass within the specified time, the system will automatically cancel the user's permission to pass this time; The default is 10 seconds, and the traffic time can be set through the switch | ||||
| ●Access control: External port can connect a variety of biometric devices | ||||
| ●Power off and opening:switch off after power off, and the switch opening direction can be set | ||||
| ●Fault detection:Control board can support fault type detection,Assist in analyzing the causes of faults and handling faults and abnormalities. | ||||
| ●Passing indication: with passing status indicator; It can also set the alarm function of exceeding the stay time in the channel | ||||
| Extension Function | ▲ Passing Mode △ Normal: normal pedestrian passing mode △ Passing: automatic vehicle / electric vehicle / motorcycle passing mode |
|||
| ▲Opening / closing delay, set the delay opening time after the gate turnstile receives the opening signal/set the delay closing time after pedestrians pass, the default is 0 seconds | ||||
| ▲Card swiping in the channel △Default forbidden: card swiping in the channel (inductive infrared area) is invalid △Permission:card swiping verification is allowed in the channel |
||||
| ▲Whether the trailing and reversing are blocked by closing the door △The gate Closed: the reverse/trailing (A swipe card, B pass) will not close the gate △Close the gate first and then open the gate: close the gate first for reverse/trailing traffic, and then open the gate again after closing △Do not open the gate after closing the gate: the reverse/trailing traffic will close the gate, and the gate will not be opened again after closing |
||||
| ▲Fire linkage △Normally open mode: the gate remains open; △ Normally closed mode: the gate remains closed |
||||
| ▲System language function △Chinese: The system can set the Chinese interface △English: The system can set the English interface |
||||
| ▲Passing mode △ Two-way traffic, two-way card swiping is normal △ Two-way free passage, two-way free passage, no card verification required. △ One-way traffic, one-way (A) card swipe, gate open, normal pass, reverse (B) card swipe invalid, gate closed △ One-way free passage, one-way (A) free passage, reverse (B) card verification. △Passing is prohibited, the two-way card swiping is invalid, and the gate enters the locked state |
||||
Product Introduction:
The wing gate is mainly used for pedestrian passage management; it has the characteristics of quick opening, safety and convenience, and is an ideal management and drainage device for pedestrians with high frequency access. It is suitable for one-way or two-way control of people flow. It is an upgraded version of three roller gates and swing gates. The appearance is fashionable. Generous, fast speed. It has been widely used in airports, subway stations, stations, terminals, attractions, parks, student dormitories, and pedestrian walkways.
Wing gate shape: The appearance box can be divided into bridge type octagonal inclined wing gate, bridge type ship-shaped wing gate, bridge type trapezoidal wing gate, double-core wing gate. Wing gates can be divided into other materials such as soft wings and acrylic.
