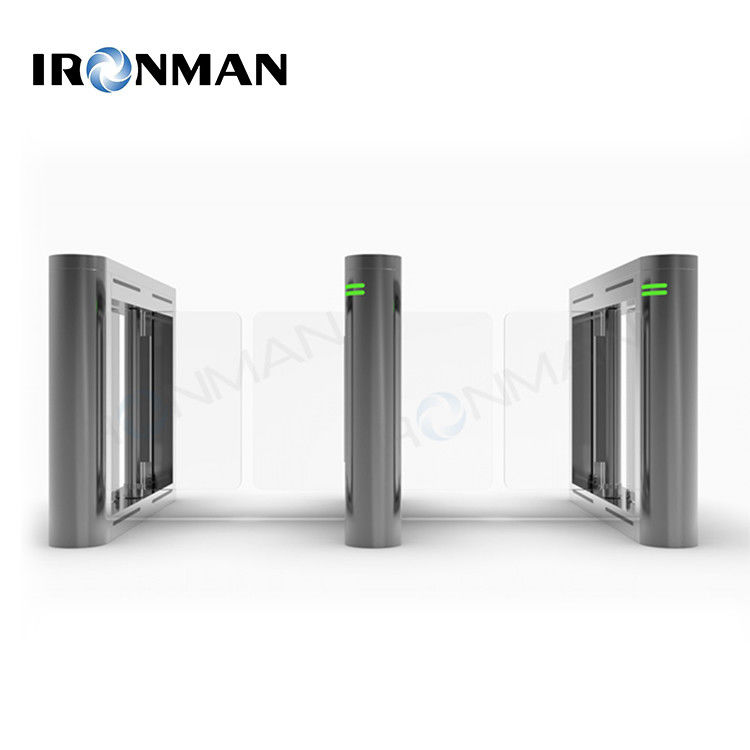

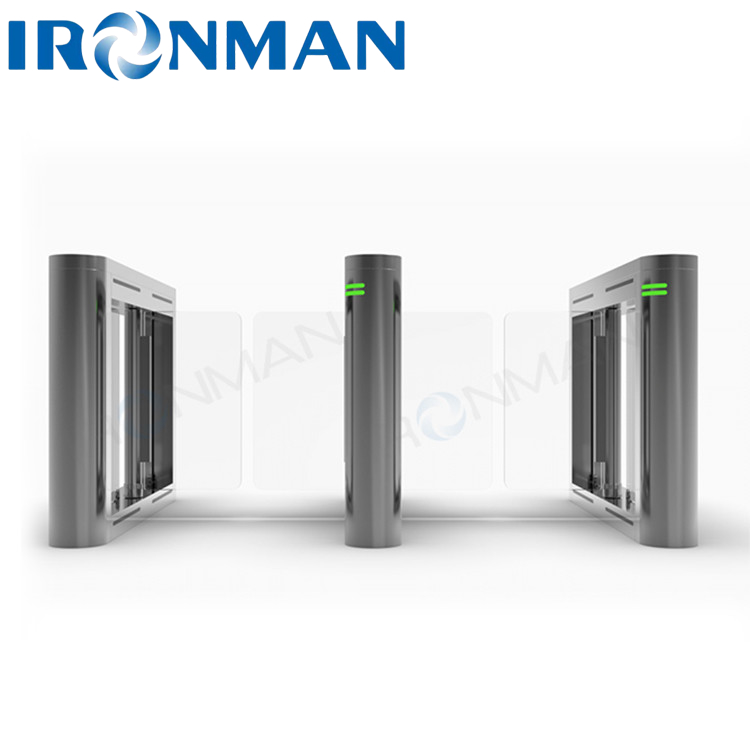

Security Integrated Speed Gates Comprehensive Access Management

Name: Security Integrated Speed Gates Comprehensive Access Management
Brand: Shenzhen Ironman Intelligent Technology Co., Ltd.
SKU: IM.ST608
Price: Negotiable USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Ironman
Certification:	CE; FCC; ISO9001
Model Number:	IM.ST608

Detail Information

Place of Origin:

China

Brand Name:

Ironman

Certification:

CE; FCC; ISO9001

Model Number:

IM.ST608

Name:

Speed Gate Turnstile

Material:

SUS304 Stainless Steel

Control Input:

Dry Contact/relay Signal

Working Environment:

Indoor/outdoor ; Working Temperature：－30℃～+70℃；

Alarm Function:

With Sound And Light Alarm Function

Application:

Office Buildings / Hotels

Dimensions:

1500*200*1000mm

Drive Motor:

Servo Motor

Infrare Detection Sensor:

8 Pairs

High Precision Clutch Movement,MCBF:

12 Million Times

Place Of Origin Guangdong, China Brand Name Ironman Model Number IM.ST608 Dimensions 1500*200*1000mm:

≤535mm

Channel Width:

≤1120mm

Traffic Speed:

≤ 45 People/min

Highlight:

High Light

Highlight:

Comprehensive Access Management Speed Gates

Integrated Speed Gates

Security Speed Gate Turnstile

Trading Information

Minimum Order Quantity:

1pc

Price:

Negotiation

Packaging Details:

carton packing

Delivery Time:

8-15 work days

Payment Terms:

L/C, T/T

Supply Ability:

2000 pc per/month

Product Description

Integrated Speed Gates with Security Features: Comprehensive Access Management

The Speed Gate, a highly advanced pedestrian access control system, offers an efficient and secure way to manage the flow of people in various environments, such as corporate offices, transportation terminals, and public facilities. Designed with the latest technology, the Speed Gate ensures smooth and rapid passage for authorized individuals while effectively deterring unauthorized access. The Speed Gate features state-of-the-art sensors and recognition systems that can accurately identify and authenticate users in real-time. Whether it's through biometric identification, RFID cards, or other secure means, the Speed Gate ensures a seamless experience for authorized users. The system's rapid response time and precise movement mechanisms allow for quick and efficient passage, minimizing waiting time and improving overall traffic flow.

Swing Barrier Gate (IM.ST608) Product Specifications
Product Parameters	Dimensions:	1500* 200*1000mm	Box Material:	1.5mm thickness SPCC
Product Parameters	Swing Arm Material:	10MM Acrylic (Stainless steel elbow is optional)	Channel Width:	≤1120mm
Function Parameters	◆Turnstile Body: 1.5mm thickness SPCC ◆Work Voltage: AC110~220V±10V ◆Driving Motor: servo motor ◆MCBF: Continuous opening and closing for more than 5 million times ◆Infrared Sensors: DFIR 8 pecs; ◆Working Environment Temperature: -35℃～75℃ ◆Relative Humidity: 0～90% (No condensation) ◆Communication Interface: RS232/RS485 serial port ◆Communication Protocol: MODBUS protocol ◆Working Speed of the Gate: ≤45 persons/min (The memory mode can be turned on) ◆Passing Time: passing time by swiping card: 10S (If no one passes within 10S: the gate will automatically close, and the time can be adjusted according to needs)
Basic Functions	●Alarm Function: Sound and light alarm function. ●Anti-interference: To prevent the gate abnormal caused by electromagnetic and other external causes. ●Passage Mode Setting: Unidirectional passage, bidirectional passage and free passage can be set through the main control board keys. ●Anti-tailgating: To prevent the unpermitted situation of passing too many people at once. ● Anti-clamp Function: When the brake is in the process of closing, the brake will stop closing after detecting the anti-clamp signal. ●Self-reset. Pass right will be canceled if people do not go through within a set time, the default time is 10s, and the passage time can be set by switch. ●Access Control: The external port can be connected to a variety of biometric identification devices. ●The gate opens after power failure. ●Fault Detection: The control board can support fault type detection, fault cause analysis, and fault troubleshooting. ●Passing Indicator: Traffic status indicator light; the alarm function of overstay time in the channel can be set.

Extensible Functions:
▲Passing Mode △Normal: Normal passing mode. △Passing: automatic car/electric car/motorcycle passing mode.
▲Switch on/Switch off Delay: set the delay of switch off after the switch machine receives the switch off signal/set the delay of switch off after the pedestrian passes. The default value is 0 seconds.
▲Swipe Card in the Channel △Default Disable: Card swiping in the channel (in the inductive infrared region) is invalid △Allow: Swipe card verification is allowed in the channel.
▲ Whether the Trailing and Reversing are Blocked by Closing the Door △Not close: Reverse passage /tailgating (A swips the card, B passes) will not close the gate. △Close the gate and then open the gate: Reverse/trailing passage will close the gate first, and open the gate again after closing. △Not open after closing: reverse/trailing passage will close the gate, and will not open again after closing the gate.
▲Fire Linkage △Normally open mode: the gate maintains the open state; △ Normally closed mode: the gate maintains the switch state.
▲Passage Mode △Bidirectional passage,swiping card bi-directionally for people flow. △Bidirectional free passage, no credit card verification is required. △Unidirectional passage, unidirectional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes. △Unidirectional free passage, unidirectional (A) free passage, and reverse directional passing (B) require a swiping card verification. △Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state.
