Product Details
Place of Origin: china
Brand Name: Tiejun Turnstile
Certification: ISO9001
Model Number: TDH-Q802S
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: carton packing
Delivery Time: 8-15 work days
Payment Terms: L/C, T/T
Supply Ability: 2000 pc per/month
Name: |
Construction Turnstiles |
Overall Dimension: |
2300 * 1500 * 2300 Mm |
Length Of Gate Pole: |
500mm |
Application: |
Exhibition, Swimming Hall, Residence Area |
Power Supply Voltage: |
AC220V ± 10%, 50Hz |
Name: |
Construction Turnstiles |
Overall Dimension: |
2300 * 1500 * 2300 Mm |
Length Of Gate Pole: |
500mm |
Application: |
Exhibition, Swimming Hall, Residence Area |
Power Supply Voltage: |
AC220V ± 10%, 50Hz |

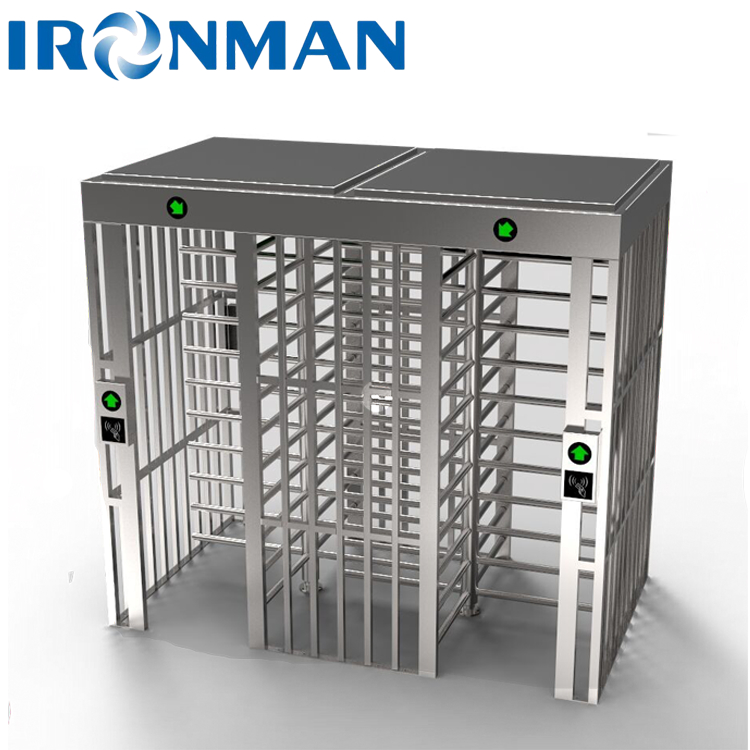

304 Stainless Steel Turnstile Full Height Brushed Surface Treatment With Double Lane
Product technical parameters
1. Overall dimension: 2300 * 1500 * 2300 mm;
2. Material: 304 stainless steel, designed according to the international specifications for moisture-proof, dust-proof and waterproof;
3. Power supply voltage: AC220V ± 10%, 50Hz;
4. Working environment temperature: - 30 ℃~+70 ℃;
Relative humidity: 95% relative humidity, non condensing;
5. Input interface: 12V level signal or 12V pulse signal with pulse width ＞ 100ms;
6. Driving current: ＞ 200mA;
7. Communication interface: RS485 electrical standard;
8. Length of gate pole: 500mm;
9. Channel width: 550-600mm;
10. Traffic speed: ≤ 30 persons/min;
11. Structure: frame structure/standard stainless steel shell;
12. Swing rod steering: support one-way and two-way (optional);
13. Working environment: indoor and outdoor.
Product Description
The equipment runs smoothly, with low noise, high efficiency, space saving, and can effectively reduce security personnel. It is suitable for high-end office buildings, airports, subway stations and other places with high security requirements.
Application: subway station, hoverport, tourism, sports, exhibition, swimming hall, residence area, enterprise entrance and exit attendance, special access control etc.
