Product Details
Place of Origin: china
Brand Name: Tiejun Turnstile
Model Number: TDH-Q807
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: carton packing
Delivery Time: 8-15 work days
Payment Terms: L/C, T/T
Supply Ability: 2000 pc per/month
Certification: |
ISO,CE,RoHS |
Material: |
SUS304 Or Carbon Steel Powder Coating |
Product Name: |
China High Quality Pedestrian Security Full Height Turnstile |
Power Supply: |
AC220V/110V |
Net Weight: |
200kgs |
Dimension: |
1500*1500*2300 (mm) |
Warranty: |
1 Year |
Passing Speed: |
30-40 Persons/min |
Passage Width: |
<=600mm |
Arm Length: |
600mm~900mm |
Power Consumption: |
40W |
Color: |
Optional,Silver,SSB(US32D)- Stainless Steel Brushed / Powder Coating,Silver White Or Customize |
Size: |
1500*1400*2400mm |
Type: |
Single Core & Double Core |
Pass Width: |
≤650mm |
Housing Material: |
304 Stainless Steel |
Name: |
Full Height Sliding Pedestrian Barrier Gate Turnstile |
Communication Interface: |
RS485(Distance,TCP Distance ≤1200m .,Relay/RS485 |
Gross Weight: |
20kg |
Certification: |
ISO,CE,RoHS |
Material: |
SUS304 Or Carbon Steel Powder Coating |
Product Name: |
China High Quality Pedestrian Security Full Height Turnstile |
Power Supply: |
AC220V/110V |
Net Weight: |
200kgs |
Dimension: |
1500*1500*2300 (mm) |
Warranty: |
1 Year |
Passing Speed: |
30-40 Persons/min |
Passage Width: |
<=600mm |
Arm Length: |
600mm~900mm |
Power Consumption: |
40W |
Color: |
Optional,Silver,SSB(US32D)- Stainless Steel Brushed / Powder Coating,Silver White Or Customize |
Size: |
1500*1400*2400mm |
Type: |
Single Core & Double Core |
Pass Width: |
≤650mm |
Housing Material: |
304 Stainless Steel |
Name: |
Full Height Sliding Pedestrian Barrier Gate Turnstile |
Communication Interface: |
RS485(Distance,TCP Distance ≤1200m .,Relay/RS485 |
Gross Weight: |
20kg |

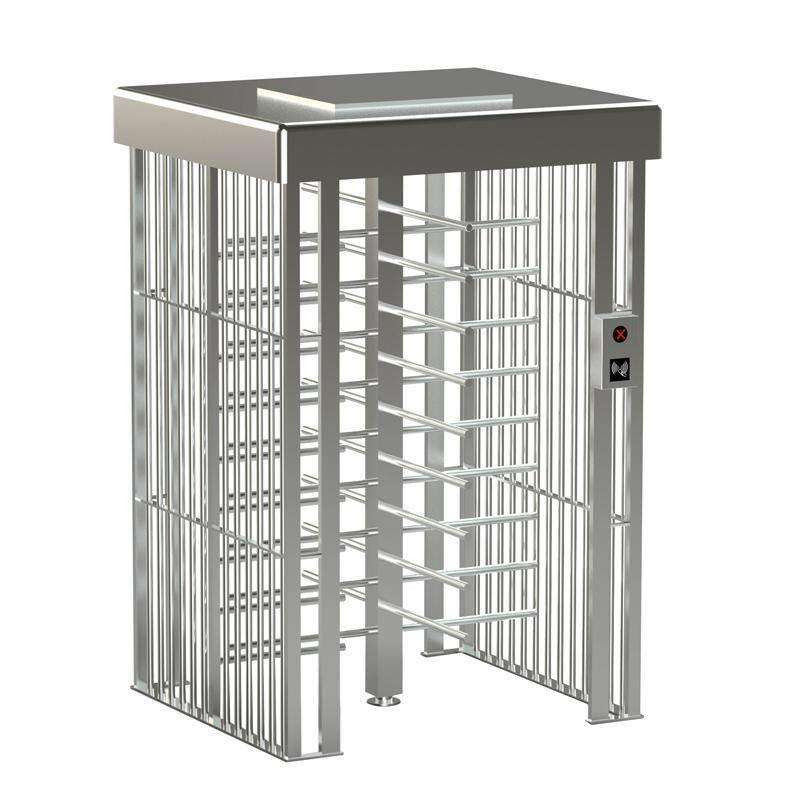

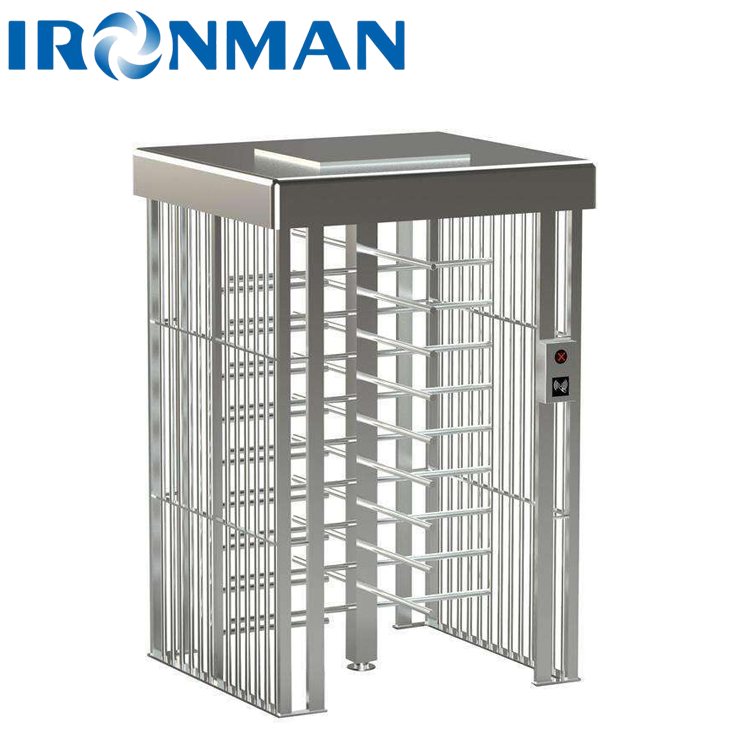

Access Control System Full Height Turnstile Stainless Steel With CE Approval
Product technical parameters
1. Overall dimensions: 1500 * 1460 * 2300mm;
2. Material: 304 stainless steel, designed according to the international specifications for moisture-proof, dust-proof and waterproof;
3. Power supply voltage: AC220V ± 10%, 50Hz;
4. Working environment temperature: - 30 ℃~+70 ℃;
Relative humidity: 95% relative humidity, non condensing;
5. Input interface: 12V level signal or 12V pulse signal with pulse width ＞ 100ms;
6. Driving current: ＞ 200mA;
7. Communication interface: RS485 electrical standard;
8. Length of gate pole: 500mm;
9. Channel width: 550-600mm;
10. Traffic speed: ≤ 30 persons/min;
11. Structure: frame structure/standard stainless steel shell;
12. Swing rod steering: support one-way and two-way (optional);
13. Working environment: indoor and outdoor
Product Application
This model is widely used in bus station, port, subway, factory, mansion, residential area, hotel, company and so on any place that requires a smart flow control.
