Product Details
Place of Origin: China
Brand Name: IRONMAN
Certification: ISO9001; FCC; CE
Model Number: IM.ABST621
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: To be negotiated
Packaging Details: Carton
Delivery Time: 8-15 work days
Payment Terms: L/C, T/T
Supply Ability: 2000 pc per/month
Name: |
Turnstiles For Customs And Airport |
Dimensions: |
2850*200*985MM |
Channel Width: |
≤800mm |
Application: |
Airports, Subways, Customs, Metro Station, Train Station |
Work Voltage:: |
AC110V~220V ± 10V |
Driving Motor: |
Servo Motor (24~36VDC) |
Communication Interface: |
RS485 |
Swing Arm Material: |
Transparent Acrylic; T=10MM |
Box Material: |
Stainless Steel SUS304 |
Name: |
Turnstiles For Customs And Airport |
Dimensions: |
2850*200*985MM |
Channel Width: |
≤800mm |
Application: |
Airports, Subways, Customs, Metro Station, Train Station |
Work Voltage:: |
AC110V~220V ± 10V |
Driving Motor: |
Servo Motor (24~36VDC) |
Communication Interface: |
RS485 |
Swing Arm Material: |
Transparent Acrylic; T=10MM |
Box Material: |
Stainless Steel SUS304 |
Customs AB Gates with Antistatic Protection & Servo Motor/High Precision Clutch Movement

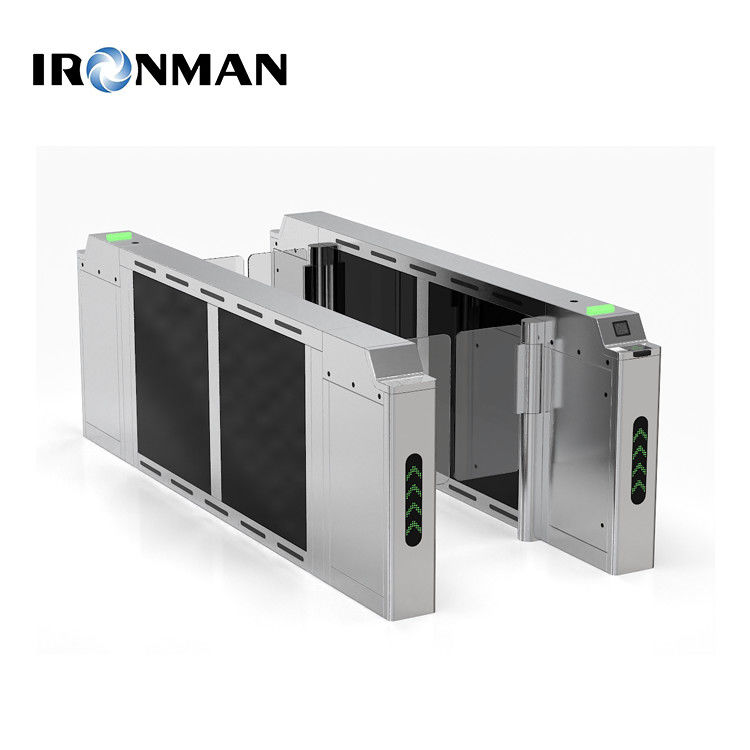

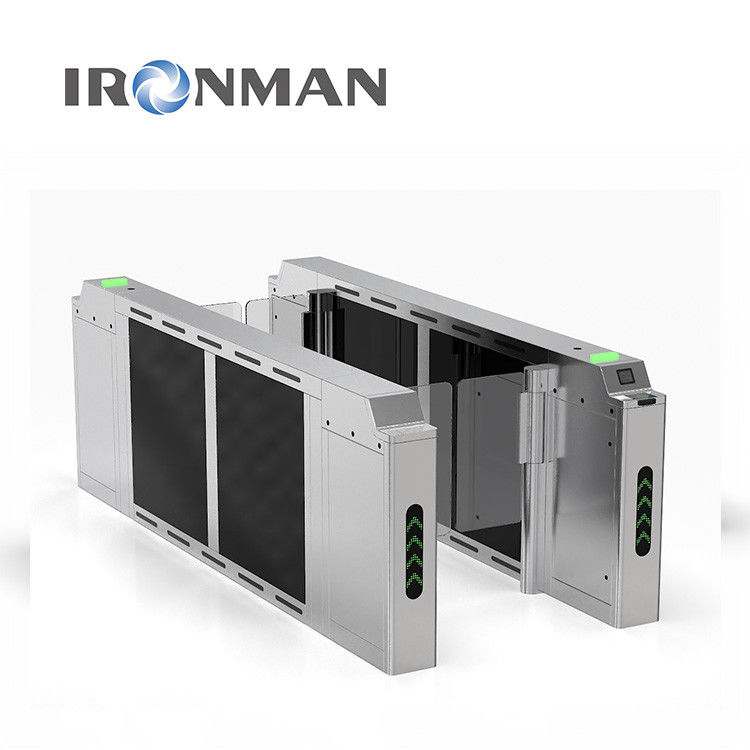

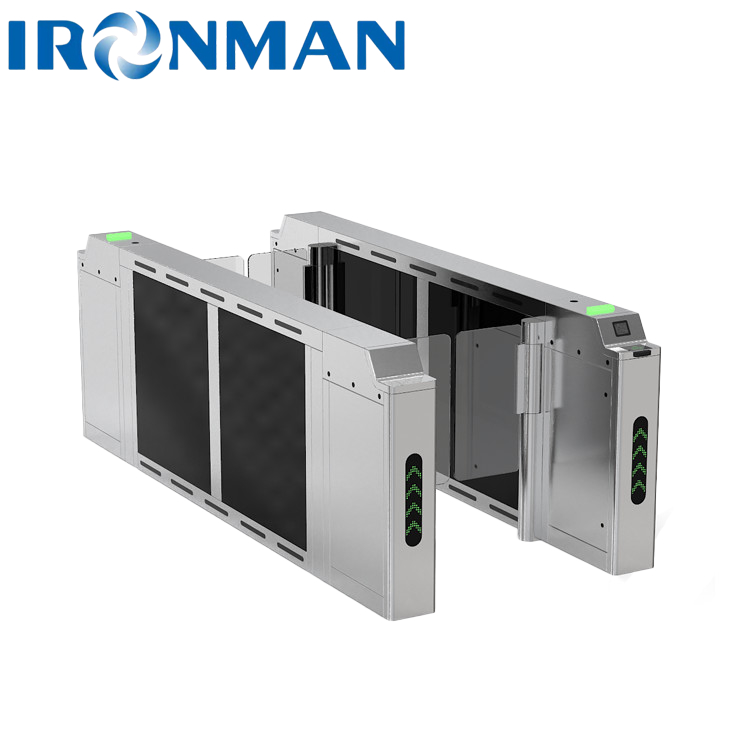

IRONMAN IM.ABST621 SPEED GATE
| Customs AB Speed Gates <IM.ABST621> Product Specifications | ||||
| Product Parameters | Dimensions: | 2850*200*985mm | Box Material: | Box: stainless steel SUS304 2.0 mm |
| Swing Arm Material: | Transparent Acrylic; T=10MM | Channel Width: | ≤800mm | |
| Technical Parameters | ◆Chassis Material: Austenitic stainless steel SUS304 ◆Communication Interface: RS485/RS232/IO ◆EMC Specifications: Antistatic level 3, air discharge 15KV ◆Lightning Protection: 2 kv ◆Driving Motor: Servo motor,high precision clutch movement ◆Working Environment Temperature: -20℃～75℃ ◆Relative Humidity: 0～90% (No condensation) ◆Reacting Time:＜0.5S(Adjustable) ◆Passage Time by swiping card: 10S (if no one passes in 10S: the gate will close automatically, and the time can be adjusted according to needs) |
|||
| Technical parameters | Basic Function | ●Sound Alarm:Intruding sound/ trailing sound/ staying sound alarm function | ||
| ●Intelligent Alarm: Sound and light alarm such as illegal intrusion and reverse passage, which can be linked with other alarm monitoring equipment. |
||||
| ●Anti-interference: To prevent the gate abnormal caused by electromagnetic and other external causes. |
||||
| ●Passage Mode Setting: Unidirectional passage, bidirectional passage and free passage can be set through the main control board keys. | ||||
| ●Anti-tailgating: To prevent the unpermitted situation of passing too many people at once. | ||||
| ●Anti-clamp Function: When the brake is in the process of closing, the brake will stop closing after detecting the anti-clamp signal. | ||||
| ●Self-reset. Pass right will be canceled if people do not go through within a set time, the default time is 10s, and the passage time can be set by switch. | ||||
| ●Access Control: The external port can be connected to a variety of biometric identification devices. | ||||
| ● The gate opens after power failure:the opening direction can be set. | ||||
| ●Fault Detection: The control board can support fault type detection, fault cause analysis, and fault troubleshooting. | ||||
| ●Passing Indicator: Traffic status indicator light; the alarm function of overstay time in the channel can be set. | ||||
| Extensible Functions | ▲Passing Mode △Normal: Normal passing mode. △Passing: automatic car/electric car/motorcycle passing mode. |
|||
| ▲Switch on/Switch off Delay: set the delay of baffle wing close after the machine receives the close signal/set the delay of close after the pedestrian passes. The default value is 0 seconds. | ||||
| ▲Swipe Card in the Channel △Default Disable: Card swiping in the channel (in the inductive infrared region) is invalid △Allow: Swipe card verification is allowed in the channel. |
||||
| ▲ Whether the Trailing and Reversing are Blocked by Closing the Door △Not close: Reverse passage /tailgating (A swips the card, B passes) will not close the gate. △Close the gate and then open the gate: Reverse/trailing passage will close the gate first, and open the gate again after closing. △Not open after closing: reverse/trailing passage will close the gate, and will not open again after closing the gate. |
||||
| ▲Fire Linkage △Normally open mode: the gate maintains the open state; △ Normally close mode: the gate maintains the close state. |
||||
| ▲System Language Function △English: The system can set English interface. |
||||
| ▲Passage Mode △Bidirectional passage,swiping card bi-directionally for people flow. △Bidirectional free passage, no credit card verification is required. △Unidirectional passage, unidirectional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes. △Unidirectional free passage, unidirectional (A) free passage, and reverse directional passing (B) require a swiping card verification. △Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state. |
||||
Product Application
Usually specified used in the metro station, customs, train station, airport and institution where need intelligent access management.
