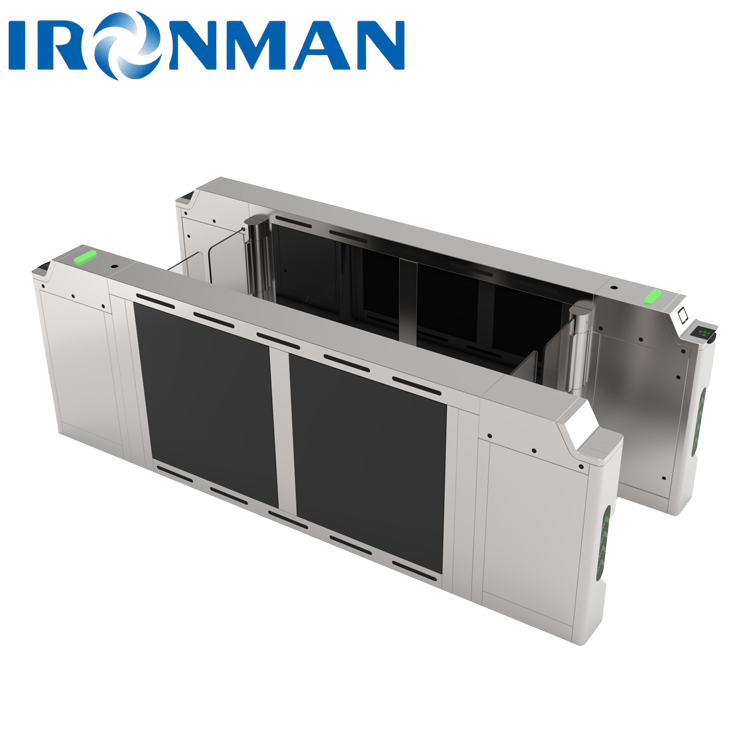

Smart Train Station Turnstile Made of 304 Stainless Steel 2850*200*985mm

Basic Information
Place of Origin: China
Brand Name: IRONMAN
Certification: ISO9001; CE; FCC
Model Number: IM.ABST621
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: carton packing
Delivery Time: 8-15 work days
Payment Terms: L/C, T/T
Supply Ability: 2000 pc per/month
Detail Information
Name: AB Speed Gate Turnstiles Dimensions: 2850*200*985MM
Swing Arm Material: Transparent Acrylic; T=10MM Application: Airports, Subways, Libraries, Office Buildings
Work Voltage:: AC110~220V±10V Driving Motor: DC Brushless Motor(24~36VDC)
Communication Interface: RS232 Serial Port Channel Width: Open
Box Material: Stainless Steel SUS304

Smart Train Station Turnstile


Train Station Turnstile Stainless Steel


Smart Turnstile

Product Description

Smart Train Station Turnstile Stainless Steel 2850*200*985mm With Open Channel

Smart Train Station Turnstile Made of 304 Stainless Steel 2850*200*985mm 0

Smart Train Station Turnstile Made of 304 Stainless Steel 2850*200*985mm 1


Product Parameters Dimensions: 2850*200*985mm Material: Box: stainless steel SUS304  2mm
Swing arm material: Transparent Acrylic; T=10MM Channel width: ≤800mm
Technical Parameters ◆Chassis Material: Sstainless steel SUS304
◆Open Methond: RS485/RS232/IO
◆EMC Specifications: Antistatic level 3,air discharge 15KV
◆Lightning Protection: 2 kv
◆Driving Motor: Servo motor,high precision clutch movement
◆Working Environment Temperature: -20℃~75℃
◆Relative Humidity: 0~90% (No condensation)
◆Reacting Time:<0.5S (Adjustable)
◆Passage Time by swiping card: 10S (if no one passes in 10S: the gate will close automatically, and the time can be adjusted according to needs)
Function  Basic Function ●Voice Alarm: Entering opening gate prompt/leaving opening gate prompt/intruding voice/trailing voice/staying voice alarm function
●Intelligent Linkage Alarm: including sound and light alarm such as illegal intrusion and reverse passage, which can be linked with other alarm monitoring equipment.
●Anti-interference: To prevent the gate abnormal caused by electromagnetic and other external causes.
●Passage Mode Setting: Unidirectional passage, bidirectional passage and free passage can be set through the main control board keys.
●Anti-tailgating: To prevent the unpermitted situation of passing too many people at once.
● Anti-clamp function: When the brake is in the process of closing, the brake will stop closing after detecting the anti-clamp signal.
●Self-reset. Pass right will be canceled if people do not go through within a set time, the default time is 10s, and the passage time can be set by switch.
●Access control: The external port can be connected to a variety of biometric identification devices.
● The Gate Opens after power failure:the opening direction can be set.
●Fault detection: The control board can support fault type detection, fault cause analysis, and fault troubleshooting.
●Passing indicator: Traffic status indicator light; the alarm function of overstay time in the channel can be set.
Extensible Functions ▲Passing Mode
△Normal: Normal passing mode
△Passing: automatic car/electric car/motorcycle passing mode
▲Switch on/switch off delay: set the delay of switch off after the switch machine receives the switch off signal/set the delay of switch off after the pedestrian passes. The default value is 0 seconds
▲Swipe Card in the Channel
△Default Disable: Card swiping in the channel (in the inductive infrared region) is invalid
△Allow: Swipe card verification is allowed in the channel.
▲ Whether the trailing and reversing are blocked by closing the door
△Not close: Reverse passage /tailgating (A swips the card, B passes) will not close the gate.
△Close the gate and then open the gate: Reverse/trailing passage will close the gate first, and open the gate again after closing.
△Not open after closing: reverse/trailing passage will close the gate, and will not open again after closing the gate.
▲Fire Linkage
△Normally open mode: the gate maintains the open state;
△ Normally closed mode: the gate maintains the switch state.
▲System Language Lunction
△ Chinese: The system can set the Chinese interface.
△English: The system can set English interface.
▲Passage Mode
△Bidirectional passage, swiping card bi-directionally for people flow.
△Bidirectional free passage, no credit card verification is required.
△Unidirectional passage, unidirectional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes.
△Unidirectional free passage, unidirectional (A) free passage, and reverse directional passing (B) requires a swiping card verification.
△Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state.


Application: Indoor Speed Gates; Can be used for: airports, subways, libraries, office buildings, theaters, factories, scenic spots, stations, leisure and entertainment venues, etc.
Dimension Drawing
Smart Train Station Turnstile Made of 304 Stainless Steel 2850*200*985mm 2

Support and Services:

Barrier Turnstile Gate Technical Support and Service

We are dedicated to providing you with the highest level of customer service and technical support for your Barrier Turnstile Gate products. Our team of experienced professionals is available to answer any questions you may have and to provide you with the best service possible.

We provide a wide range of support services, including:

  • Installation and maintenance service
  • Troubleshooting and diagnostics
  • Software and hardware upgrades
  • System design and configuration
  • Training and documentation

If you have any questions or need help with yourTurnstile Gate products, please contact us. We look forward to helping you maximize the efficiency and performance of your system.
