Exhibition Flap Barrier Turnstile Anti Interference With Alarm Function

Basic Information
Place of Origin: China
Brand Name: IRONMAN
Certification: ISO9001
Model Number: IM.Y302
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: carton packing
Delivery Time: 8-15 work days
Payment Terms: L/C, T/T
Supply Ability: 2000 pc per/month
Detail Information
Name: Flap Barrier Gate Dimensions: 1400(1200 Optional)P*280*980mm
Application: Residential Quarters/factory Parks Wing Arm Material: 15MM Acrylic Wing Hard/soft Wing Flaps Optional
Power Voltage: AC220V±10V Housing Material: SUS304
Channel Width: 550MM

Exhibition Flap Barrier Turnstile


Flap Barrier Turnstile Anti Interference

Product Description

Exhibition Flap Barrier Turnstile Anti Interference With Alarm Function

IM.Y302 Barrier Turnstile Gate is a secure, anti-trailing and sturdy flap barrier gate that is designed to control and manage access to a wide variety of restricted areas. The gate works well in any environment, as it is designed to withstand humidity levels up to 90% RH and operate on a voltage of either 110V or 220V. Additionally, the gate offers multiple control modes, including IC/ID/Barcode/Fingerprint that can be easily customized to meet the needs of any particular business or organization. With its reliable and durable design, Barrier Turnstile Gate is the perfect solution for any secure access control system.

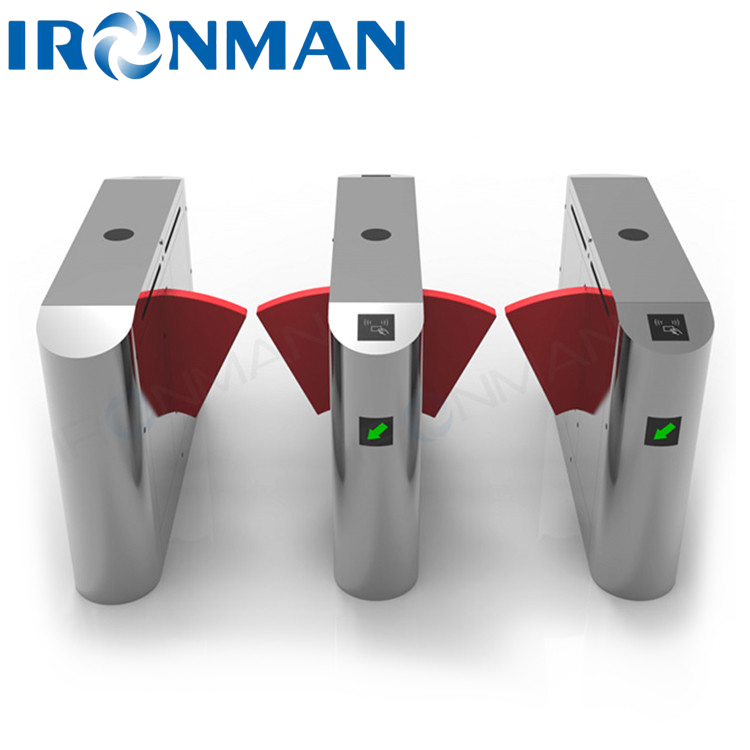

Exhibition Flap Barrier Turnstile Anti Interference With Alarm Function 0Exhibition Flap Barrier Turnstile Anti Interference With Alarm Function 1


Product Parameters


Product Parameters Dimensions  1400(1200)*280*980mm Housing Material: Housing: SUS304 1.0MM
Top Cover: SUS304 1.2MM
Arm material: 15MM Acrylic wing board/soft wing flaps optional Channel width: 550MM
Technical Parameter ◆Housing Material: SUS304
◆Internal structure: standard stainless steel shell;
◆Power Voltage: AC220V±10V
◆Drive motor: DC brushless motor(24~36VDC)
◆Movement structure: full-height direct-drive movement, fixed with upper and lower screws, firmly bearing force; high-precision movement and motor direct drive, higher precision, faster opening and closing speed, longer service life (patented product); stability and low noise.;
◆Service life: 5,000,000 times
◆Infrared sensor: 5 pairs
◆Working temperature:-35℃~75℃
◆Relative humidity:0~90%(non-condensing)
◆Communication interface: RS232 serial port
◆Communication protocol: MODBUS protocol
◆Turnstile working speed: 30~40 people/min;
◆Passing time: swiping card travel time: 10S (if no one passes within 10S: the gate will automatically close, and the time can be adjusted according to needs)
Function parameter Basic Function ●Alarm function: with sound and light alarm function
●Anti-interference:It can limit the abnormality of the gate caused electromagnetic and other external factors
●Traffic mode setting:One-way, two-way, free traffic, etc. can be set through the buttons on the main control panel
●Anti tailing: prevent the unauthorized situation of too many people at same time.
●Anti pinch function:When the gate is in the process of closing, the gate will stop closing after detecting the anti-pinch signal
●Automatic reset: after opening the gate, if the user does not pass within the specified time, the system will automatically cancel the user's permission to pass this time; The default is 10 seconds, and the traffic time can be set through the switch
●Access control: External port can connect a variety of biometric devices
●Power off and opening:switch off after power off, and the switch opening direction can be set
●Fault detection:Control board can support fault type detection,Assist in analyzing the causes of faults and handling faults and abnormalities.
●Passing indication: with passing status indicator; It can also set the alarm function of exceeding the stay time in the channel
Extension Function ▲ Passing Mode
△ Normal: normal pedestrian passing mode
△ Passing: automatic vehicle / electric vehicle / motorcycle passing mode
▲Opening / closing delay, set the delay opening time after the gate turnstile receives the opening signal/set the delay closing time after pedestrians pass, the default is 0 seconds
▲Card swiping in the channel
△Default forbidden: card swiping in the channel (inductive infrared area) is invalid
△Permission:card swiping verification is allowed in the channel
▲Whether the trailing and reversing are blocked by closing the door
△The gate Closed: the reverse/trailing (A swipe card, B pass) will not close the gate
△Close the gate first and then open the gate: close the gate first for reverse/trailing traffic, and then open the gate again after closing
△Do not open the gate after closing the gate: the reverse/trailing traffic will close the gate, and the gate will not be opened again after closing
▲Fire linkage
△Normally open mode: the gate remains open;
△ Normally closed mode: the gate remains closed
▲System language function
△Chinese: The system can set the Chinese interface
△English: The system can set the English interface
▲Passage Mode
△Bidirectional passage,swiping card bi-directionally for people flow.
△Bidirectional free passage, no credit card verification is required.
△Single directional passage, Single directional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes.
△Single directional free passage, Single directional (A) free passage, and reverse directional passing (B) require a swiping card verification.
△Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state.
△Passing is prohibited, the two-way card swiping is invalid, and the gate enters the locked state


Application: subway station, hoverport, tourism, sports, exhibition, swimming hall, residence area, enterprise entrance and exit attendance, special access control etc.


Exhibition Flap Barrier Turnstile Anti Interference With Alarm Function 2

The IRONMAN IM.Y302 Barrier Turnstile Gate is an ideal solution for any secure access control system. This gate is designed with anti-trailing and anti-pinch features and is made from sturdy materials to provide reliable security. It is able to handle a wide range of access control systems, including bi-directional passage, with a passage width of 550mm. It is equipped with a 50W power supply and RS485 communication interface, and can operate in a wide range of humidity up to 90%RH. With its reliable construction and anti-trailing features, the IRONMAN IM.Y302 Barrier Turnstile Gate is perfect for any secure access control system.




Exhibition Flap Barrier Turnstile Anti Interference With Alarm Function 3

Support and Services:

Barrier Turnstile Gate Technical Support and Services

We provide technical support and services for our Barrier Turnstile Gate product. Our technical support includes:

  • 24/7 technical assistance
  • Assistance with installation and setup
  • Troubleshooting and repair services
  • Parts replacement services

Our team of experienced technicians are available to provide assistance with any issue you may have with your Barrier Turnstile Gate product. We strive to provide a high level of customer service and satisfaction.
