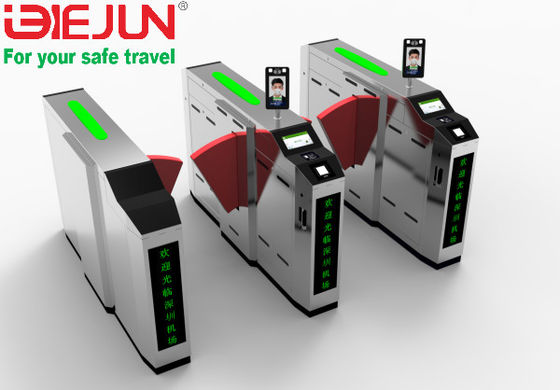

Double Wing Face Recognition Anti Clipping Flap Barrier Turnstile Speed Gate Turnstile for Metro Station Access Control

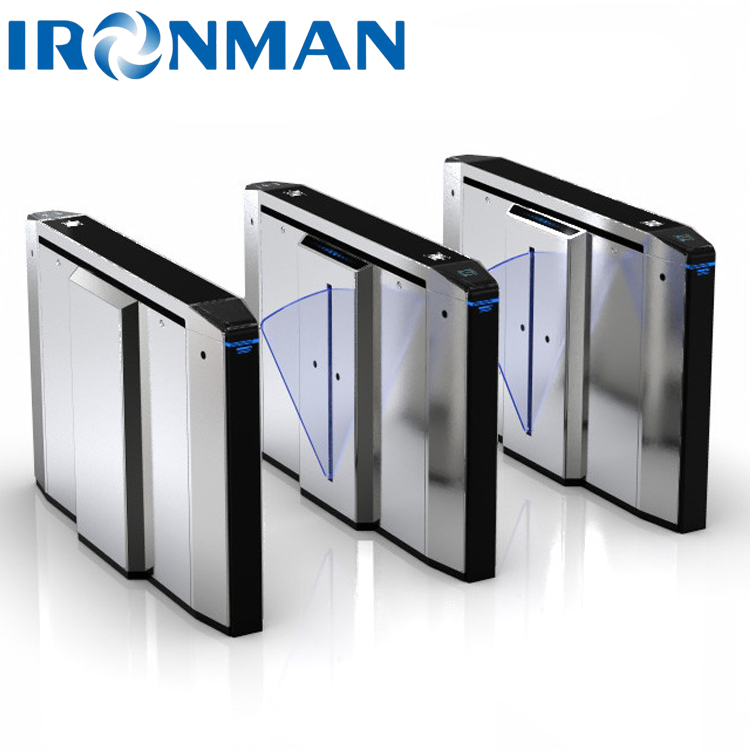

The TDH-PWY905 luxury ticketing wing gate turnstile is engineered for high-traffic pedestrian control in demanding environments. Featuring a full-height direct-drive movement and a patented double-flying-wing configuration, it delivers precise, quiet, and reliable operation for metro stations, transport hubs, and secure facilities.

• Alarm function: Sound and light alarm capability.
• Anti-interference: Limits gate abnormalities caused by electromagnetic and other external factors.
• Traffic mode setting: One-way traffic, two-way traffic, free traffic, and other modes can be set via buttons on the main control panel.
• Anti-tailing: Prevents unauthorized passage by more than one person at a time.
• Anti-pinch function: When the gate is closing, it stops closing upon detecting the anti-pinch signal.
• Automatic reset: After opening, if the user does not pass within the specified time, the system automatically cancels the current passage permission. Default is 10 seconds; passage time is adjustable via switch.
• Access control: External port connects to a variety of biometric devices.
• Power-off opening: Opens after power off; the opening direction can be configured.
• Fault detection: The control board supports fault type detection, assisting in analyzing causes and handling faults and abnormalities.
• Passing indication: Passing status indicator included; an alarm function for exceeding the stay time in the channel can also be set.

• Normal: Standard pedestrian passing mode.
• Passing: Automatic vehicle / electric vehicle / motorcycle passing mode.

• Set the delay opening time after the turnstile receives the opening signal.
• Set the delay closing time after pedestrians pass. Default is 0 seconds.

• Default forbidden: Card swiping in the channel (inductive infrared area) is invalid.
• Permission: Card swiping verification is allowed in the channel.

• Gate closed: Reverse/trailing traffic (A swipes card, B passes) will not close the gate.
• Close first, then open: The gate closes first for reverse/trailing traffic, then reopens after closing.
• Do not open after closing: Reverse/trailing traffic closes the gate, and the gate will not reopen after closing.

• Normally open mode: The gate remains open.
• Normally closed mode: The gate remains closed.

• Chinese: The system can be set to the Chinese interface.
• English: The system can be set to the English interface.

• Two-way traffic: Two-way card swiping is normal.
• Two-way free passage: Two-way free passage; no card verification required.
• One-way traffic: One-way (A) card swipe opens the gate for normal passage; reverse (B) card swipe is invalid and the gate remains closed.
• One-way free passage: One-way (A) free passage; reverse (B) requires card verification.
• Passing prohibited: Two-way card swiping is invalid and the gate enters the locked state.
