Servo Motor Access Control Barriers And Gates For Passenger Access Control

Product Details

Place of Origin: china

Brand Name: Tiejun Turnstile

Certification: ISO9001

Model Number: TDH-PWY906

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: Negotiation

Packaging Details: carton packing

Delivery Time: 8-15 work days

Payment Terms: L/C, T/T

Supply Ability: 2000 pc per/month

Get Best Price
Contact Now
Specifications
Highlight:

Access Control Barriers And Gates

,

ISO 9001 Access Control Gates

Name:
Airport Swing Gates
Housing:
AISI SUS304 1.5MM
Basic Function:
Anti-interference
Application:
Factory Parks / Hospitals
Basic Function ●Voice Broadcast:it Has The Function Of Entering And Opening The Gate / Exiting The G:
Passage Mode
Input Voltage:
AC220V±10% ,50Hz
Name:
Airport Swing Gates
Housing:
AISI SUS304 1.5MM
Basic Function:
Anti-interference
Application:
Factory Parks / Hospitals
Basic Function ●Voice Broadcast:it Has The Function Of Entering And Opening The Gate / Exiting The G:
Passage Mode
Input Voltage:
AC220V±10% ,50Hz
Description
Servo Motor Access Control Barriers And Gates For Passenger Access Control

Servo Motor Dual Swing Gate Turnstile Opener For Passenger Access Control




Product Specifications of Luxury Tickeing Wing Gate Turnstile <TDH-PWY906>

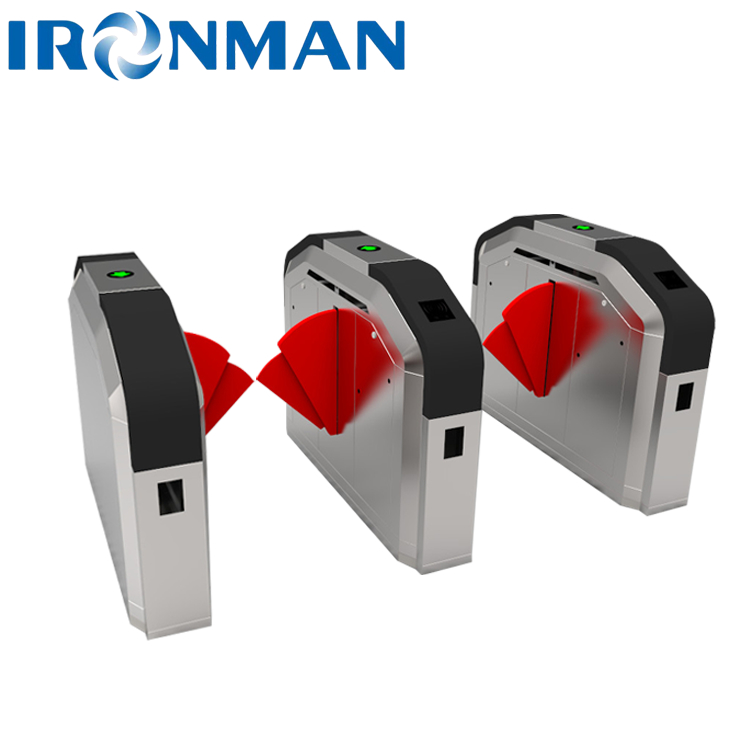

Picture of the productServo Motor Access Control Barriers And Gates For Passenger Access Control 0Document Number:
VersionA/0
Revision Time
Revised by

Product ParametersDimensions1500*300*1100MM(Support customization)Housing Material:Housing:stainless steel 304 1.5MM
Top stainless steel 304 2.0MM
Wing Arm material:15MM Acrylic wing board/soft wing flaps optional
Can support double flying wings
channel width550MM or 600MM
support 900MM double wing

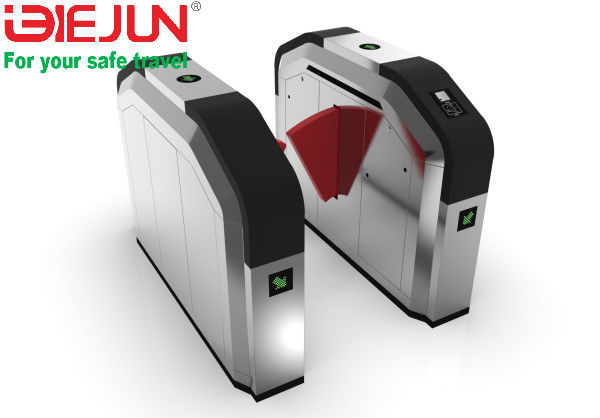

Product Drawing:Servo Motor Access Control Barriers And Gates For Passenger Access Control 1
Technical Parameter◆Housing Material:AISI SUS304
◆Internal structure: frame structure/standard stainless steel shell; frosted black paint on both ends;
◆Power Voltage: AC220V±10V
◆Drive motor: DC brushless motor(24~36VDC)
◆Movement structure: full-height direct-drive movement, fixed with upper and lower screws, firmly bearing force; high-precision movement and motor direct drive, higher precision, faster opening and closing speed, longer service life (patented product); double-flying wing aircraft The operation mode of the core (optional) adopts a four-bar linkage structure, which has high stability and low noise.;
◆Service life: 5,000,000 times
◆Infrared sensor: 8 pairs (can support more than 8 pairs of configuration)
◆Working temperature:-35℃~75℃
◆Relative humidity:0~90%(non-condensing)
◆Communication interface: RS232 serial port
◆Communication protocol: MODBUS protocol
◆Turnstile working speed: 45~50 people/min; double-flying wing configuration ≤ 30 people/min (memory mode can be turned on)
◆Passing time: swiping card travel time: 10S (if no one passes within 10S: the gate will automatically close, and the time can be adjusted according to needs)
Function parameterBasic Function●Alarm function: with sound and light alarm function
●Anti-interference:It can limit the abnormality of the tutrnstile caused electromagnetic and other external factors
●Pass mode setting: One-way pass, two-way pass, free pass (wing arm retraction), etc. can be set through the buttons on the main control panel
●Anti tailing: prevent the unauthorized situation of too many people at one time.
●Anti pinch function:When the tutrnstile is in the process of closing, the tutrnstile will stop closing after detecting the anti-pinch signal
●Automatic reset: after opening the gate, if the user does not pass within the specified time, the system will automatically cancel the user's permission to pass this time; The default is 10 seconds, and the traffic time can be set through the switch
●Access control: External port can connect a variety of biometric devices
●Power off and opening:switch off after power off, and the switch opening direction can be set
●Fault detection:Control board can support fault type detection,Assist in analyzing the causes of faults and handling faults and abnormalities.
●Passing indication: with passing status indicator; It can also set the alarm function of exceeding the stay time in the channel

Extension Function▲ Passing Mode
△ Normal: normal pedestrian passing mode
△ Passing: automatic vehicle / electric vehicle / motorcycle passing mode
▲Voice broadcast, expandable voice module, and volume adjustment
▲Opening / closing delay, set the delay opening time after the gate turnstile receives the opening signal/set the delay closing time after pedestrians pass, the default is 0 seconds
▲Card swiping in the channel
△Default forbidden: card swiping in the channel (inductive infrared area) is invalid
△Permission:card swiping verification is allowed in the channel
▲Whether the trailing and reversing are blocked by closing the door
△The gate Closed: the reverse/trailing (A swipe card, B pass) will not close the gate
△Close the gate first and then open the gate: close the gate first for reverse/trailing traffic, and then open the gate again after closing
△Do not open the gate after closing the gate: the reverse/trailing traffic will close the gate, and the gate will not be opened again after closing
▲Fire linkage
△Normally open mode: the gate remains open;
△Normally closed mode: the gate remains closed
▲Passage Mode
△Bidirectional passage,swiping card bi-directionally for people flow.
△Bidirectional free passage, no credit card verification is required.
△Single directional passage, Single directional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes.
△Single directional free passage, Single directional (A) free passage, and reverse directional passing (B) require a swiping card verification.
△Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state.


Application
Suitable for indoor / outdoor pedestrian passages; such as: scenic spots, parks, playgrounds / primary and secondary schools / colleges / office buildings / hotels / residential quarters / factory parks / hospitals / enterprises and institutions / government halls / sports venues, etc.;
