|Name:||Three Arm Turnstile||Application:||Outdoor/Indoor Pedestrian Passages|
|Power Supply Voltage:||AC100~220V ± 10V||Channel Width:||550~600MM|
|Function:||Anti-interference , Anti-collision Function||Material:||Stainless Steel SUS304|
Magnetic Tripod Turnstile,
Tripod Turnstile Entry System
Tripod Turnstile Gate: Security & Convenience

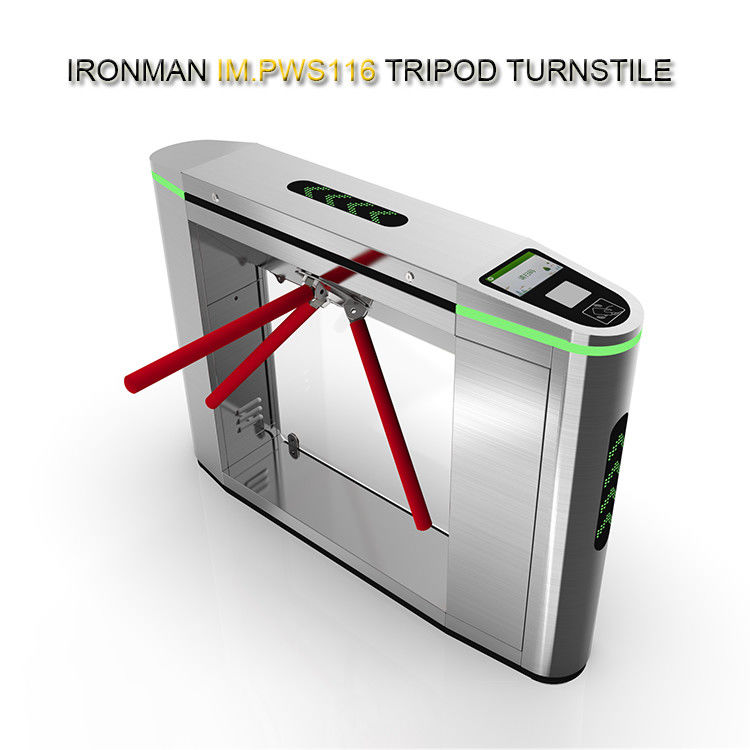

IRONMAN IM.PWS116 Tripod Turnstile
|Tripod Turnstile Gate <IM.PWS116> Product Specifications|
|Product Parameters||Dimensions:||Length 1400*Width 250*Height 980mm||B Material:||Stainless Steel SUS304 1.5mm|
|Stainless Steel Sus304; Optional Black Or Red Brake Rod Cover||Channel Width:||550~600MM|
|Place:||Suitable for indoor / outdoor pedestrian passing places; For example: scenic spots, parks, amusement parks / primary and secondary schools / colleges and universities / office buildings / hotels, residential communities / factory parks / hospitals / enterprises and institutions / government halls / stadiums and other scenes etc.|
|Technical Parameter||◆Case material: hairline drawing SUS304 stainless steel|
◆Service life: more than 5 million times of continuous opening and closing
◆Input voltage: AC220V ± 10V, 50Hz ~ 60Hz
◆Communication interface: RS 485 port
◆Drive motor: DC brushless motor (24 ~ 36VDC)
◆Working environment temperature: - 35 ℃ ~ 75 ℃
◆Relative humidity: 0 ~ 90% (no condensation)
◆Gate operating speed: 30 ~ 50 people / min (memory mode can be turned on)
◆Passage time: card swiping passage time: 10s (if no one passes in 10s: the gate closes automatically, and the time can be adjusted according to needs)
|Function Parameters||Basic Function||●Traffic indication function: an LED indicator board is installed at an eye-catching position of the housing frame to remind pedestrians of the traffic status and direction of the gate.|
|●Anti illegal entry function: when card swiping is invalid, card swiping is not performed or passage is prohibited, forced push rod will be considered as illegal entry, and the system will automatically alarm and lock the brake rod (so that it cannot be pushed).|
|●Intelligent alarm: including illegal intrusion, reverse passage and other alarms, it can be linked with other alarm monitoring equipment in the form of sound and light. If flash alarm is required, it is necessary to add a luminous alarm on the housing frame.|
|●Automatic arm rotation function: when the pedestrian swipes the card effectively, the gate arm will automatically rotate to a certain angle in the forward direction to prompt the pedestrian to pass. After gently pushing the arm, it will automatically rotate following the passage of people, and the rotation speed will be automatically adjusted according to the pedestrian's passing speed.|
|●Automatic arm drop down function: when the power is off, the arm which is used for blocking the passage will drop down, which is convenient for evacuating the crowd and meets the fire protection requirements.|
|●Automatic Arm reinstall function: after the arm is automatically drop down after power failure, the system will automatically rotate the arm slowly for several rounds to restore the arm to the blocking position and give an alarm.|
|●Anti collision function: when the arm is locked, it cannot be pushed by external force, and can withstand the impact force within the safe range.|
|●Anti reverse passage function: When the arm rotated by a certain angle during pedestrian passing, if it is forcibly reverse rotating will be regarded as reverse passage, and the system will automatically alarm and lock the arm.|
|●Fault detection: the control board can support fault type detection, assist in analyzing fault causes and handling fault abnormalities.|
|●Anti interference: it can prevent the abnormal gate caused by electromagnetic and other external factors|
|Expanding Function||▲Voice broadcasting, expandable voice module, and volume adjustment|
|▲Opening / closing delay: set the delayed opening time after the gate receives the opening signal / set the delayed closing time after the pedestrian passes through. The default is 0 seconds|
△Normally open mode: the gate remains open
△Normally closed mode: the gate remains closed
△Bidirectional passage,swiping card bi-directionally for people flow.
△Bidirectional free passage, no credit card verification is required.
△Single directional passage, Single directional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes.
△Single directional free passage, Single directional (A) free passage, and reverse directional passing (B) require a swiping card verification.
△Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state.
