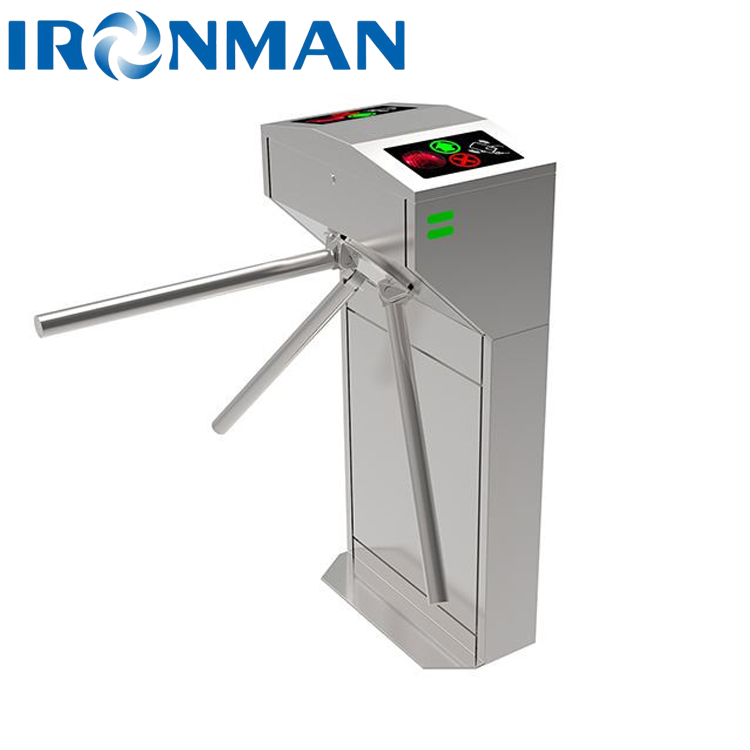

Vertical Tripod Turnstile Gate Security Entrance With RFID IC Cards Reader

China Shenzhen Tiejun Intelligent Technology Co., Ltd. certification
China Shenzhen Tiejun Intelligent Technology Co., Ltd. certification
I'm Online Chat Now

Vertical Tripod Turnstile Gate Security Entrance With RFID IC Cards Reader

Vertical Tripod Turnstile Gate Security Entrance With RFID IC Cards Reader
Vertical Tripod Turnstile Gate Security Entrance With RFID IC Cards Reader

Large Image :  Vertical Tripod Turnstile Gate Security Entrance With RFID IC Cards Reader

Product Details:
Place of Origin: china
Brand Name: Tiejun Turnstile
Certification: ISO9001
Model Number: TDH-S103
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: carton packing
Delivery Time: 8-15 work days
Payment Terms: L/C, T/T
Supply Ability: 2000 pc per/month

Vertical Tripod Turnstile Gate Security Entrance With RFID IC Cards Reader

Name: Tripod Access Control System Application: Factory, Mansion, Residential Area
Power Supply Voltage: AC220V±10V Brake Rod Material: Stainless Steel SUS304
Channel Width: 550~600MM Function: Anti-interference , Anti-collision Function
High Light:

Vertical Tripod Turnstile Gate


Tripod Turnstile Gate Security Entrance


Vertical Tripod Turnstile

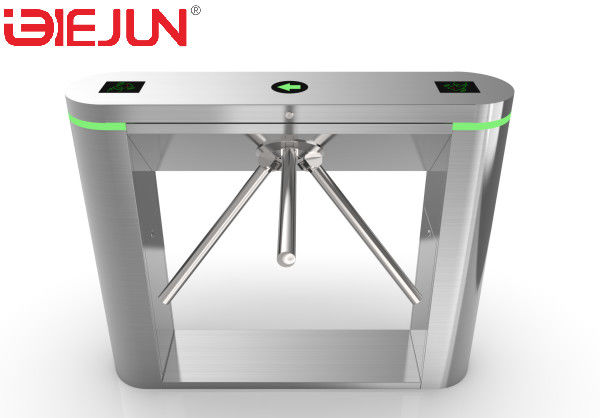

Circular Three Tripod Turnstile Gate <TDH-S103> Product Specifications
Product Icon Document Number:
Edition: A/0
Revision Time:
Revised By:
Product Parameters Dimensions: Length 1200*Width 260*Height 980mm Box Material: Box: Stainless Steel SUS304 Foot 1.0mm
Upper Cover: Stainless Steel SUS304 Foot 1.2mm
Brake Rod
Stainless steel SUS304 Channel Width: 550~600MM
Technical Parameter ◆Box material: Austenitic stainless steel SUS304
◆Internal structure: frame structure/standard stainless steel shell;
◆Power supply voltage: AC220V±10V
◆Service life: more than 5 million times of continuous opening and closing
◆Working environment temperature: -35℃~75℃
◆Relative humidity: 0~90% (no condensation)
◆Communication interface: switch electrical signal, expandable RS232 serial port
◆The working speed of the turnstile: ≤30 people/min (the memory mode can be turned on)
◆Passing time: swiping card travel time: 10S (if no one passes within 10S: the gate will automatically close, and the time can be adjusted according to needs)
Function Parameters Basic Function ●Traffic indication function: LED indication board is installed in the conspicuous part of the housing frame to remind pedestrians the passage status and passage direction of the turnstile.
●Anti-illegal break-in function: When the swipe card is invalid, no card swipe or passage is prohibited, forcing the push rod will be regarded as illegal break-in, and the system will automatically alarm and lock the brake rod (so that it cannot be pushed).
●Access control: The external port can connect a variety of biometric devices
●Automatic drop bar function: when the power is cut off, the brake bar that acts as a barrier will drop automatically, which is convenient for crowd evacuation and meets fire protection requirements.
●Anti-collision function: When the brake lever is locked, it cannot be pushed by external force, and it can withstand the collision force within a safe range.
●Anti-interference: It can limit the abnormality of the gate caused by external factors such as electromagnetic
Expanding Function ▲Intelligent linkage alarm: including illegal intrusion, reverse traffic and other alarms, it can be linked with other alarm monitoring equipment, and can be in the form of sound and light. If a flash alarm is required, a luminous alarm must be added to the housing frame.
▲Voice broadcast, expandable voice module, and volume adjustment
▲Open/close delay, set the delay opening time after the gate receives the opening signal/set the delay closing time after pedestrians pass, the default is 0 seconds
▲Fire linkage
△Normally open mode: the gate remains open
△Normally closed mode: the gate remains closed
▲Passage Mode
△Bidirectional passage,swiping card bi-directionally for people flow.
△Bidirectional free passage, no credit card verification is required.
△Single directional passage, Single directional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes.
△Single directional free passage, Single directional (A) free passage, and reverse directional passing (B) require a swiping card verification.
△Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state.



Suitable for indoor / outdoor pedestrian passing places; For example: scenic spots, parks, amusement parks / primary and secondary schools / colleges and universities / office buildings / hotels, residential communities / factory parks / hospitals / enterprises and institutions / government halls / stadiums and other scenes

Flap Turnstile Feature:


1. Stable running with little noise.

2. Bi-direction passing or uni-direction.

3. When power off, arm will be dropped automatically.

4. High-end customization,Double Anti-pinch and Efficient and Durable.

5. Self-lock function: arm will be locked automatically after passenger passing.

6. Material selection specialized and Fashionable style: 304 stainless steel and unique design, simple and exquisite, with fine brushed texture, textural appearance, every detail is presented by cutting and polishing process.
