Product Details
Place of Origin: China
Brand Name: IRONMAN
Certification: CE; FCC; ISO9001
Model Number: IM.PWY906
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: carton packing
Delivery Time: 8-15 work days
Payment Terms: L/C, T/T
Supply Ability: 2000 pc per/month
Name: |
Speed Gate Turnstile |
Material: |
SUS304 Stainless Steel |
Power Voltage: |
AC220V±10V |
Drive Motor: |
DC Brushless Motor(24~36VDC) |
Service Life: |
5,000,000 Times |
Control Input: |
Dry Contact/relay Signal |
Name: |
Speed Gate Turnstile |
Material: |
SUS304 Stainless Steel |
Power Voltage: |
AC220V±10V |
Drive Motor: |
DC Brushless Motor(24~36VDC) |
Service Life: |
5,000,000 Times |
Control Input: |
Dry Contact/relay Signal |

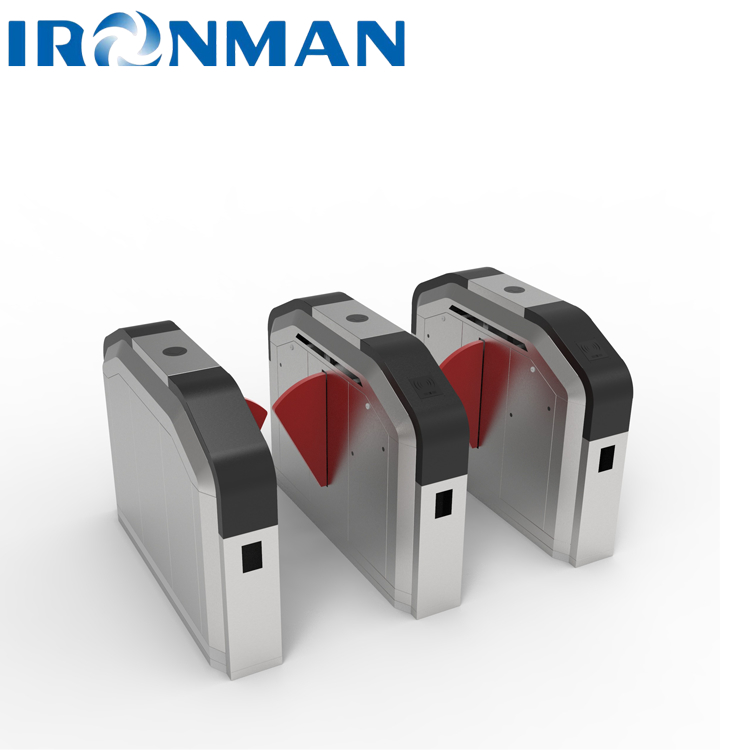

Speed Gate Turnstile 10mm Acrylic Swing Door For Hospitals / Hotels
IM.PWY906 Flap Barrier Turnstile by IRONMAN is an advanced and efficient security access control system that is widely used in public transportation systems, office buildings, gymnasiums, amusement parks, factories, schools, and subways.
The Flap Barrier Turnstile is a type of turnstile gate that is designed to provide secure and controlled access for individuals. It is equipped with two retractable flaps or arms that allow only one person to pass through at a time, ensuring that only authorized individuals can enter the designated area.
The Flap Barrier Turnstile is also known as a flap barrier gate due to its unique design. The flaps or arms are made of high-quality stainless steel, making them durable and resistant to damage. They are also equipped with sensors that detect the presence of a person, allowing the flaps to open and close smoothly.
Product Specifications of Luxury Tickting Wing Gate Turnstile <IM.PWY906> |
||||
| Product Parameters | Dimensions | 1500*300*1100MM(Support customization) | Housing Material: | Housing:stainless steel 304 1.5MM Top stainless steel 304 2.0MM |
| Wing Arm material: | 15MM Acrylic wing board/soft wing flaps optional Can support double flying wings |
channel width | 550MM or 600MM support 900MM double wing |
|
| Technical Parameter | ◆Housing Material:AISI SUS304 ◆Internal structure: frame structure/standard stainless steel shell; frosted black paint on both ends; ◆Power Voltage: AC220V±10V ◆Drive motor: DC brushless motor(24~36VDC) ◆Movement structure: full-height direct-drive movement, fixed with upper and lower screws, firmly bearing force; high-precision movement and motor direct drive, higher precision, faster opening and closing speed, longer service life (patented product); double-flying wing aircraft The operation mode of the core (optional) adopts a four-bar linkage structure, which has high stability and low noise.； ◆Service life: 5,000,000 times ◆Infrared sensor: 8 pairs (can support more than 8 pairs of configuration) ◆Working temperature:-35℃～75℃ ◆Relative humidity:0～90%(non-condensing) ◆Communication interface: RS232 serial port ◆Communication protocol: MODBUS protocol ◆Turnstile working speed: 45~50 people/min; double-flying wing configuration ≤ 30 people/min (memory mode can be turned on) ◆Passing time: swiping card travel time: 10S (if no one passes within 10S: the gate will automatically close, and the time can be adjusted according to needs) |
|||
| Function parameter | Basic Function | ●Alarm function: with sound and light alarm function | ||
| ●Anti-interference:It can limit the abnormality of the tutrnstile caused electromagnetic and other external factors | ||||
| ●Pass mode setting: One-way pass, two-way pass, free pass (wing arm retraction), etc. can be set through the buttons on the main control panel | ||||
| ●Anti tailing: prevent the unauthorized situation of too many people at one time. | ||||
| ●Anti pinch function:When the tutrnstile is in the process of closing, the tutrnstile will stop closing after detecting the anti-pinch signal | ||||
| ●Automatic reset: after opening the gate, if the user does not pass within the specified time, the system will automatically cancel the user's permission to pass this time; The default is 10 seconds, and the traffic time can be set through the switch | ||||
| ●Access control: External port can connect a variety of biometric devices | ||||
| ●Power off and opening:switch off after power off, and the switch opening direction can be set | ||||
| ●Fault detection:Control board can support fault type detection,Assist in analyzing the causes of faults and handling faults and abnormalities. | ||||
| ●Passing indication: with passing status indicator; It can also set the alarm function of exceeding the stay time in the channel | ||||
| Extension Function | ▲ Passing Mode △ Normal: normal pedestrian passing mode △ Passing: automatic vehicle / electric vehicle / motorcycle passing mode |
|||
| ▲Voice broadcast, expandable voice module, and volume adjustment | ||||
| ▲Opening / closing delay, set the delay opening time after the gate turnstile receives the opening signal/set the delay closing time after pedestrians pass, the default is 0 seconds | ||||
| ▲Card swiping in the channel △Default forbidden: card swiping in the channel (inductive infrared area) is invalid △Permission:card swiping verification is allowed in the channel |
||||
| ▲Whether the trailing and reversing are blocked by closing the door △The gate Closed: the reverse/trailing (A swipe card, B pass) will not close the gate △Close the gate first and then open the gate: close the gate first for reverse/trailing traffic, and then open the gate again after closing △Do not open the gate after closing the gate: the reverse/trailing traffic will close the gate, and the gate will not be opened again after closing |
||||
| ▲Fire linkage △Normally open mode: the gate remains open; △Normally closed mode: the gate remains closed |
||||
| ▲Passage Mode △Bidirectional passage,swiping card bi-directionally for people flow. △Bidirectional free passage, no credit card verification is required. △Single directional passage, Single directional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes. △Single directional free passage, Single directional (A) free passage, and reverse directional passing (B) require a swiping card verification. △Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state. |
||||
Application:
high-end factory parks
higher schools
hospitals
enterprises and institutions
Suitable for indoor pedestrian passage places;
office buildings
hotels
residential quarters
government halls
sports venues
convention and exhibition centers;
