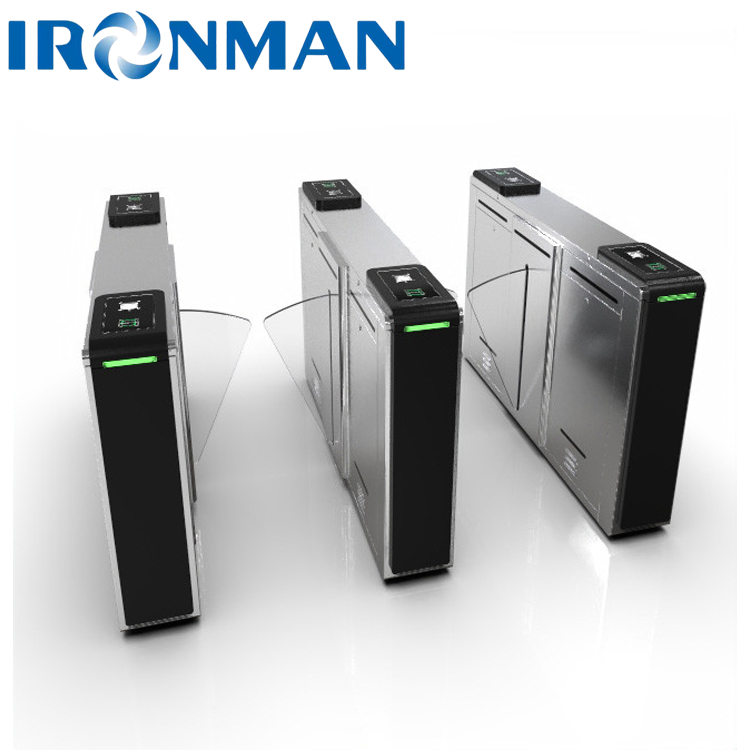

Waterproof Dual Camera Flap Barrier Turnstile with AISI SUS304 Housing and 5,000,000 Times Service Life Wing Gate Turnstile

Waterproof Dual Camera Flap Barrier Turnstile with AISI SUS304 Housing and 5,000,000 Times Service Life Wing Gate Turnstile

Brand Name: Ironman
Model Number: TDH-PWY905
MOQ: 1pc
Price: Negotiation
Packaging Details: carton packing
Payment Terms: L/C,T/T
Detail Information
Place of Origin:
china
Certification:
ISO9001
Name:
Facial Recognition Turnstile
Housing Material:
AISI SUS304
Power Voltage:
AC220V±10V
Service Life:
5,000,000 Times
Communication Interface:
RS232 Serial Port
Basic Function:
Alarm Function
Supply Ability:
2000 pc per/month
Highlight:

All In One Face Recognition Turnstile

,

Face Recognition Turnstile SUS304

Product Description
Product Overview

The TDH-PWY905 is a luxury full-height wing gate turnstile engineered for secure, high-traffic pedestrian access control. Built with an AISI SUS304 stainless steel housing and a patented direct-drive movement, it combines dual-camera face recognition capability with robust waterproof construction for reliable indoor and outdoor operation.

Product Specifications
Dimensions 1600 × 300 × 980 mm (customization supported)
Housing Material Housing: AISI SUS304, 1.5 mm
Top Cover: AISI SUS304, 2.0 mm
Wing Arm Material 15 mm acrylic wing board / soft wing flaps (optional)
Channel Width 550 mm or 600 mm; supports 900 mm double-wing application
Double Flying Wings Supported
Application Suitable for indoor and outdoor pedestrian passages, including scenic spots, parks, playgrounds, primary and secondary schools, colleges, office buildings, hotels, residential quarters, factory parks, hospitals, enterprises and institutions, government halls, and sports venues.
Technical Parameters
Housing Material AISI SUS304
Internal Structure Frame structure / standard stainless steel shell; frosted black paint on both ends
Power Voltage AC220V ±10V
Drive Motor DC brushless motor (24–36 VDC)
Movement Structure Full-height direct-drive movement, fixed with upper and lower screws for firm load bearing. High-precision movement with motor direct drive delivers higher precision, faster opening and closing speed, and longer service life (patented product). The double-flying wing core (optional) adopts a four-bar linkage structure for high stability and low noise.
Service Life 5,000,000 cycles
Infrared Sensor 10 pairs (configurations supporting more than 10 pairs available)
Working Temperature -35 °C to 75 °C
Relative Humidity 0–90% (non-condensing)
Communication Interface RS232 serial port
Communication Protocol MODBUS protocol
Working Speed 45–50 persons/min; double-flying wing configuration ≤ 30 persons/min (memory mode can be enabled)
Passing Time Card swipe travel time: 10 s. If no one passes within 10 s, the gate closes automatically; the time is adjustable as needed.
Basic Functions
  • Alarm function: Sound and light alarm capability.
  • Anti-interference: Limits gate abnormalities caused by electromagnetic and other external factors.
  • Traffic mode setting: One-way traffic, two-way traffic, free traffic, and other modes can be set via the buttons on the main control panel.
  • Anti-tailing: Prevents unauthorized passage by more than one person at a time.
  • Anti-pinch function: When the gate is closing, it stops closing upon detecting the anti-pinch signal.
  • Automatic reset: After opening, if the user does not pass within the specified time, the system automatically cancels the current passage permission. Default is 10 seconds; passage time is adjustable via switch.
  • Access control: External port can connect a variety of biometric devices.
  • Power-off opening: Gate opens after power off; the opening direction can be set.
  • Fault detection: Control board supports fault type detection to assist in analyzing and handling faults and abnormalities.
  • Passing indication: Passing status indicator included; an alarm function for exceeding the stay time in the channel can also be set.
Extension Functions
Passing Mode
  • Normal: Standard pedestrian passing mode.
  • Passing: Automatic vehicle / electric vehicle / motorcycle passing mode.
Opening / Closing Delay

Set the delay opening time after the turnstile receives the opening signal, or the delay closing time after pedestrians pass. Default is 0 seconds.

Card Swiping in the Channel
  • Default forbidden: Card swiping in the channel (inductive infrared area) is invalid.
  • Permission: Card swiping verification is allowed in the channel.
Trailing and Reversing Blocking
  • Gate closed: Reverse/trailing traffic (A swipes card, B passes) will not close the gate.
  • Close first, then open: The gate closes first for reverse/trailing traffic, then reopens after closing.
  • Do not open after closing: Reverse/trailing traffic closes the gate, and the gate will not reopen after closing.
Fire Linkage
  • Normally open mode: The gate remains open.
  • Normally closed mode: The gate remains closed.
System Language
  • Chinese: The system can be set to the Chinese interface.
  • English: The system can be set to the English interface.
Passing Mode Configuration
  • Two-way traffic: Two-way card swiping is normal.
  • Two-way free passage: Two-way free passage with no card verification required.
  • One-way traffic: One-way (A) card swipe opens the gate for normal passage; reverse (B) card swipe is invalid and the gate stays closed.
  • One-way free passage: One-way (A) free passage; reverse (B) requires card verification.
  • Passing prohibited: Two-way card swiping is invalid and the gate enters the locked state.
