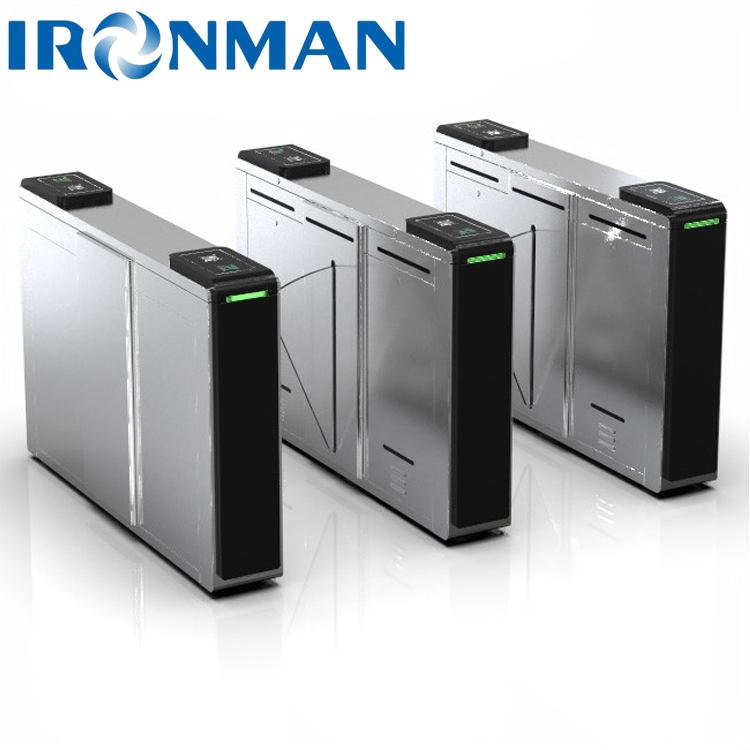

Alarm Function Flap Barrier Turnstile with AISI SUS304 Housing and 5,000,000 Times Service Life Wing Gate Turnstile

Brand Name:	Ironman
Model Number:	TDH-PWY905
MOQ:	1pc
Price:	Negotiation
Packaging Details:	carton packing
Payment Terms:	L/C,T/T

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

china

Certification:

ISO9001

Name:

Facial Recognition Gates

Housing Material:

AISI SUS304

Communication Interface:

RS232 Serial Port

Basic Function:

Alarm Function

Power Voltage:

AC220V±10V

Service Life:

5,000,000 Times

Supply Ability:

2000 pc per/month

Highlight:

Luxury Face Recognition Gate

Face Recognition Gate Access Control

Access Control Turnstile Manufacturers

Product Description

Product Specifications — Luxury Ticketing Wing Gate Turnstile (TDH-PWY905)

Dimensions & Materials

Dimensions	1600 × 300 × 980 mm (customization supported)
Housing Material	AISI SUS304 stainless steel — housing 1.5 mm, top cover 2.0 mm
Wing Arm Material	15 mm acrylic wing board; soft wing flaps optional
Channel Width	550 mm or 600 mm; supports 900 mm double-wing configuration
Double Flying Wings	Supported

Technical Parameters

Housing Material	AISI SUS304 stainless steel
Internal Structure	Frame structure / standard stainless steel shell; frosted black paint on both ends
Power Voltage	AC 220V ± 10V
Drive Motor	DC brushless motor (24–36 VDC)
Movement Structure	Full-height direct-drive movement, fixed with upper and lower screws for firm load bearing; high-precision movement with direct motor drive for higher precision, faster opening/closing speed, and longer service life (patented product). Double-flying wing core (optional) uses a four-bar linkage structure for high stability and low noise.
Service Life	5,000,000 cycles
Infrared Sensor	10 pairs (supports configurations of more than 10 pairs)
Working Temperature	−35 °C to 75 °C
Relative Humidity	0–90% (non-condensing)
Communication Interface	RS232 serial port
Communication Protocol	MODBUS protocol
Working Speed	45–50 persons/min; double-flying wing configuration ≤ 30 persons/min (memory mode can be enabled)
Passing Time	Card swipe travel time: 10 s. If no one passes within 10 s, the gate closes automatically; the time is adjustable as needed.

Basic Functions

Alarm function: Sound and light alarm capability.
Anti-interference: Limits gate abnormalities caused by electromagnetic and other external factors.
Traffic mode setting: One-way traffic, two-way traffic, free traffic, and other modes can be set via buttons on the main control panel.
Anti-tailing: Prevents unauthorized passage by multiple people at one time.
Anti-pinch function: When the gate is closing, it stops closing upon detecting the anti-pinch signal.
Automatic reset: After opening, if the user does not pass within the specified time, the system automatically cancels that passage permission. Default is 10 seconds; traffic time is adjustable via switch.
Access control: External port can connect a variety of biometric devices.
Power-off opening: Gate opens when power is switched off; the opening direction can be configured.
Fault detection: Control board supports fault type detection, assisting in analyzing and handling faults and abnormalities.
Passing indication: Passing status indicator included; an alarm function for exceeding the stay time in the channel can also be set.

Extension Functions

Passing Mode

Normal: Normal pedestrian passing mode.
Passing: Automatic vehicle / electric vehicle / motorcycle passing mode.

Opening / Closing Delay

Set the delay opening time after the turnstile receives the opening signal, or the delay closing time after pedestrians pass. Default is 0 seconds.

Card Swiping in the Channel

Default forbidden: Card swiping in the channel (inductive infrared area) is invalid.
Permission: Card swiping verification is allowed in the channel.

Trailing & Reversing Blocking by Closing the Door

Gate closed: Reverse/trailing traffic (A swipes card, B passes) will not close the gate.
Close first, then open: The gate closes first for reverse/trailing traffic, then reopens after closing.
Do not open after closing: Reverse/trailing traffic closes the gate, and the gate will not reopen after closing.

Fire Linkage

Normally open mode: The gate remains open.
Normally closed mode: The gate remains closed.

System Language

Chinese: The system can be set to the Chinese interface.
English: The system can be set to the English interface.

Passing Mode Configuration

Two-way traffic: Two-way card swiping is normal.
Two-way free passage: Two-way free passage, no card verification required.
One-way traffic: One-way (A) card swipe opens the gate for normal passage; reverse (B) card swipe is invalid and the gate stays closed.
One-way free passage: One-way (A) free passage; reverse (B) requires card verification.
Passing prohibited: Two-way card swiping is invalid and the gate enters the locked state.

Key Features

The turnstile provides smooth and effective access control through basic operation while preventing illegal entry and exit. The machine is well designed, rustproof, durable, and resistant to external damage.
Offers a compact, cost-effective, fast-operating, easy-to-use, and reliable entrance solution for internal or external use in areas with a large and constant flow of people.
Compared with a conventional gate, the turnstile enables better utilization of manpower, increased reliability, and improved security.
