|Name:||Glass Speed Gate Turnstile||Dimensions:||Length 1500*Width 150*Height 991mm|
|Swing Arm Material:||10mm Acrylic Swing Door||Box Material:||Box: Stainless Steel SUS304 Foot 2.0mm Upper Cover: Stainless Steel SUS304 Foot 2.0mm|
|Channel Width:||Open Type; Recommended ≤1000mm||Place:||Office Buildings / Hotels / Residential Quarters|
Glass Swing Turnstile Gate,
Glass Swing Gate

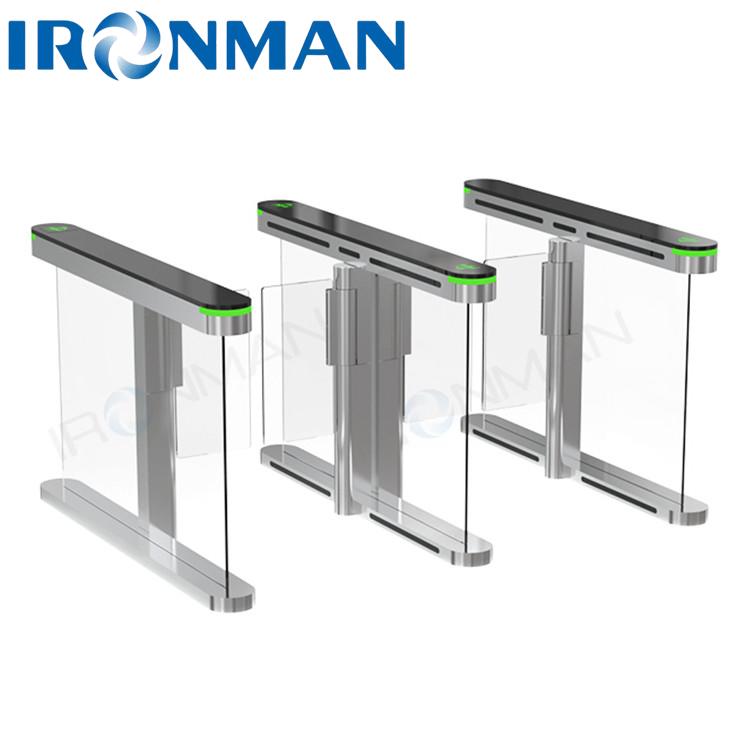

Glass Speed Gate Turnstile <TDH-ST603> Product Specifications
|Product Icon||Document Number:|
|Product Parameters||Dimensions:||Length 1500*Width 150*Height 991mm||Box Material:||Box: Stainless Steel SUS304 Foot 2.0mm
Upper Cover: Stainless Steel SUS304 Foot 2.0mm
|Swing Arm Material:||10mm Acrylic Swing Door||Channel Width:||Open Type; Recommended ≤1000mm|
|Place:||Suitable for indoor pedestrian passage places; such as: office buildings/hotels/residential quarters/high-end factory parks/higher schools/hospitals/enterprises and institutions/government halls/sports venues/convention and exhibition centers;|
|Product Line Drawing:|
|Technical Parameter||◆Box material: austenitic stainless steel SUS304
◆Internal structure: frame structure / stainless steel shell surface drawing, whole machine planing
◆Power supply voltage: AC220V±10V
◆Drive motor: DC brushless motor (24~36VDC)
◆Movement structure: high-precision anti-collision movement, high-strength clutch, return in case of resistance, high strength, impact resistance;
◆Service life: more than 8 million times of continuous opening and closing
◆Infrared sensor: 8 pairs; (support more than 8 pairs of configuration)
◆Working environment: -35℃～75℃
◆Relative humidity: 0～90% (no condensation)
◆Communication interface: RS232 serial port
◆Communication protocol: MODBUS protocol
◆The working speed of the turnstile: ≤45 people/min (the memory mode can be turned on)
◆Passing time: swiping card travel time: 10S (if no one passes 10S: speed gate turnstile will automatically close, and the time can be adjusted as needed)"
|Function Parameter||Basic Function||●Alarm function: with sound and light alarm function|
|●Anti-interference: It can limit the abnormality of speed gate turnstile caused by external factors such as electromagnetic|
|●Pass mode setting: One-way pass, two-way pass, free pass (wing arm retraction), etc. can be set through the buttons on the main control board|
|●Anti-trailing: prevent the non-permissible situation of too many people at one time.|
|●Anti-pinch function: When speed gate turnstile is in the process of closing, speed gate turnstile will stop closing after detecting the anti-pinch signal|
|●Auto reset: After speed gate turnstile is opened, if there is no passage within the specified time, the system will automatically cancel the user's access authority; the default is 10 seconds, and the passage time can be set by the switch|
|●Access control: The external port can connect a variety of biometric devices|
|●Power off and switch off: switch on after power off|
|●Fault detection: The control board can support fault type detection, assist in analyzing the cause of the fault, and handle abnormal faults.|
|●Traffic indication: There is a traffic status indicator; and an alarm function for exceeding the stay time in the channel can be set|
|Expanding Function||▲Passing mode
△Normal: Normal passing mode
△Passing: automatic car/electric car/motorcycle passing mode
|▲Voice broadcast, expandable voice module, and volume adjustment|
|▲Open/close delay, set the delay opening time after speed gate turnstile receives the opening signal/set the delay closing time after pedestrians pass, the default is 0 seconds|
|▲ Swipe the card in the channel
△ Disabled by default: card swiping in the channel (induction infrared area) is invalid
△Allow: Card verification is allowed in the channel.
|▲Whether the trailing and reversing are blocked by closing the door
△Do not close speed gate turnstile: the reverse/trailing (A swipe card, B pass) will not close speed gate turnstile
△Close speed gate turnstile first and then open speed gate turnstile: close speed gate turnstile first for reverse/trailing traffic, and then open speed gate turnstile again after closing
△speed gate turnstile will not be opened after speed gate turnstile is closed: speed gate turnstile will be closed for reverse/trailing traffic, and speed gate turnstile will not be opened again after speed gate turnstile is closed
△Normally open mode: speed gate turnstile remains open
△ Normally closed mode: speed gate turnstile remains closed
△Bidirectional passage,swiping card bi-directionally for people flow.
△Bidirectional free passage, no credit card verification is required.
△Single directional passage, Single directional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes.
△Single directional free passage, Single directional (A) free passage, and reverse directional passing (B) require a swiping card verification.
△Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state.
