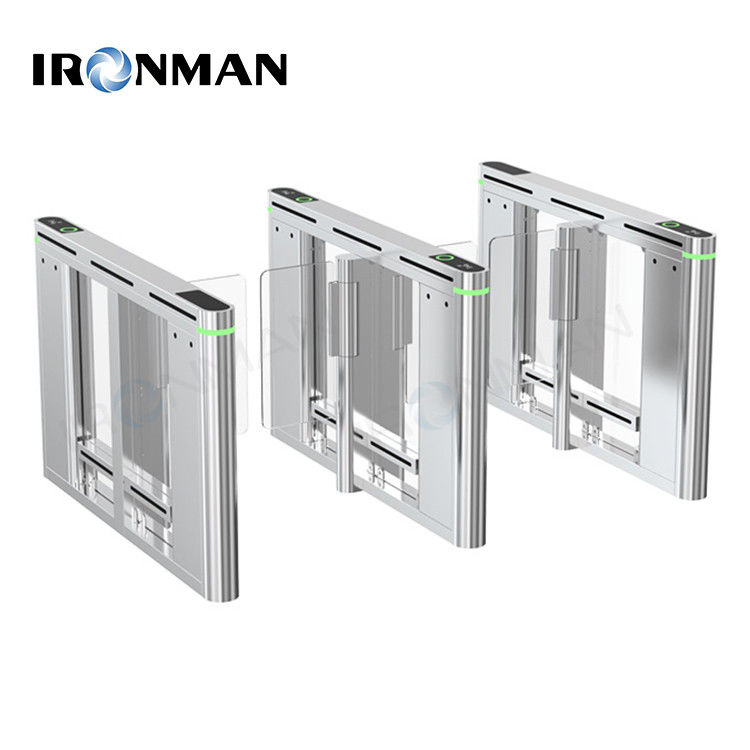

Speed Gate Turnstile with 10mm Acrylic Arm For Hospitals / Hotels

Basic Information
Place of Origin: China
Brand Name: IRONMAN
Certification: CE; FCC; ISO9001
Model Number: IM.ST601
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: carton packing
Delivery Time: 8-15 work days
Payment Terms: L/C, T/T
Supply Ability: 2000 pc per/month
Detail Information
Name: Speed Gate Turnstile Material: SUS304 Stainless Steel
Swing Arm Material: AC110~220V±10V Channel Width: Recommended ≤1000mm
Power Supply Voltage: AC220V±10V Control Input: Dry Contact/relay Signal
Dimension: 1500*120*1000 Warranty: 1 Years

Arc Speed Gate Turnstile


Hotels Speed Gate Turnstile


Speedgate Turnstile

Product Description

Speed Gate Turnstile with 10mm Acrylic Arm For Hospitals / Hotels

Speed Gate Turnstile with 10mm Acrylic Arm For Hospitals / Hotels 0

Product Specification

Speed Gate Turnstile <IM.ST601> Product Specifications
Product Parameters Dimensions: Length 1500*Width 120*Height 960mm Box Material: Box: Stainless Steel SUS304 1.5mm
Upper Cover: Stainless Steel SUS304 1.5mm
Swing Arm Material: 10mm Acrylic Swing Door Channel Width: Recommended ≤1000mm
Place: Suitable For Indoor/Semi-outdoor Places; Such As: Office Buildings/Hotels/Residential Quarters/High-End Factory Parks/Higher Schools/Hospitals/Enterprises And Institutions/Government Halls/Sports Venues/Convention And Exhibition Centers;
Technical Parameter ◆Box material: Stainless steel SUS304
◆Power supply voltage: AC110~220V±10V
◆Drive motor: DC brushless motor (24~36VDC)
◆Movement structure: high-precision anti-collision movement, high-strength clutch,
◆Service life: more than 8 million times of continuous opening and closing
◆Infrared sensor: 8 pairs; (support more than 8 pairs of configuration)
◆Working environment: -35℃~75℃
◆Relative humidity: 0~90% (no condensation)
◆Communication interface: RS232 serial port
◆Communication protocol: MODBUS protocol
◆The working speed of the turnstile: ≤45 people/min (the memory mode can be turned on)
◆Passing time: swiping card travel time: 10S (if no one passes within 10S: the gate will automatically close, and the time can be adjusted according to needs)
Function Parameter Basic Function ●Alarm function: with sound and light alarm function
●Anti-interference: It can limit the abnormality of the gate caused by external factors such as electromagnetic
●Pass mode setting: One-way pass, two-way pass, free pass (wing arm retraction), etc. can be set through the buttons on the main control board
●Anti-trailing: prevent the non-permissible situation of too many people at one time.
●Anti-pinch function: When the gate is in the process of closing, the gate will stop closing after detecting the anti-pinch signal
●Auto reset: After the gate is opened, if there is no passage within the specified time, the system will automatically cancel the user's access authority; the default is 10 seconds, and the passage time can be set by the switch
●Access control: The external port can connect a variety of biometric devices
●Power off and switch off: switch on after power off
●Fault detection: The control board can support fault type detection, assist in analyzing the cause of the fault, and handle abnormal faults.
●Traffic indication: There is a traffic status indicator; and an alarm function for exceeding the stay time in the channel can be set
Expanding Function ▲Passing mode
△Normal: Normal passing mode
△ Passing: automatic car/electric car/motorcycle passing mode
▲Voice broadcast, expandable voice module, and volume adjustment
▲Open/close delay, set the delay opening time after the gate receives the opening signal/set the delay closing time after pedestrians pass, the default is 0 seconds
▲ Swipe the card in the channel
△ Disabled by default: card swiping in the channel (induction infrared area) is invalid
△Allow: Card verification is allowed in the channel.
▲Whether the trailing and reversing are blocked by closing the door
△Do not close the gate: the reverse/trailing (A swipe card, B pass) will not close the gate
△Close the gate first and then open the gate: close the gate first for reverse/trailing traffic, and then open the gate again after closing
△Do not open the gate after closing the gate: the reverse/trailing traffic will close the gate, and the gate will not be opened again after closing
▲Fire linkage
△Normally open mode: the gate remains open
△ Normally closed mode: the gate remains closed
▲Passage Mode
△Bidirectional passage,swiping card bi-directionally for people flow.
△Bidirectional free passage, no credit card verification is required.
△Single directional passage, Single directional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes.
△Single directional free passage, Single directional (A) free passage, and reverse directional passing (B) require a swiping card verification.
△Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state.


Dimension Drawing

Speed Gate Turnstile with 10mm Acrylic Arm For Hospitals / Hotels 1


Speed Gate Turnstile with 10mm Acrylic Arm For Hospitals / Hotels 2


TJ-ST601 speed gate turnstile is a sophisticated commericial design which is designed to be used in office buildings. It provides quick and efficient passage speed of 30~40 persons/min, and has excellent security and safety features. The turnstile is also equipped with advanced access control technology, which allows for quick and efficient access control.

This turnstile is designed to withstand humidity up to 90%, and has a communication interface of RS485. It is an ideal solution for any security or safety requirement in the office building.


Packing and Shipping:

Packaging and Shipping for Speed Gate Turnstile:

  • The product will be placed in a sealed cardboard box and secured with bubble wrap.
  • The box will be labeled "Speed Gate Turnstile" on the outside.
  • The box will be shipped via a reliable carrier.
  • The customer will be provided with a tracking number for their package.
  • The product will be shipped in a timely manner to ensure it arrives safe and secure.
