Product Details:
|
| Name: | Oblique Octagonal Swing Gate | Dimensions: | 1200*280*980mm |
|---|---|---|---|
| Infrared Sensor: | 4~6 Pairs | Application: | Colleges / Office Buildings |
| Channel Width: | Open | Work Voltage: | AC220V±10V |
| High Light: | Oblique Octagonal Swing Gate Turnstile,Swing Gate Turnstile Access Control,Exhibition Speed Gate Systems |
||
| Oblique Octagonal Swing Gate <TDH-B209> Product Specifications | ||||

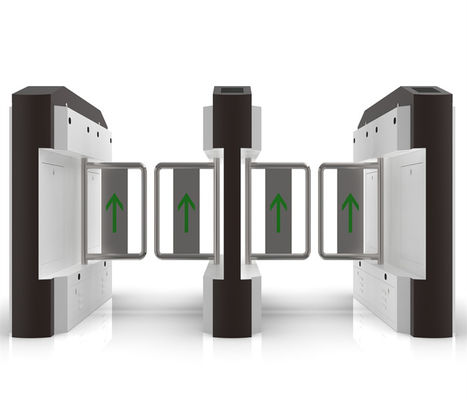

| Product Images | Document Number: | |||
| Edition: | A/0 | |||
| Revision Time: | ||||
| Revised by: | ||||
| Product Parameters | Dimensions: | 1200*280*980mm | Box Material: | Box: stainless steel SUS304 foot 0.8mm Top Cover: stainless steel SUS304 foot1.2mm |
| Swing Arm Material: | A:Stainless steel SUS304 elbow B:10MM Acrylic swing door |
Channel Width: | Open | |
| Product Line Drawings: | ||||
| Technical Parameters | ◆Chassis Material: Austenitic stainless steel SUS304 ◆Internal Structure: Steel Frame Construction, plastic module outdoor PC material (10 years warranty) ◆Work Voltage: AC220V±10V ◆Driving Motor: DC brushless motor(24~36VDC) ◆Movement Structure: Horizontal helical gear anti-collision movement ◆Normal Work Life: Continuous opening and closing for more than 5 million times ◆Infrared Sensors: 4~6 pairs ◆Working Environment Temperature: -35℃～75℃ ◆Relative Humidity: 0～90% (No condensation) ◆Communication Interface: RS232 serial port ◆Communication Protocol: MODBUS protocol ◆Working Speed of the Gate: ≤30 persons/min (The memory mode can be turned on) ◆Passing Time: passing time by swiping card: 10S (If no one passes within 10S: the gate will automatically close, and the time can be adjusted according to needs) |
|||
| Function Parameters | Basic Functions | ●Alarm Function: Sound and light alarm function. | ||
| ●Anti-interference: To prevent the gate abnormal caused by electromagnetic and other external causes. |
||||
| ●Passage Mode Setting: Unidirectional passage, bidirectional passage and free passage can be set through the main control board keys. | ||||
| ●Anti-tailgating: To prevent the unpermitted situation of passing too many people at once. | ||||
| ● Anti-clamp Function: When the brake is in the process of closing, the brake will stop closing after detecting the anti-clamp signal. | ||||
| ●Self-reset. Pass right will be canceled if people do not go through within a set time, the default time is 10s, and the passage time can be set by switch. | ||||
| ●Access Control: The external port can be connected to a variety of biometric identification devices. | ||||
| ●The gate opens after power failure. | ||||
| ●Fault Detection: The control board can support fault type detection, fault cause analysis, and fault troubleshooting. | ||||
| ●Passing Indicator: Traffic status indicator light; the alarm function of overstay time in the channel can be set. | ||||
| Extensible Functions | ▲Passing Mode △Normal: Normal passing mode. △Passing: automatic car/electric car/motorcycle passing mode. |
|||
| ▲Voice broadcast, expandable voice module, and volume adjustment. | ||||
| ▲Switch on/Switch off Delay: set the delay of switch off after the switch machine receives the switch off signal/set the delay of switch off after the pedestrian passes. The default value is 0 seconds. | ||||
| ▲Swipe Card in the Channel △Default Disable: Card swiping in the channel (in the inductive infrared region) is invalid △Allow: Swipe card verification is allowed in the channel. |
||||
| ▲ Whether the Trailing and Reversing are Blocked by Closing the Door △Not close: Reverse passage /tailgating (A swips the card, B passes) will not close the gate. △Close the gate and then open the gate: Reverse/trailing passage will close the gate first, and open the gate again after closing. △Not open after closing: reverse/trailing passage will close the gate, and will not open again after closing the gate. |
||||
| ▲Fire Linkage △Normally open mode: the gate maintains the open state; △ Normally closed mode: the gate maintains the switch state. |
||||
| ▲Passage Mode △Bidirectional passage,swiping card bi-directionally for people flow. △Bidirectional free passage, no credit card verification is required. △Unidirectional passage, unidirectional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes. △Unidirectional free passage, unidirectional (A) free passage, and reverse directional passing (B) require a swiping card verification. △Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state. |
||||
Application
subway station,hoverport, tourism, sports, exhibition, swimming hall, residence area, enterprise entrance and exit attendance, special access control etc.
