Outdoor Swing Turnstile Gate Access Control For Stadium

Product Details

Place of Origin: China

Brand Name: IRONMAN

Certification: CE; FCC; ISO9001

Model Number: IM.XS.02A

Payment & Shipping Terms

Minimum Order Quantity: 2

Packaging Details: Carton packing

Delivery Time: 5~8 working days

Get Best Price
Contact Now

Access Control Swing Turnstile Gate


Outdoor Swing Turnstile Gate


Stadium Swing Turnstile Gate

Outdoor Swing Turnstile Gate Access Control For Stadium

Turnstile Entrance Gates , Office Turnstile, Speed Swing Barrier

IRONMAN IM.XS.02A state-of-the-art Swing Barrier Gates - the perfect solution for efficient and secure access control. Designed with cutting-edge technology and superior craftsmanship, our swing barrier gates offer a seamless blend of functionality, aesthetics, and durability.

Key Features:

  1. Enhanced Security: Our swing barrier gates provide a robust physical barrier, preventing unauthorized access and ensuring only authorized individuals can enter restricted areas. With advanced access control systems, such as RFID, fingerprint recognition, and facial recognition, you can have peace of mind knowing that your premises are secure.

  2. Smooth and Silent Operation: Equipped with high-quality motors and precision-engineered components, our swing barrier gates offer smooth and silent operation, minimizing disruption and providing a seamless entry experience for users.

  3. Customizable Design: We understand the importance of aesthetics in creating a welcoming and professional environment. Our swing barrier gates are available in a range of finishes and materials, allowing you to customize the design to match your brand identity and architectural style.

  4. Easy Integration: Our swing barrier gates are designed to seamlessly integrate with various access control systems, including ticketing systems, biometric devices, and RFID readers. This ensures a hassle-free installation process and compatibility with your existing security infrastructure.

  5. Durable and Low Maintenance: Built to withstand heavy usage and harsh environments, our swing barrier gates are constructed using high-quality materials, ensuring long-lasting performance and minimal maintenance requirements. This translates to reduced downtime and cost savings for your business.

Outdoor  Swing Turnstile Gate Access Control For Stadium 0

Product Specifications


Swing Barrier Gate <IM.XS.02A> Product Specifications
Product Parameters Dimensions: 1400*166*1000mm Box Material:

Box: SUS201 full 1.0mm baking white paint

Top cover: aluminum oxide

Column: Aluminum oxide

Swing Arm Material: 10MM Acrylic (Stainless steel elbow is optional) Channel Width: ≤1110mm
Product Dimension Outdoor  Swing Turnstile Gate Access Control For Stadium 1
Function Parameters

◆Turnstile Body: Box: SUS201 full 1.0mm baking white paint

Top cover: aluminum oxide

Column: Aluminum oxide ◆Internal Structure: Steel Frame Construction/Standard Stainless Steel Housing
◆Work Voltage: AC110~220V±10V
◆Driving Motor: DC brushless motor(24~36VDC)
◆MCBF: Continuous opening and closing for more than 5 million times
◆Infrared Sensors: 6 pairs;

◆Working Environment Temperature: -35℃~75℃
◆Relative Humidity: 0~90% (No condensation)
◆Communication Interface: RS232 serial port
◆Communication Protocol: MODBUS protocol
◆Working Speed of the Gate: ≤30 persons/min (The memory mode can be turned on)
◆Passing Time: passing time by swiping card: 10S (If no one passes within 10S: the gate will automatically close, and the time can be adjusted according to needs)

  Basic Functions ●Alarm Function: Sound and light alarm function.
●Anti-interference: To prevent the gate abnormal caused by electromagnetic and other external causes.
●Passage Mode Setting: Unidirectional passage, bidirectional passage and free passage can be set through the main control board keys.
●Anti-tailgating: To prevent the unpermitted situation of passing too many people at once.
● Anti-clamp Function: When the brake is in the process of closing, the brake will stop closing after detecting the anti-clamp signal.
●Self-reset. Pass right will be canceled if people do not go through within a set time, the default time is 10s, and the passage time can be set by switch.
●Access Control: The external port can be connected to a variety of biometric identification devices.
●The gate opens after power failure.
●Fault Detection: The control board can support fault type detection, fault cause analysis, and fault troubleshooting.
●Passing Indicator: Traffic status indicator light; the alarm function of overstay time in the channel can be set.
Extensible Functions ▲Passing Mode
△Normal: Normal passing mode.
△Passing: automatic car/electric car/motorcycle passing mode.
▲Switch on/Switch off Delay: set the delay of switch off after the switch machine receives the switch off signal/set the delay of switch off after the pedestrian passes. The default value is 0 seconds.
▲Swipe Card in the Channel
△Default Disable: Card swiping in the channel (in the inductive infrared region) is invalid
△Allow: Swipe card verification is allowed in the channel.
▲ Whether the Trailing and Reversing are Blocked by Closing the Door
△Not close: Reverse passage /tailgating (A swips the card, B passes) will not close the gate.
△Close the gate and then open the gate: Reverse/trailing passage will close the gate first, and open the gate again after closing.
△Not open after closing: reverse/trailing passage will close the gate, and will not open again after closing the gate.
▲Fire Linkage
△Normally open mode: the gate maintains the open state;
△ Normally closed mode: the gate maintains the switch state.
▲Passage Mode
△Bidirectional passage,swiping card bi-directionally for people flow.
△Bidirectional free passage, no credit card verification is required.
△Unidirectional passage, unidirectional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes.
△Unidirectional free passage, unidirectional (A) free passage, and reverse directional passing (B) require a swiping card verification.
△Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state.



  • Office Buildings: Enhance security and control access to different areas within your office premises, ensuring only authorized personnel can enter restricted zones.
  • Public Transportation Hubs: Manage the flow of passengers and ensure ticket validation at train stations, airports, and bus terminals.
  • Sports and Entertainment Venues: Facilitate smooth entry and exit for spectators while maintaining strict access control during events.
  • Corporate Campuses: Secure the entrances and exits of corporate campuses, ensuring only authorized employees and visitors can enter.

Outdoor  Swing Turnstile Gate Access Control For Stadium 2

Outdoor  Swing Turnstile Gate Access Control For Stadium 3

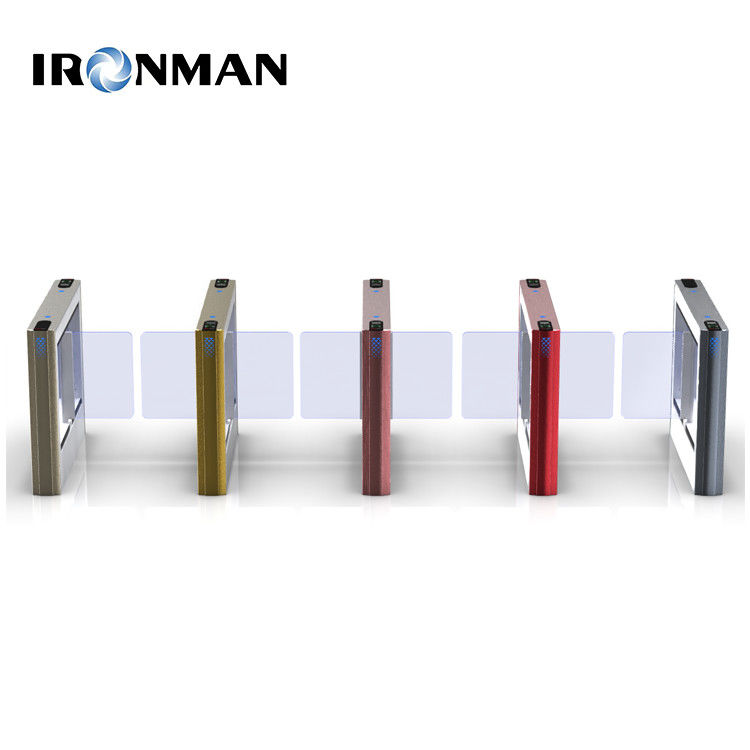

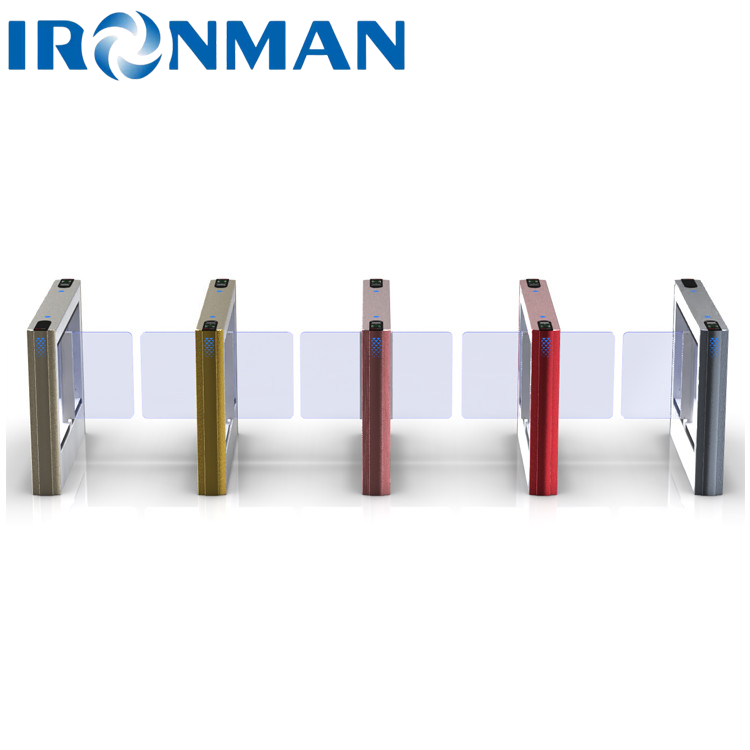

More Color Options

Outdoor  Swing Turnstile Gate Access Control For Stadium 4

  • Industry Expertise: With years of experience in the access control industry, we understand the unique requirements of different sectors and can provide tailored solutions to meet your specific needs.
  • Quality Assurance: Our swing barrier gates undergo rigorous testing and quality control measures to ensure they meet the highest standards of performance, reliability, and safety.
  • Excellent Customer Support: Our dedicated team of experts is committed to providing exceptional customer support, from initial consultation to after-sales service, ensuring a smooth and hassle-free experience.

Invest in our Swing Barrier Gates today and experience the perfect combination of security, convenience, and aesthetics. Contact us now for more information and a personalized solution for your access control needs.
