Name: |

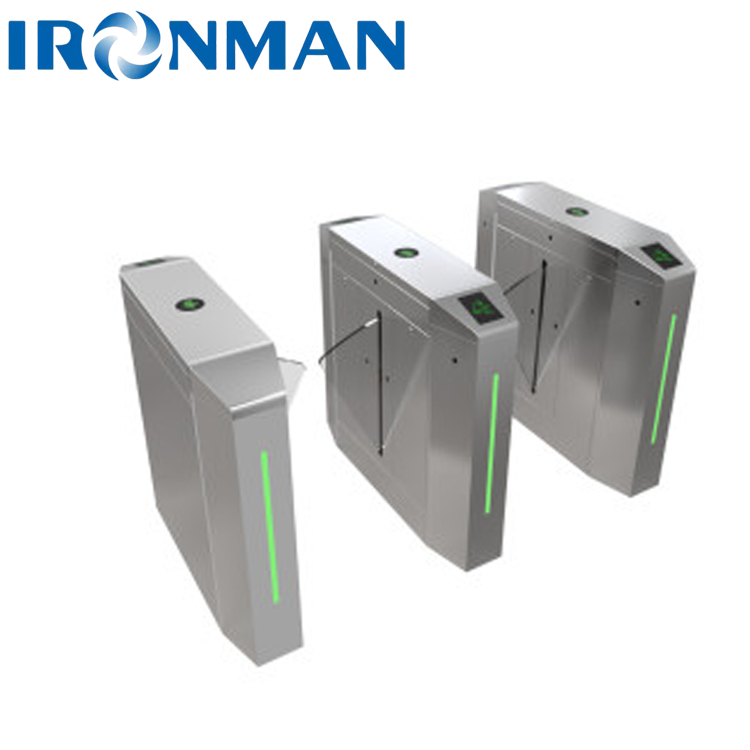

Luxury Tickeing Oblique Octagon Wing Gate Turnstile |
Dimensions: |
1200*300*980mm |
Application: |
Office Buildings / Hotels |
Channel Width: |
550MM Or 600MM |
Housing Material: |
AISI SUS304 |
Wing Arm Material: |
15MM Acrylic Wing Board |
Power Voltage: |
AC220V±10V |
Name: |
Luxury Tickeing Oblique Octagon Wing Gate Turnstile |
Dimensions: |
1200*300*980mm |
Application: |
Office Buildings / Hotels |
Channel Width: |
550MM Or 600MM |
Housing Material: |
AISI SUS304 |
Wing Arm Material: |
15MM Acrylic Wing Board |
Power Voltage: |
AC220V±10V |
| Product Specifications of Luxury Tickeing Oblique Octagon Wing Gate Turnstile <TDH-Y303> |
||||
| Picture of the product | Document Number: | |||
| Version | A/0 | |||
| Revision Time | ||||
| Revised by | ||||
| Product Parameters | Dimensions | 1200*300*980mm | Housing Material: | Housing:stainless steel 304 1.5MM Top:stainless steel 304 2.0MM |
| Wing Arm material: | 15MM Acrylic wing board | channel width | 550MM or 600MM | |
| application: | Suitable for indoor/outdoor pedestrian passages; such as: scenic spots, parks, playgrounds/primary and secondary schools/colleges/office buildings/hotels/residential quarters/factory parks/hospitals/enterprises and institutions/government halls/sports venues, etc.; | |||
| Product Drawing: | ||||
| Technical Parameter | ◆Housing Material:AISI SUS304 ◆Internal structure: frame structure/standard stainless steel shell; frosted black paint on both ends; ◆Power Voltage: AC220V±10V ◆Drive motor: DC brushless motor(24~36VDC) ◆Movement structure: full-height direct-drive movement, fixed with upper and lower screws, firmly bearing force; high-precision movement and motor direct drive, higher precision, faster opening and closing speed, longer service life (patented product); double-flying wing aircraft The operation mode of the core (optional) adopts a four-bar linkage structure, which has high stability and low noise.； ◆Service life: 5,000,000 times ◆Infrared sensor: 8 pairs (can support more than 8 pairs of configuration) ◆Working temperature:-35℃～75℃ ◆Relative humidity:0～90%(non-condensing) ◆Communication interface: RS232 serial port ◆Communication protocol: MODBUS protocol ◆Turnstile working speed: 45~50 people/min; double-flying wing configuration ≤ 30 people/min (memory mode can be turned on) ◆Passing time: swiping card travel time: 10S (if no one passes within 10S: the gate will automatically close, and the time can be adjusted according to needs) |
|||
| Function parameter | Basic Function | ●Alarm function: with sound and light alarm function | ||
| ●Anti-interference:It can limit the abnormality of the tutrnstile caused electromagnetic and other external factors | ||||
| ●Pass mode setting: One-way pass, two-way pass, free pass (wing arm retraction), etc. can be set through the buttons on the main control panel | ||||
| ●Anti tailing: prevent the unauthorized situation of too many people at one time. | ||||
| ●Anti pinch function:When the tutrnstile is in the process of closing, the tutrnstile will stop closing after detecting the anti-pinch signal | ||||
| ●Automatic reset: after opening the gate, if the user does not pass within the specified time, the system will automatically cancel the user's permission to pass this time; The default is 10 seconds, and the traffic time can be set through the switch | ||||
| ●Access control: External port can connect a variety of biometric devices | ||||
| ●Power off and opening:switch off after power off, and the switch opening direction can be set | ||||
| ●Fault detection:Control board can support fault type detection,Assist in analyzing the causes of faults and handling faults and abnormalities. | ||||
| ●Passing indication: with passing status indicator; It can also set the alarm function of exceeding the stay time in the channel | ||||
| Extension Function | ▲ Passing Mode △ Normal: normal pedestrian passing mode △ Passing: automatic vehicle / electric vehicle / motorcycle passing mode |
|||
| ▲Voice broadcast, expandable voice module, and volume adjustment | ||||
| ▲Opening / closing delay, set the delay opening time after the gate turnstile receives the opening signal/set the delay closing time after pedestrians pass, the default is 0 seconds | ||||
| ▲Card swiping in the channel △Default forbidden: card swiping in the channel (inductive infrared area) is invalid △Permission:card swiping verification is allowed in the channel |
||||
| ▲Whether the trailing and reversing are blocked by closing the door △The gate Closed: the reverse/trailing (A swipe card, B pass) will not close the gate △Close the gate first and then open the gate: close the gate first for reverse/trailing traffic, and then open the gate again after closing △Do not open the gate after closing the gate: the reverse/trailing traffic will close the gate, and the gate will not be opened again after closing |
||||
| ▲Fire linkage △Normally open mode: the gate remains open; △Normally closed mode: the gate remains closed |
||||
| ▲Passage Mode △Bidirectional passage,swiping card bi-directionally for people flow. △Bidirectional free passage, no credit card verification is required. △Single directional passage, Single directional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes. △Single directional free passage, Single directional (A) free passage, and reverse directional passing (B) require a swiping card verification. △Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state. |
||||
