|Name:||Vertical Tripod Turnstile||Dimensions:||Length 1200*Width 280*Height 980mm|
|Channel Width:||550~600MM||Place:||Suitable For Indoor / Outdoor;|
|Brake Rod Material:||Stainless Steel SUS304||Power Supply Voltage:||AC220V±10V|
RFID Three Arm Turnstile,

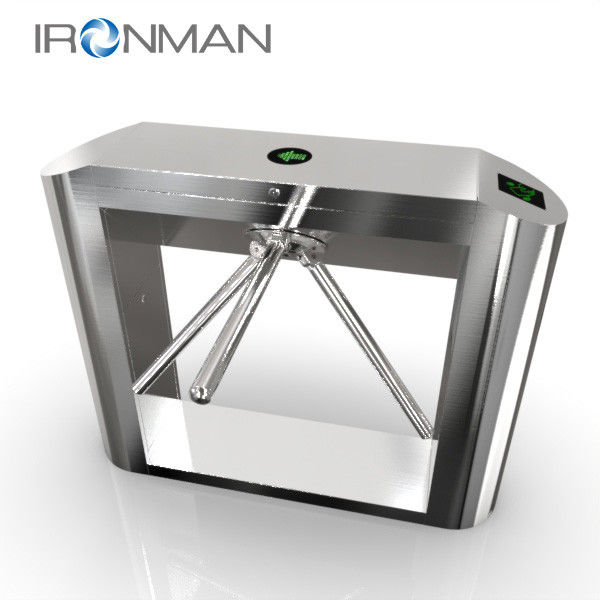

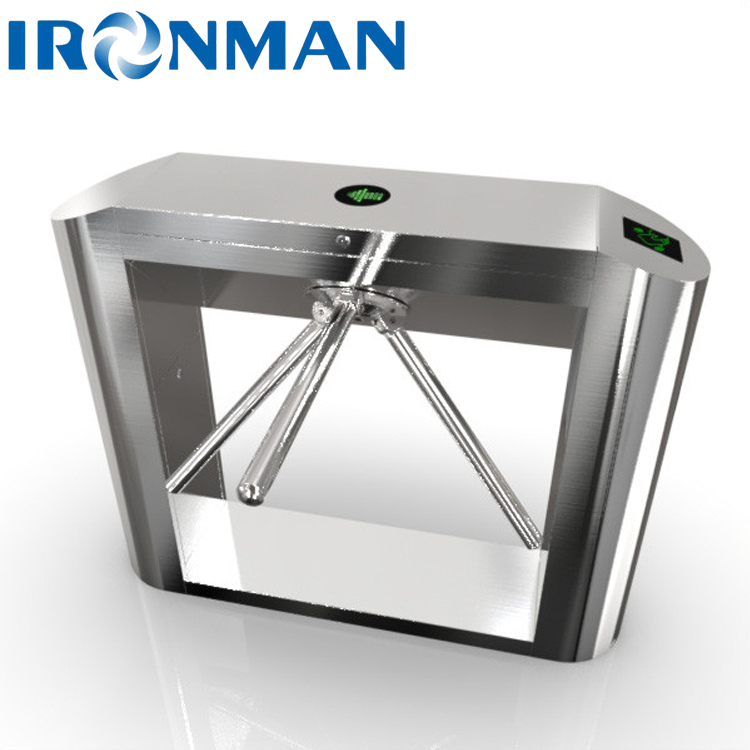

Vertical Tripod Turnstile

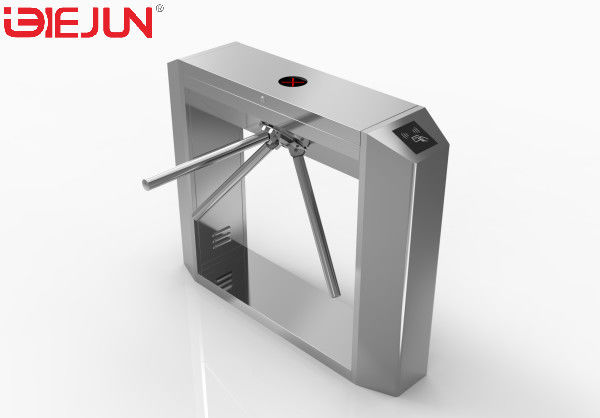

|Oblique Octagonal Tripod Turnstile Gate <TDH-S102 > Product Specifications|
|Product Icon||Document Number:|
|Product Parameters||Dimensions:||Length 1200*Width 280*Height 980mm||Box Material:||Box: Stainless Steel SUS304 Foot 1.0mm
Upper Cover: Stainless Steel SUS304 Foot 1.2mm
|Stainless steel SUS304||Channel Width:||550~600MM|
|Place:||Suitable for indoor / outdoor; Pedestrian passage places; Such as: Factory / residential area, etc;|
|Product Line Drawing:|
|Technical Parameter||◆Box material: Austenitic stainless steel SUS304
◆Internal structure: frame structure/standard stainless steel shell;
◆Power supply voltage: AC220V±10V
◆Service life: more than 5 million times of continuous opening and closing
◆Working environment temperature: -35℃～75℃
◆Relative humidity: 0～90% (no condensation)
◆Communication interface: switch electrical signal, expandable RS232 serial port
◆The working speed of the turnstile: ≤30 people/min (the memory mode can be turned on)
◆Passing time: swiping card travel time: 10S (if no one passes within 10S: the gate will automatically close, and the time can be adjusted according to needs)
|Function Parameters||Basic Function||●Traffic indication function: an LED indicator board is installed at an eye-catching position of the housing frame to remind pedestrians of the traffic status and direction of the gate.|
|●Anti illegal entry function: when card swiping is invalid, card swiping is not performed or passage is prohibited, forced push rod will be considered as illegal entry, and the system will automatically alarm and lock the brake rod (so that it cannot be pushed).|
|●Access control: external port can connect multiple biometric devices|
|●Automatic pole lowering function: when the power is off, the brake pole that plays a blocking role will automatically fall, which is convenient for evacuating the crowd and meets the fire protection requirements.|
|●Anti collision function: when the brake lever is locked, it cannot be pushed by external force, and can withstand the impact force within the safe range.|
|●Anti interference: it can prevent the abnormal gate caused by electromagnetic and other external factors|
|Expanding Function||▲Intelligent linkage alarm: including illegal intrusion, reverse passage and other alarms, it can be linked with other alarm monitoring equipment in the form of sound and light. If flash alarm is required, it is necessary to add a luminous alarm on the housing frame.|
|▲Voice broadcasting, expandable voice module, and volume adjustment|
|▲Opening / closing delay: set the delayed opening time after the gate machine receives the opening signal / set the delayed closing time after the pedestrian passes through. The default is 0 seconds|
△Normally open mode: the gate remains open
△Normally closed mode: the gate remains closed
△Bidirectional passage,swiping card bi-directionally for people flow.
△Bidirectional free passage, no credit card verification is required.
△Single directional passage, Single directional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes.
△Single directional free passage, Single directional (A) free passage, and reverse directional passing (B) require a swiping card verification.
△Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state.
