|Name:||Access Control Turnstiles||Housing:||AISI SUS304 1.5MM|
|Basic Function ●Voice Broadcast:it Has The Function Of Entering And Opening The Gate / Exiting The G:||Passage Mode||Input Voltage:||AC220V±10% ,50Hz|
|Basic Function:||Anti-interference||Application:||Factories, Office Building, Hotel|
Entrance Speed Gate Turnstile,
Speed Gate Turnstile Airport,
AC220V Metal Turnstile

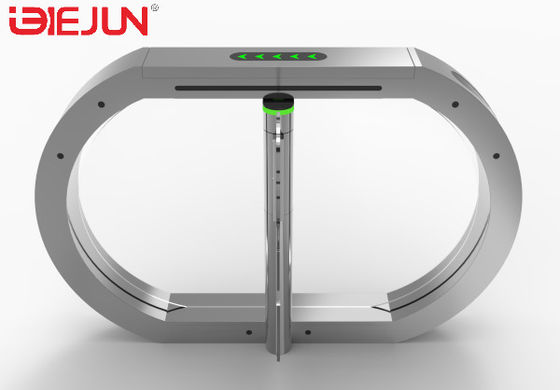

Smart Infrared Sensor Speed Gate Turnstile / Access Control Turnstile Gate
|Arc Speed Gate Turnstile <TDH-ST606> Product Specifications|
|Product Icon||Document Number:|
|Product Parameters||Dimensions:||Length 1500*Width 160*Height 980mm||Box Material:||Box: Stainless Steel SUS304 Foot 1.5mm
Upper Cover: Stainless Steel SUS304 Foot 1.5mm
|Swing Arm Material:||A:10mm Acrylic Swing Door
B:10mm Tempered Glass
|Channel Width:||Open Type; Recommended ≤1200mm|
|Product Line Drawing:|
|Technical Parameter||◆Box material: austenitic stainless steel SUS304
◆Internal structure: frame structure / stainless steel shell surface drawing, whole machine planing
◆Power supply voltage: AC220V±10V
◆Drive motor: servo motor
◆Movement structure: Planetary metal gear reducer is high-speed, precise, silent, and averagely trouble-free
◆Service life: 12 million times of continuous opening and closing
◆Infrared sensor: 8 pairs; (support more than 8 pairs of configuration)
◆Opening method: RS485 / RS232/IO
◆EMC index: antistatic level 3, air discharge 15KV
◆Lightning protection: 2KV
◆Drive motor: servo motor, high-precision clutch movement
◆Working environment: -20℃～75℃
◆Relative humidity: 0～90% (no condensation)
◆Open speed: <0.5S (adjustable)
◆Passing time: swiping card travel time: 10S (if no one passes within 10S: the gate will automatically close, and the time can be adjusted according to needs)
|Function Parameter||Basic Function||●Voice broadcast: it has the function of entering and opening the gate / exiting the gate / breaking into the voice / trailing voice / stop voice broadcasting function|
|●Intelligent linkage alarm: including sound and light alarms such as illegal intrusion and reverse traffic, which can be linked with other alarm monitoring equipment|
|●Anti-interference: It can limit the abnormality of the gate caused by external factors such as electromagnetic|
|●Passage mode setting: One-way pass, two-way pass, free pass, etc. can be set through the buttons on the main control board|
|●Anti-trailing: prevent the non-permissible situation of too many people at one time.|
|●Anti-pinch function: When the gate is in the process of closing, the gate will stop closing after detecting the anti-pinch signal|
|●Auto reset: After the gate is opened, if there is no passage within the specified time, the system will automatically cancel the user's access authority; the default is 10 seconds, and the passage time can be set by the switch|
|●Access control: The external port can connect a variety of biometric devices|
|●Power off and switch off: switch off after power off, and can set the switch opening direction|
|●Fault detection: The control board can support fault type detection, assist in analyzing the cause of the fault, and handle abnormal faults.|
|●Traffic indication: There is a traffic status indicator; and an alarm function for exceeding the stay time in the channel can be set|
|Expanding Function||▲Passing mode
△Normal: Normal passing mode
△ Passing: automatic car/electric car/motorcycle passing mode
|▲Open/close delay, set the delay opening time after the gate receives the opening signal/set the delay closing time after pedestrians pass, the default is 0 seconds|
|▲ Swipe the card in the channel
△ Disabled by default: card swiping in the channel (induction infrared area) is invalid
△Allow: Card verification is allowed in the channel.
|▲Whether the trailing and reversing are blocked by closing the door
△Do not close the gate: the reverse/trailing (A swipe card, B pass) will not close the gate
△Close the gate first and then open the gate: close the gate first for reverse/trailing traffic, and then open the gate again after closing
△Do not open the gate after closing the gate: the reverse/trailing traffic will close the gate, and the gate will not be opened again after closing
△Normally open mode: the gate remains open;
△ Normally closed mode: the gate remains closed
|▲System language function
△Chinese: The system can set the Chinese interface
△English: The system can set the English interface
△Bidirectional passage,swiping card bi-directionally for people flow.
△Bidirectional free passage, no credit card verification is required.
△Single directional passage, Single directional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes.
△Single directional free passage, Single directional (A) free passage, and reverse directional passing (B) require a swiping card verification.
△Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state.
The equipment runs smoothly, with low noise, high efficiency, space saving, and can effectively reduce security personnel. It is suitable for high-end office buildings, airports, subway stations and other places with high security requirements.
Indoor Unit can be used for: Airports, subways, libraries, office buildings, theaters, office buildings, factories, scenic spots, stations, leisure and entertainment venues, etc.
