Product Details
Place of Origin: china
Brand Name: Tiejun Turnstile
Certification: ISO9001
Model Number: TDH-PWY908
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: carton packing
Delivery Time: 8-15 work days
Payment Terms: L/C, T/T
Supply Ability: 2000 pc per/month
Name: |
Subway Turnstile |
Housing: |
AISI SUS304 1.5MM |
Basic Function: |
Anti-interference |
Basic Function ●Voice Broadcast:it Has The Function Of Entering And Opening The Gate / Exiting The G: |
Passage Mode |
Input Voltage: |
AC220V±10% ,50Hz |
Application: |
Office Buildings / Hotels / Government Halls |
Name: |
Subway Turnstile |
Housing: |
AISI SUS304 1.5MM |
Basic Function: |
Anti-interference |
Basic Function ●Voice Broadcast:it Has The Function Of Entering And Opening The Gate / Exiting The G: |
Passage Mode |
Input Voltage: |
AC220V±10% ,50Hz |
Application: |
Office Buildings / Hotels / Government Halls |

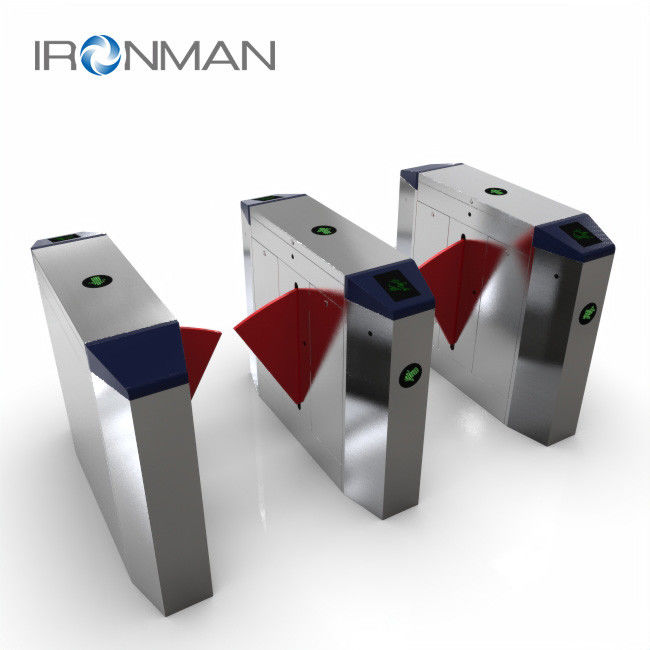

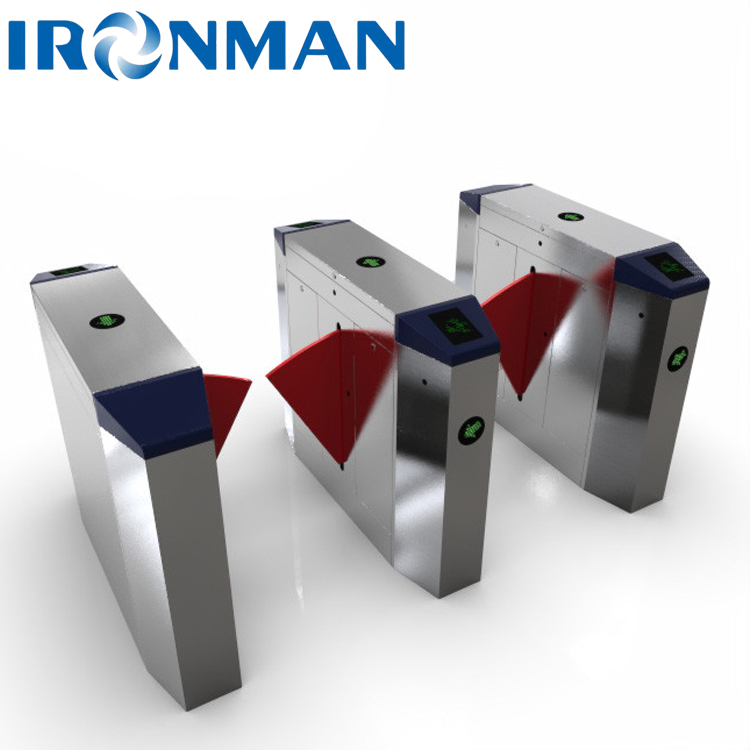

Rfid Function Swing Barrier Gate Turnstile For Subway Exit Turnstile
Product Specifications of Luxury Tickeing Wing Gate Turnstile <TDH-PWY908> | ||||
Picture of the product | Document Number: | |||
Version | A/0 | |||
Revision Time | ||||
Revised by | ||||
Product Parameters | Dimensions | 1500*300*980MM(Support customization) | Housing Material: | Housing:SUS304 1.5MM Top Cover:SUS304 2.0MM |
Wing Arm material: | 15MM Acrylic wing board/soft wing flaps optional Can support double flying wings | Channel Width: | 550MM or 600MM support 900MM double wing | |
Product Drawing: | ||||
Technical Parameter | ◆Housing Material:AISI SUS304 ◆Internal structure: frame structure/standard stainless steel shell; frosted black paint on both ends; ◆Power Voltage: AC220V±10V ◆Drive motor: DC brushless motor(24~36VDC) ◆Movement structure: full-height direct-drive movement, fixed with upper and lower screws, firmly bearing force; high-precision movement and motor direct drive, higher precision, faster opening and closing speed, longer service life (patented product); double-flying wing aircraft The operation mode of the core (optional) adopts a four-bar linkage structure, which has high stability and low noise.; ◆Service life: 5,000,000 times ◆Infrared sensor: 10 pairs (can support more than 10 pairs of configuration) ◆Working temperature:-35℃~75℃ ◆Relative humidity:0~90%(non-condensing) ◆Communication interface: RS232 serial port ◆Communication protocol: MODBUS protocol ◆Turnstile working speed: 45~50 persons/min; double-flying wing configuration ≤ 30 people/min (memory mode can be turned on) ◆Passing time: swiping card travel time: 10S (if no one passes within 10S: the gate will automatically close, and the time can be adjusted according to needs) | |||
Function parameter | Basic Function | ●Alarm function: with sound and light alarm function | ||
●Anti-interference:It can limit the abnormality of the gate caused electromagnetic and other external factors | ||||
●Traffic mode setting:One-way traffic, two-way traffic, free traffic, etc. can be set through the buttons on the main control panel | ||||
●Anti tailing: prevent the unauthorized situation of too many people at one time. | ||||
●Anti pinch function:When the gate is in the process of closing, the gate will stop closing after detecting the anti-pinch signal | ||||
●Automatic reset: after opening the gate, if the user does not pass within the specified time, the system will automatically cancel the user's permission to pass this time; The default is 10 seconds, and the traffic time can be set through the switch | ||||
●Access control: External port can connect a variety of biometric devices | ||||
●Power off and opening:switch off after power off, and the switch opening direction can be set | ||||
●Fault detection:Control board can support fault type detection,Assist in analyzing the causes of faults and handling faults and abnormalities. | ||||
●Passing indication: with passing status indicator; It can also set the alarm function of exceeding the stay time in the channel | ||||
Extension Function | ▲ Passing Mode △ Normal: normal pedestrian passing mode △ Passing: automatic vehicle / electric vehicle / motorcycle passing mode | |||
▲Voice broadcast, expandable voice module, and volume adjustment | ||||
▲Opening / closing delay, set the delay opening time after the gate turnstile receives the opening signal/set the delay closing time after pedestrians pass, the default is 0 seconds | ||||
▲Card swiping in the channel △Default forbidden: card swiping in the channel (inductive infrared area) is invalid △Permission:card swiping verification is allowed in the channel | ||||
▲Whether the trailing and reversing are blocked by closing the door △The gate Closed: the reverse/trailing (A swipe card, B pass) will not close the gate △Close the gate first and then open the gate: close the gate first for reverse/trailing traffic, and then open the gate again after closing △Do not open the gate after closing the gate: the reverse/trailing traffic will close the gate, and the gate will not be opened again after closing | ||||
▲Fire linkage △Normally open mode: the gate remains open; △Normally closed mode: the gate remains closed | ||||
▲Passage Mode △Bidirectional passage,swiping card bi-directionally for people flow. △Bidirectional free passage, no credit card verification is required. △Single directional passage, Single directional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes. △Single directional free passage, Single directional (A) free passage, and reverse directional passing (B) require a swiping card verification. △Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state. | ||||
Application
Tripod turnstile can be used in many places and is convenient for exit and entrance management, It ensures the safety of people at access relying on its intelligence control to access. The good structure also make it easy for maintenance.
