Half Height Security Gate Flap Turnstile SUS304 For Public Lobby with CE Certificate

Product Details

Place of Origin: China

Brand Name: IRONMAN

Certification: CE; FCC; ISO9001

Model Number: IM.Y306

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: Negotiation

Packaging Details: carton packing

Delivery Time: 8-15 work days

Payment Terms: L/C, T/T

Supply Ability: 2000 pc per/month

Get Best Price
Contact Now
Specifications
Highlight:

Half Height Safety Turnstile Gate

,

Safety Turnstile Gate Stainless Steel

Power Supply:
AC100-240V
Size:
1400*300*980
Name:
Flap Barrier Gate
Application:
Office / School / Park / Supermarket / Subway
Housing Material:
SUS304 Stainless Steel
Power Voltage:
Hospitals, Enterprises And Institutions
Drive Motor:
DC Brushless Motor(24~36VDC)
Service Life:
5 Million Times
Power Supply:
AC100-240V
Size:
1400*300*980
Name:
Flap Barrier Gate
Application:
Office / School / Park / Supermarket / Subway
Housing Material:
SUS304 Stainless Steel
Power Voltage:
Hospitals, Enterprises And Institutions
Drive Motor:
DC Brushless Motor(24~36VDC)
Service Life:
5 Million Times
Description

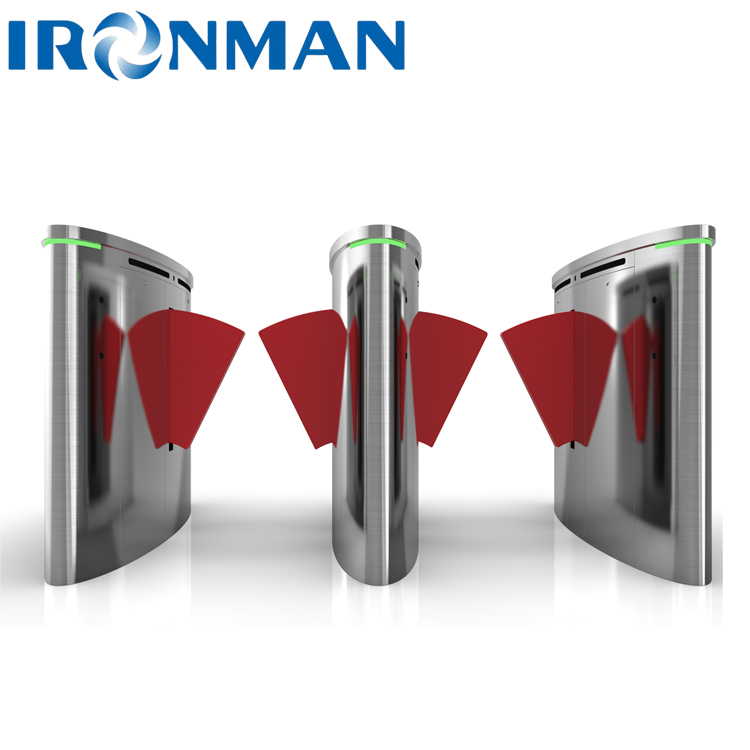

Half Height Security Gate Flap Turnstile SUS304 For Public Lobby with CE Certificate

Half Height Security Gate Flap Turnstile SUS304 For Public Lobby with CE Certificate
Half Height Security Gate Flap Turnstile SUS304 For Public Lobby with CE Certificate 0
Product Specification


Product Specifications of Flap Gate Turnstile <IM.Y306>
Product ParametersDimensions1420*30*980mmHousing Material:Housing: SUS304 stainless steel 1.5MM
Top Cover: SUS304 stainless steel 2.0MM
Wing Arm material:15MM Acrylic wing board/soft wing flaps optionalChannel width:550MM or 600MM
application:Suitable for indoor/outdoor pedestrian passages; such as: scenic spots, parks, playgrounds/primary and secondary schools/colleges/office buildings/hotels, residential quarters/factory parks/hospitals/enterprises and institutions/government halls/sports venues, etc.;

Dimension Drawing:
Half Height Security Gate Flap Turnstile SUS304 For Public Lobby with CE Certificate 1

Technical Parameter◆Housing Material:AISI SUS304
◆Internal structure: steel frame structure/standard stainless steel shell;
◆Power Voltage: AC220V±10V
◆Drive motor: DC brushless motor(24~36VDC)
◆Movement structure: full-height direct-drive movement, fixed with upper and lower screws, firmly bearing force; high-precision movement and motor direct drive, higher precision, faster opening and closing speed, longer service life (patented product); stability and low noise.;
◆Service life: 5,000,000 times
◆Infrared sensor: 4 to 6 pairs (can support 12 pairs of configuration)
◆Working temperature:-35℃~75℃
◆Relative humidity:0~90%(non-condensing)
◆Communication interface: RS232 serial port
◆Communication protocol: MODBUS protocol
◆Turnstile working speed: 45~50 people/min; double-flying wing configuration ≤ 30 people/min (memory mode can be turned on)
◆Passing time: swiping card travel time: 10S (if no one passes within 10S: the gate will automatically close, and the time can be adjusted according to needs)
Function parameterBasic Function●Alarm function: with sound and light alarm function
●Anti-interference:It can limit the abnormality of the gate caused electromagnetic and other external factors
●Traffic mode setting:One-way, two-way, free traffic, etc. can be set through the buttons on the main control panel
●Anti tailing: prevent the unauthorized situation of too many people at same time.
●Anti pinch function:When the gate is in the process of closing, the gate will stop closing after detecting the anti-pinch signal
●Automatic reset: after opening the gate, if the user does not pass within the specified time, the system will automatically cancel the user's permission to pass this time; The default is 10 seconds, and the traffic time can be set through the switch
●Access control: External port can connect a variety of biometric devices
●Power off and opening:switch off after power off, and the switch opening direction can be set
●Fault detection:Control board can support fault type detection,Assist in analyzing the causes of faults and handling faults and abnormalities.
●Passing indication: with passing status indicator; It can also set the alarm function of exceeding the stay time in the channel

Extension Function▲ Passing Mode
△ Normal: normal pedestrian passing mode
△ Passing: automatic vehicle / electric vehicle / motorcycle passing mode
▲Opening / closing delay, set the delay opening time after the gate turnstile receives the opening signal/set the delay closing time after pedestrians pass, the default is 0 seconds
▲Card swiping in the channel
△Default forbidden: card swiping in the channel (inductive infrared area) is invalid
△Permission:card swiping verification is allowed in the channel
▲Whether the trailing and reversing are blocked by closing the door
△The gate Closed: the reverse/trailing (A swipe card, B pass) will not close the gate
△Close the gate first and then open the gate: close the gate first for reverse/trailing traffic, and then open the gate again after closing
△Do not open the gate after closing the gate: the reverse/trailing traffic will close the gate, and the gate will not be opened again after closing
▲Fire linkage
△Normally open mode: the gate remains open;
△ Normally closed mode: the gate remains closed
▲System language function
△Chinese: The system can set the Chinese interface
△English: The system can set the English interface
▲Passage Mode
△Bidirectional passage,swiping card bi-directionally for people flow.
△Bidirectional free passage, no credit card verification is required.
△Single directional passage, Single directional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes.
△Single directional free passage, Single directional (A) free passage, and reverse directional passing (B) require a swiping card verification.
△Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state.
△Passing is prohibited, the two-way card swiping is invalid, and the gate enters the locked state

Projects
Half Height Security Gate Flap Turnstile SUS304 For Public Lobby with CE Certificate 2
Application
Flap Barrier Gate Turnstile is a commercial design turnstile equipped with all the latest features to speed up operation. Measuring 1400*300*980, it offers a convenient 600mm passage width. With a life span of 5 million times, it is made of stainless steel and consumes only 100W of power. This turnstile is designed for maximum security and fast operation. It can easily handle high traffic areas and is an ideal choice for commercial applications.



FAQ:

Q1: What is the Brand of IRONMAN Turnstile?
A1: The Brand of IRONMAN Speed Gate Turnstile is IRONMAN.
Q2: Where is the IRONMAN Speed Gate Turnstile made?
A2: The IRONMAN Speed Gate Turnstile is made in China.
Q3: Where do you sell IRONMAN turnstile to?
Q3: We sell IRONMAN turnstile worldwide.
Q4: Does the IRONMAN Speed Gate Turnstile have a warranty?
A4: Yes, the IRONMAN Speed Gate Turnstile comes with a two years warranty.
