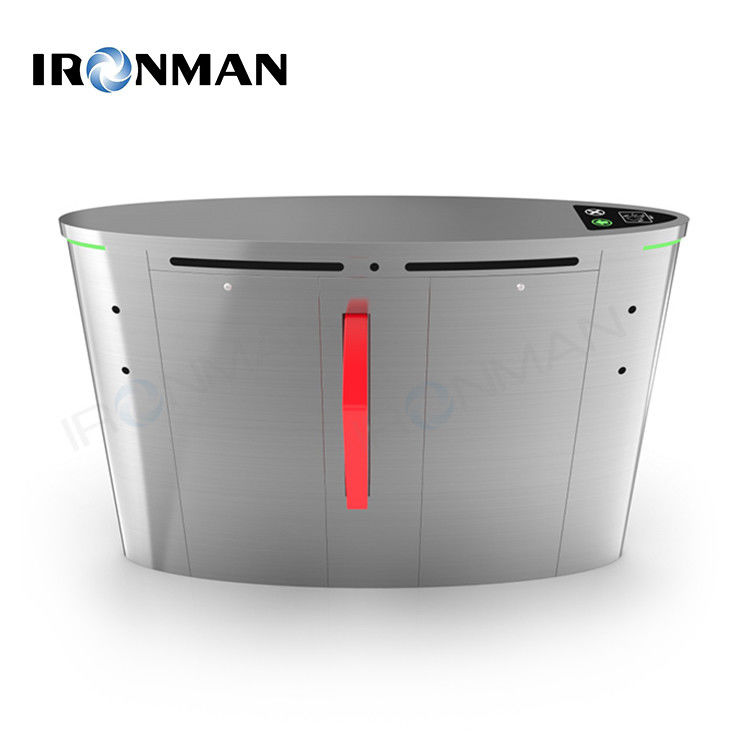

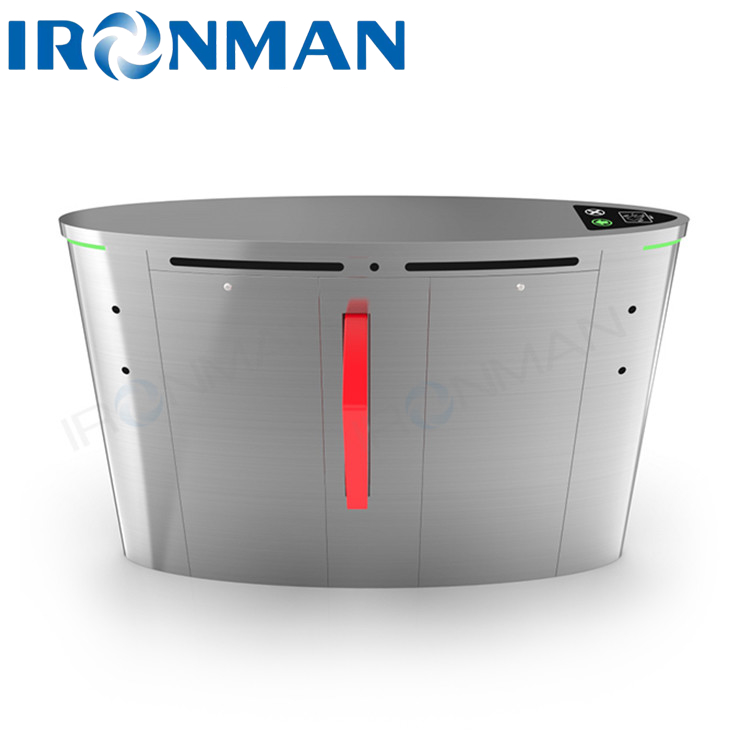

AISI SUS304 Housing Flap Barrier Turnstile with 550MM or 600MM Channel Width and 5,000,000 Times Service Life for Office Buildings and Hotels

• Housing Material: AISI SUS304
• Internal Structure: Steel frame structure / standard stainless steel shell
• Power Voltage: AC220V ±10V
• Drive Motor: DC brushless motor (24–36 VDC)
• Movement Structure: Full-height direct-drive movement, fixed with upper and lower screws for firm load bearing; high-precision movement and motor direct drive deliver higher precision, faster opening/closing speed, and longer service life (patented product); stable operation with low noise
• Service Life: 5,000,000 cycles
• Infrared Sensor: 4 to 6 pairs (supports up to 12 pairs configuration)
• Working Temperature: −35 °C to 75 °C
• Relative Humidity: 0–90% (non-condensing)
• Communication Interface: RS232 serial port
• Communication Protocol: MODBUS protocol
• Turnstile Working Speed: 45–50 people/min; double-flying wing configuration ≤ 30 people/min (memory mode can be enabled)
• Passing Time: Card swipe travel time: 10 s (if no one passes within 10 s, the gate automatically closes; the time can be adjusted as needed)

• Alarm Function: Sound and light alarm capability
• Anti-Interference: Limits gate abnormalities caused by electromagnetic and other external factors
• Traffic Mode Setting: One-way, two-way, free traffic, and other modes configurable via buttons on the main control panel
• Anti-Tailing: Prevents unauthorized passage by multiple people at the same time
• Anti-Pinch Function: When the gate is closing, it stops closing upon detecting an anti-pinch signal
• Automatic Reset: After opening, if the user does not pass within the specified time, the system automatically cancels the user's permission for that passage; default is 10 seconds, and the traffic time can be set via switch
• Access Control: External port can connect a variety of biometric devices
• Power-Off Opening: Opens after power off; the opening direction can be set
• Fault Detection: Control board supports fault type detection, assisting in analyzing causes and handling faults and abnormalities
• Passing Indication: Passing status indicator provided; alarm function for exceeding stay time in the channel can also be set

• Normal: Normal pedestrian passing mode
• Passing: Automatic vehicle / electric vehicle / motorcycle passing mode

• Set the delay opening time after the turnstile receives the opening signal, or set the delay closing time after pedestrians pass; default is 0 seconds

• Default Forbidden: Card swiping in the channel (inductive infrared area) is invalid
• Permission: Card swiping verification is allowed in the channel

• Gate Closed: Reverse/trailing traffic (A swipes card, B passes) will not close the gate
• Close Gate First, Then Open: Close the gate first for reverse/trailing traffic, then open again after closing
• Do Not Open After Closing: Reverse/trailing traffic closes the gate, and the gate will not open again after closing

• Normally Open Mode: The gate remains open
• Normally Closed Mode: The gate remains closed

• Chinese: The system can be set to the Chinese interface
• English: The system can be set to the English interface

• Bidirectional Passage: Card swiping in both directions for people flow
• Bidirectional Free Passage: No card verification required
• Single Directional Passage: Single directional (A) card swiping opens the gate normally for people flow; reverse directional (B) card swiping is invalid and the gate closes
• Single Directional Free Passage: Single directional (A) free passage; reverse directional (B) passage requires card swiping verification
• Passing Prohibited: Bidirectional card swiping is invalid and the gate enters the locked state

Suitable for commercial buildings, subways, airports, customs, exhibition halls, government buildings, financial institutions, clubs, and other high-end indoor applications.
