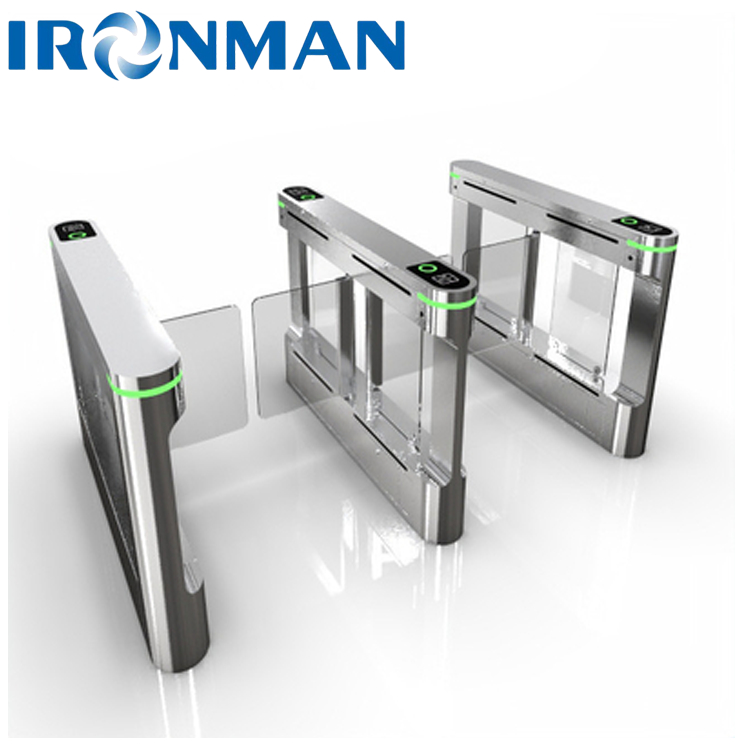

High Safety Facial Recognition Gates Digital Turnstile With Remote Control

Construction background

The medical industry bears the brunt of the attack of the new coronary pneumonia virus. In order to ensure the medical order during the epidemic prevention and control period, it is committed to serving the epidemic prevention and control work. Tiejun Intelligent Technology launched a security intelligent access control platform with star real name system health code. The platform uses artificial intelligence technology to transform the traditional gate, which can realize the core functions of health code recognition, temperature detection, ID card face comparison, improve the access management efficiency of medical places, and strengthen the security management at the same time.

Solution

Personnel who enter the hospital with ID cards can use their own ID cards to swipe their cards to measure temperature and upload their faces to the Yuekang Code platform for verification; For those without ID card, they can use the Yuekang code to scan the code, brush the face, and upload the temperature to the Yuekang code platform for verification.

All channels are equipped with remote control, and any channel can be randomly designated to be normally opened and closed with remote control; In case of emergency and special circumstances, remote control can be used for normal open traffic; In case of power failure, the gate channel immediately becomes a fire fighting channel. All channels will be automatically opened for normal traffic.

The gate channel is equipped with audible and visual alarm for unauthenticated illegal intrusion, and the alarm for abnormal verification of face temperature and Yuekang code platform does not open the door.

The temperature measurement face gate channel is equipped with mask detection and reminder without mask; Verify face temperature voice broadcast.

1. Boundary dimension: 1400 * 180 * 1020mm in length * width * height;

2. Material: 304 stainless steel;

3. Power supply voltage: AC220V ± 10%, 50Hz;

4. Drive motor: DC motor 24V; 4 pairs of infrared detection;

5. Working environment temperature: - 30 ℃~+70 ℃;

6. Relative humidity: relative humidity ≤ 95%, no condensation;

7. Input interface: 12V level signal or 12V pulse signal with pulse width ＞ 100ms;

8. Driving current: ＞ 200mA;

9. Communication interface: RS485 electrical standard;

10. Communication distance: ≤ 1200m;

11. Maximum channel width: 800-1000mm;
