|Name:||Train Station Turnstiles||Application:||Scenic Spots, Parks, Playgrounds|
|Communication Interface:||RS232 Serial Port||Driving Motor:||DC Brushless Motor(24~36VDC)|
|Work Voltage::||AC220V±10V||Box Material:||Stainless Steel SUS304|
Dust Proof Train Station Turnstiles,
Train Station Turnstiles SUS304,
ISO 9001 Card Access Turnstile
|Oblique Octagonal Swing Gate <TDH-B209> Product Specifications|

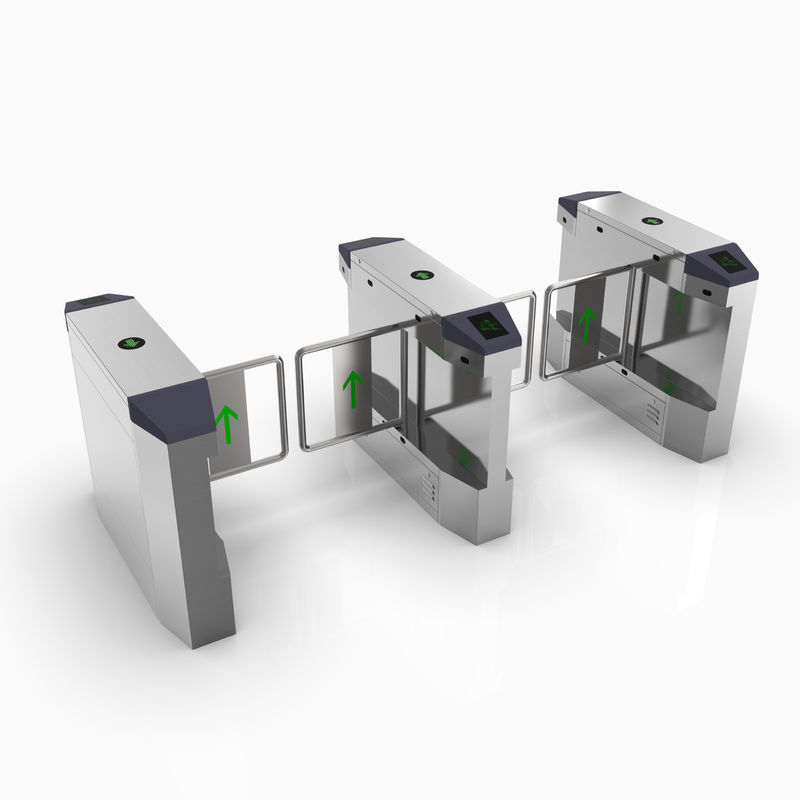

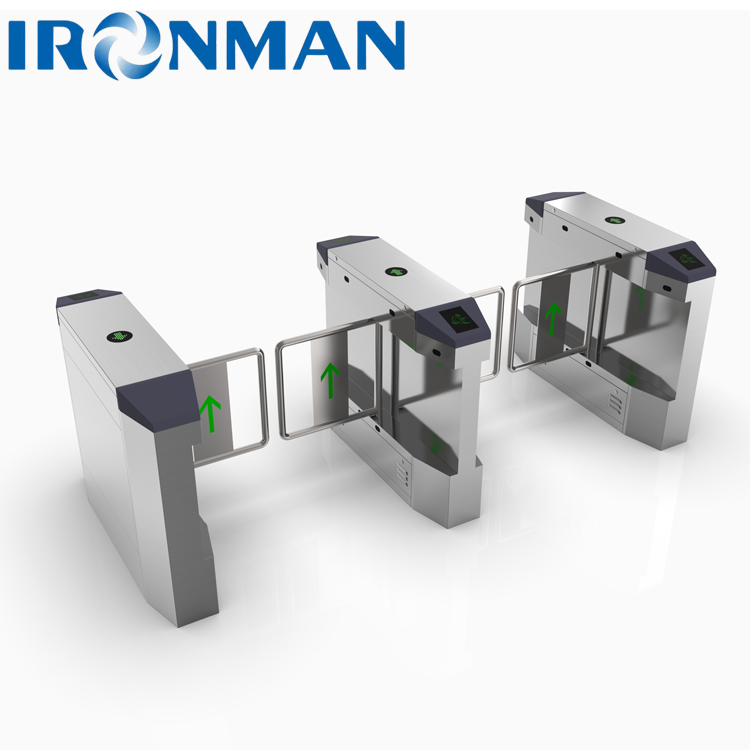

|Product Images||Document Number:|
|Product Parameters||Dimensions:||1200*280*980mm||Box Material:||Box: stainless steel SUS304 foot 0.8mm
Top Cover: stainless steel SUS304 foot1.2mm
|Swing Arm Material:||A:Stainless steel SUS304 elbow
B:10MM Acrylic swing door
|Product Line Drawings:|
|Technical Parameters||◆Chassis Material: Austenitic stainless steel SUS304
◆Internal Structure: Steel Frame Construction, plastic module outdoor PC material (10 years warranty)
◆Work Voltage: AC220V±10V
◆Driving Motor: DC brushless motor(24~36VDC)
◆Movement Structure: Horizontal helical gear anti-collision movement
◆Normal Work Life: Continuous opening and closing for more than 5 million times
◆Infrared Sensors: 4~6 pairs
◆Working Environment Temperature: -35℃～75℃
◆Relative Humidity: 0～90% (No condensation)
◆Communication Interface: RS232 serial port
◆Communication Protocol: MODBUS protocol
◆Working Speed of the Gate: ≤30 persons/min (The memory mode can be turned on)
◆Passing Time: passing time by swiping card: 10S (If no one passes within 10S: the gate will automatically close, and the time can be adjusted according to needs)
|Function Parameters||Basic Functions||●Alarm Function: Sound and light alarm function.|
|●Anti-interference: To prevent the gate abnormal caused by electromagnetic and other external causes.
|●Passage Mode Setting: Unidirectional passage, bidirectional passage and free passage can be set through the main control board keys.|
|●Anti-tailgating: To prevent the unpermitted situation of passing too many people at once.|
|● Anti-clamp Function: When the brake is in the process of closing, the brake will stop closing after detecting the anti-clamp signal.|
|●Self-reset. Pass right will be canceled if people do not go through within a set time, the default time is 10s, and the passage time can be set by switch.|
|●Access Control: The external port can be connected to a variety of biometric identification devices.|
|●The gate opens after power failure.|
|●Fault Detection: The control board can support fault type detection, fault cause analysis, and fault troubleshooting.|
|●Passing Indicator: Traffic status indicator light; the alarm function of overstay time in the channel can be set.|
|Extensible Functions||▲Passing Mode
△Normal: Normal passing mode.
△Passing: automatic car/electric car/motorcycle passing mode.
|▲Voice broadcast, expandable voice module, and volume adjustment.|
|▲Switch on/Switch off Delay: set the delay of switch off after the switch machine receives the switch off signal/set the delay of switch off after the pedestrian passes. The default value is 0 seconds.|
|▲Swipe Card in the Channel
△Default Disable: Card swiping in the channel (in the inductive infrared region) is invalid
△Allow: Swipe card verification is allowed in the channel.
|▲ Whether the Trailing and Reversing are Blocked by Closing the Door
△Not close: Reverse passage /tailgating (A swips the card, B passes) will not close the gate.
△Close the gate and then open the gate: Reverse/trailing passage will close the gate first, and open the gate again after closing.
△Not open after closing: reverse/trailing passage will close the gate, and will not open again after closing the gate.
△Normally open mode: the gate maintains the open state;
△ Normally closed mode: the gate maintains the switch state.
△Bidirectional passage,swiping card bi-directionally for people flow.
△Bidirectional free passage, no credit card verification is required.
△Unidirectional passage, unidirectional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes.
△Unidirectional free passage, unidirectional (A) free passage, and reverse directional passing (B) require a swiping card verification.
△Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state.
Suitable for indoor / outdoor pedestrian passages; such as: scenic spots, parks, playgrounds / primary and secondary schools / colleges / office buildings / hotels / residential quarters / factory parks / hospitals / enterprises and institutions / government halls / sports venues, etc.;
