| Place of Origin: | china |
| Brand Name: | Tiejun Turnstile |
| Certification: | ISO9001 |
| Model Number: | TDH-XB201 |
| Arc Small Swing Gate <TDH-B201> Product Specifications | ||||

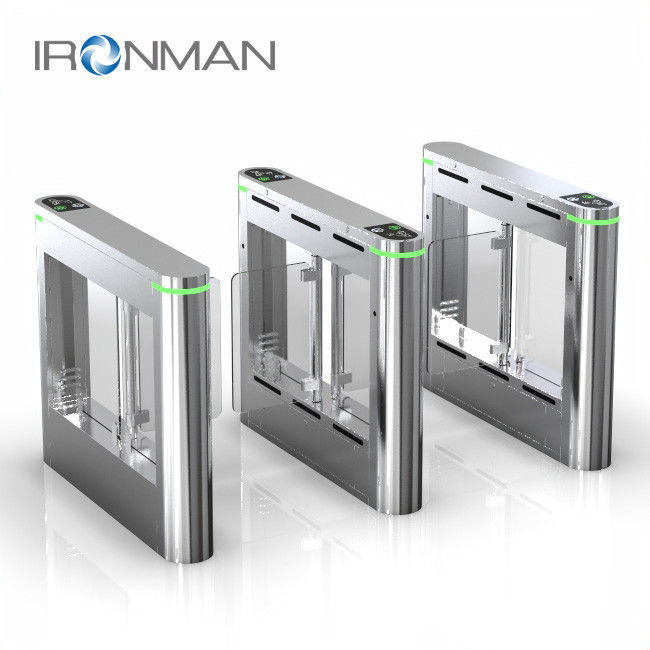

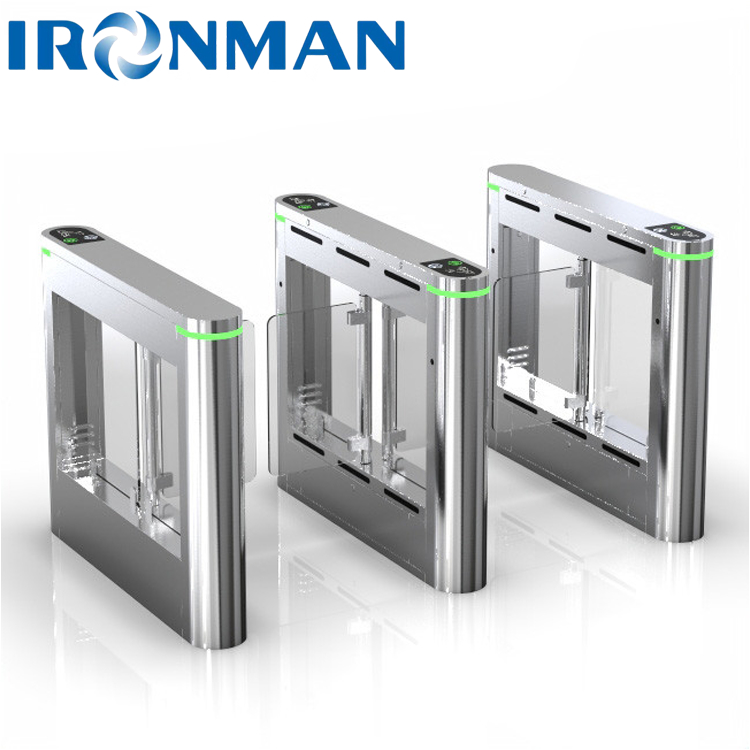

| Product Images |
Document Number: | |||
| Edition: | A/2 | |||
| Revision Time: | 2022/8/29 | |||
| Revised by: | ||||
| Product Parameters | Dimensions: | 1200*180*1020mm | Box Material: | Top Cover: stainless steel SUS304 foot 1.2mm Box: stainless steel SUS304 foot 1.0mm |
| Swing Arm Material: | 10MM Acrylic (Stainless steel elbow is optional) | Channel Width: | ≤830mm | |
| Product Line Drawings: |
||||
| Technical Parameters | ◆Chassis Material: Austenitic stainless steel SUS304 ◆Internal Structure: Steel Frame Construction/Standard Stainless Steel Housing ◆Work Voltage: AC220V±10V ◆Driving Motor: DC brushless motor(24~36VDC) ◆Movement Structure: Horizontal helical gear anti-collision movement ◆Normal Work Life: Continuous opening and closing for more than 5 million times ◆Infrared Sensors: 4 pairs; 8 pairs can be selected ◆Working Environment Temperature: -35℃～75℃ ◆Relative Humidity: 0～90% (No condensation) ◆Communication Interface: RS232 serial port ◆Communication Protocol: MODBUS protocol ◆Working Speed of the Gate: ≤30 persons/min (The memory mode can be turned on) ◆Passing Time: passing time by swiping card: 10S (If no one passes within 10S: the gate will automatically close, and the time can be adjusted according to needs) |
|||
| Function Parameters | Basic Functions | ●Alarm Function: Sound and light alarm function. | ||
| ●Anti-interference: To prevent the gate abnormal caused by electromagnetic and other external causes. |
||||
| ●Passage Mode Setting: Unidirectional passage, bidirectional passage and free passage can be set through the main control board keys. | ||||
| ●Anti-tailgating: To prevent the unpermitted situation of passing too many people at once. | ||||
| ● Anti-clamp Function: When the brake is in the process of closing, the brake will stop closing after detecting the anti-clamp signal. | ||||
| ●Self-reset. Pass right will be canceled if people do not go through within a set time, the default time is 10s, and the passage time can be set by switch. | ||||
| ●Access Control: The external port can be connected to a variety of biometric identification devices. | ||||
| ●The gate opens after power failure. | ||||
| ●Fault Detection: The control board can support fault type detection, fault cause analysis, and fault troubleshooting. | ||||
| ●Passing Indicator: Traffic status indicator light; the alarm function of overstay time in the channel can be set. | ||||
| Extensible Functions | ▲Passing Mode △Normal: Normal passing mode. △Passing: automatic car/electric car/motorcycle passing mode. |
|||
| ▲Switch on/Switch off Delay: set the delay of switch off after the switch machine receives the switch off signal/set the delay of switch off after the pedestrian passes. The default value is 0 seconds. | ||||
| ▲Swipe Card in the Channel △Default Disable: Card swiping in the channel (in the inductive infrared region) is invalid △Allow: Swipe card verification is allowed in the channel. |
||||
| ▲ Whether the Trailing and Reversing are Blocked by Closing the Door △Not close: Reverse passage /tailgating (A swips the card, B passes) will not close the gate. △Close the gate and then open the gate: Reverse/trailing passage will close the gate first, and open the gate again after closing. △Not open after closing: reverse/trailing passage will close the gate, and will not open again after closing the gate. |
||||
| ▲Fire Linkage △Normally open mode: the gate maintains the open state; △ Normally closed mode: the gate maintains the switch state. |
||||
| ▲Passage Mode △Bidirectional passage,swiping card bi-directionally for people flow. △Bidirectional free passage, no credit card verification is required. △Unidirectional passage, unidirectional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes. △Unidirectional free passage, unidirectional (A) free passage, and reverse directional passing (B) require a swiping card verification. △Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state. |
||||
Product Description
The equipment runs smoothly, with low noise, high efficiency, space saving, and can effectively reduce security personnel. It is suitable for high-end office buildings, airports, subway stations and other places with high security requirements.
