Product Details
Place of Origin: china
Brand Name: Tiejun Turnstile
Certification: ISO9001
Model Number: TDH-b206
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: carton packing
Delivery Time: 8-15 work days
Payment Terms: L/C, T/T
Supply Ability: 2000 pc per/month
Name: |
Facial Recognition Turnstile |
Power Voltage: |
AC220V±10%, 50Hz±10% |
Main-board Voltage: |
12V DC |
Passing Speed: |
40 Persons/min |
Passage Width: |
600mm ~1150mm |
Opening / Closing Time: |
0.1 Seconds |
Name: |
Facial Recognition Turnstile |
Power Voltage: |
AC220V±10%, 50Hz±10% |
Main-board Voltage: |
12V DC |
Passing Speed: |
40 Persons/min |
Passage Width: |
600mm ~1150mm |
Opening / Closing Time: |
0.1 Seconds |

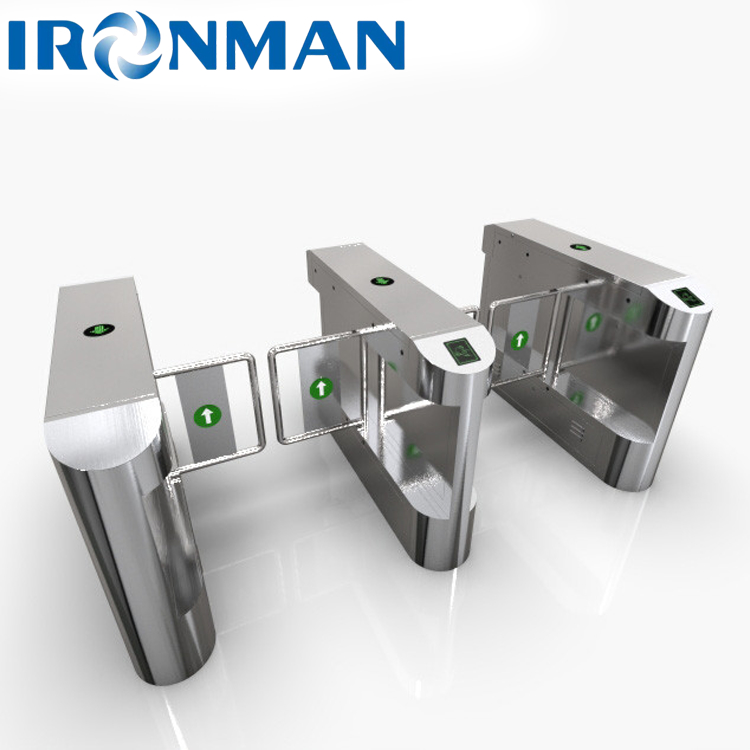

Playground Zoo Museum Swing Gate Turnstile Swing Barrier Gate With Ticketing System
| Product Name: | Speed Stile Pedestrian Swing Gate Turnstile Integration With Access Control System | Standard Size: | 1400(L)*260(W)*1060(H)mm |
|---|---|---|---|
| Driving Motor: | Brushless Motor | Material Swing: | Acrylic Or Tempered Glass |
| Pass Speed: | 35-40 Persons/min | Environment: | Indoor And Outdoor |
| Working Life: | 5 Millions | Warrenty: | 12 Month |
| High Light: |
Playground Swing Gate Turnstile,Brushless motor Swing Gate Turnstile,Ticketing System Swing Barrier Gate |
||
PRODUCT DESCRIPTIONS
| Swing Turnstile gate is a device used for pedestrian channel entry/exit management. With quick openning, safety and convenient features, it is the ideal management equipment for pedestrian high frequency access. |
| 2. The device housing are formed by inported SUS#304 stainless steel stamping, beautiful and generous shape, anti-rust, durable. |
| 3. Standard electrical interface for external use, easily integrated with RFID card reader, barcode reader, fingerprint, face recognition, iris recognition etc. |
| 4. Specially designed to meet the fire requirements of the function, convenient for people to evacuate in an emergency. |
| 5. Optical Turnstiles are suit for elegant and luxury entrance solutions. |
SPECIFICATIONS
| Framework | 304# Stainless Steel (default), or 316# Stainless Steel or paint (optional) |
| Thickness of ply | 1.5/2.0mm |
| Swing arm material | Tempered glass or Acrylic |
| Stretching out swing length | 250mm~550mm |
| The inductive card reader dimension | equipped with the standard mounting brackets or tailor. |
| Machine center | Germany technological motor |
| Power voltage | AC220V±10%, 50Hz±10% |
| Driver motor | DC brushless motor |
| Main-board voltage | 12V DC |
| sensor detection | 6pairs/passageway |
| Passing speed in normally open mode | 40 persons/min |
| Passing speed in normally closed mode | 30-35 persons/min |
| Passage Width | 600mm ~1150mm |
| Swing arm transmission angle | 180° |
| Swinging direction | unidirectional or bi-directional |
| Opening / closing time | 0.1 seconds |
| The time required to running state after power on | 3 seconds |
| Automatic reset time after the failure | 1 seconds |
| Mean time to failure | 5 million |
| Operation temperature | -10℃ ~ +70℃ |
| Relative humidity | less than 95% not condensed |
| Working Environment | Indoor/Outdoor (with rain-tent cover) |
| Input port | relay dry contact signal; +12V level signal, pulse width >100ms, DC12V pulse signal |
| Communications port |
RS232 electric standard, communications range ≤1200m. Available to connect with external CAN BUS and Ethernet
|
Swing Gate Turnstile Key Features:
• The lanes can be configured for entry, exit or bi-directional access.
• The acrylic will retract upon receiving valid signal and close immediately after the pedestrian crosses.
• The side hinge door provides an easy avenue for maintenance .
• Customization to include card reader, biometric finger print, ticket collection etc., is possible.
• Each lanes comes with Infrared (IR) beam sensor to ensure safe access. It can be extended to detect 3 levels of heights, including height of children, which are lower.
• The motor will disengage when an object tires to block the flap from closing, providing an additional safety mechanism for the pedestrian.
