| Place of Origin: | china |
| Brand Name: | Tiejun Turnstile |
| Certification: | ISO9001 |
| Model Number: | TDH-S102 |

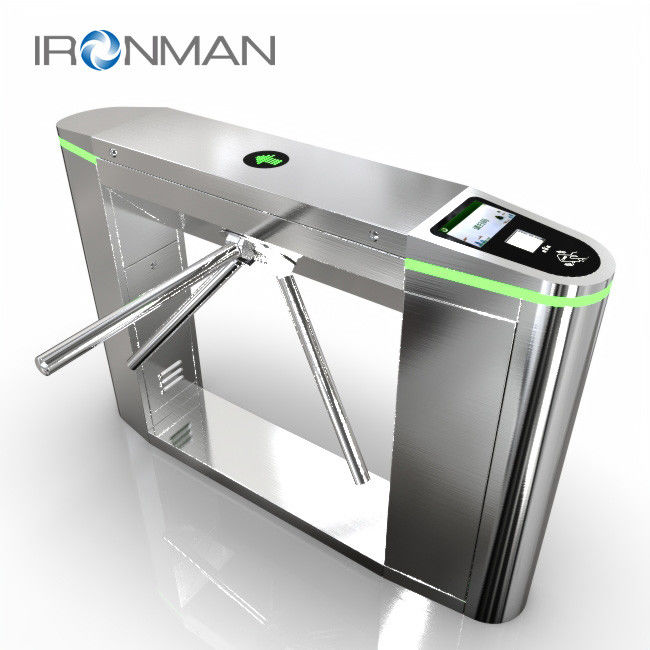

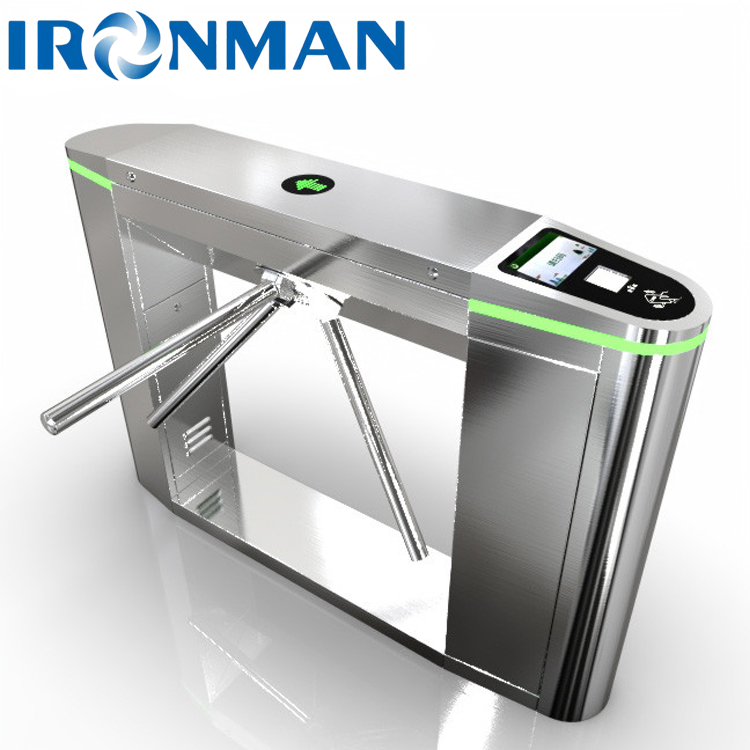

| Circular Three Tripod Turnstile Gate <TDH-S103> Product Specifications | ||||
| Document Number: | ||||
| Edition: | A/0 | |||
| Revision Time: | ||||
| Revised By: | ||||
| Product Parameters | Dimensions: | Length 1200*Width 260*Height 980mm | Box Material: | Box: Stainless Steel SUS304 Foot 1.0mm Upper Cover: Stainless Steel SUS304 Foot 1.2mm |
| Brake Rod Material: |
Stainless steel SUS304 | Channel Width: | 550~600MM | |
| Place: | Suitable for indoor / outdoor; Pedestrian passage places; Such as: Factory / residential area, etc; | |||
| Technical Parameter | ◆Box material: Austenitic stainless steel SUS304 ◆Internal structure: frame structure/standard stainless steel shell; ◆Power supply voltage: AC220V±10V ◆Service life: more than 5 million times of continuous opening and closing ◆Working environment temperature: -35℃～75℃ ◆Relative humidity: 0～90% (no condensation) ◆Communication interface: switch electrical signal, expandable RS232 serial port ◆The working speed of the turnstile: ≤30 people/min (the memory mode can be turned on) ◆Passing time: swiping card travel time: 10S (if no one passes within 10S: the gate will automatically close, and the time can be adjusted according to needs) |
|||
| Function Parameters | Basic Function | ●Traffic indication function: LED indication board is installed in the conspicuous part of the housing frame to remind pedestrians the passage status and passage direction of the turnstile. | ||
| ●Anti-illegal break-in function: When the swipe card is invalid, no card swipe or passage is prohibited, forcing the push rod will be regarded as illegal break-in, and the system will automatically alarm and lock the brake rod (so that it cannot be pushed). | ||||
| ●Access control: The external port can connect a variety of biometric devices | ||||
| ●Automatic drop bar function: when the power is cut off, the brake bar that acts as a barrier will drop automatically, which is convenient for crowd evacuation and meets fire protection requirements. | ||||
| ●Anti-collision function: When the brake lever is locked, it cannot be pushed by external force, and it can withstand the collision force within a safe range. | ||||
| ●Anti-interference: It can limit the abnormality of the gate caused by external factors such as electromagnetic | ||||
| Expanding Function | ▲Intelligent linkage alarm: including illegal intrusion, reverse traffic and other alarms, it can be linked with other alarm monitoring equipment, and can be in the form of sound and light. If a flash alarm is required, a luminous alarm must be added to the housing frame. | |||
| ▲Voice broadcast, expandable voice module, and volume adjustment | ||||
| ▲Open/close delay, set the delay opening time after the gate receives the opening signal/set the delay closing time after pedestrians pass, the default is 0 seconds | ||||
| ▲Fire linkage △Normally open mode: the gate remains open △Normally closed mode: the gate remains closed |
||||
| ▲Passage Mode △Bidirectional passage,swiping card bi-directionally for people flow. △Bidirectional free passage, no credit card verification is required. △Single directional passage, Single directional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes. △Single directional free passage, Single directional (A) free passage, and reverse directional passing (B) require a swiping card verification. △Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state. |
||||
