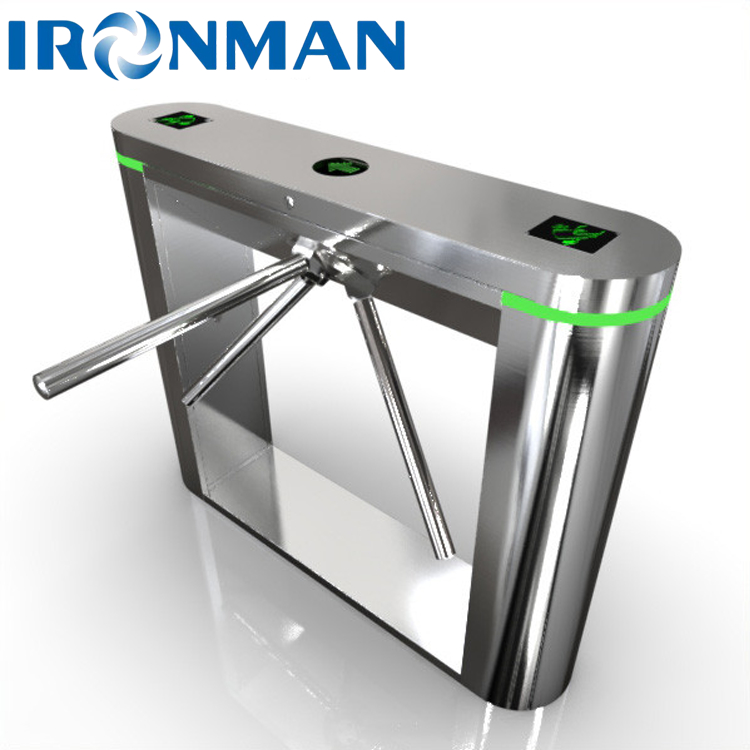

Card Reader Tripod Turnstile Gate Stainless Steel Arm Automatically Drop Down

Product Details

Place of Origin: china

Brand Name: Tiejun Turnstile

Certification: ISO9001

Model Number: TDH-S103

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: Negotiation

Packaging Details: carton packing

Delivery Time: 8-15 work days

Payment Terms: L/C, T/T

Supply Ability: 2000 pc per/month

Get Best Price
Contact Now
Specifications
Highlight:

Card Reader Tripod Turnstile Gate

,

Tripod Turnstile Gate Stainless Steel

,

Card Reader Turnstile

Name:
Tripod Turnstile Gate Entrance
Application:
Factory / Residential Area
Power Supply Voltage:
AC220V±10V
Brake Rod Material:
Stainless Steel SUS304
Channel Width:
550~600MM
Function:
Anti-interference , Anti-collision Function
Name:
Tripod Turnstile Gate Entrance
Application:
Factory / Residential Area
Power Supply Voltage:
AC220V±10V
Brake Rod Material:
Stainless Steel SUS304
Channel Width:
550~600MM
Function:
Anti-interference , Anti-collision Function
Description
Card Reader Tripod Turnstile Gate Stainless Steel Arm Automatically Drop Down
Circular Three Tripod Turnstile Gate <TDH-S103> Product Specifications
Product Icon Document Number:
Edition: A/0
Revision Time:
Revised By:

Product Parameters Dimensions: Length 1200*Width 260*Height 980mm Box Material: Box: Stainless Steel SUS304 Foot 1.0mm
Upper Cover: Stainless Steel SUS304 Foot 1.2mm
Brake Rod
Material:
Stainless steel SUS304 Channel Width: 550~600MM
Technical Parameter ◆Box material: Austenitic stainless steel SUS304
◆Internal structure: frame structure/standard stainless steel shell;
◆Power supply voltage: AC220V±10V
◆Service life: more than 5 million times of continuous opening and closing
◆Working environment temperature: -35℃~75℃
◆Relative humidity: 0~90% (no condensation)
◆Communication interface: switch electrical signal, expandable RS232 serial port
◆The working speed of the turnstile: ≤30 people/min (the memory mode can be turned on)
◆Passing time: swiping card travel time: 10S (if no one passes within 10S: the gate will automatically close, and the time can be adjusted according to needs)
Function Parameters Basic Function ●Traffic indication function: LED indication board is installed in the conspicuous part of the housing frame to remind pedestrians the passage status and passage direction of the turnstile.
●Anti-illegal break-in function: When the swipe card is invalid, no card swipe or passage is prohibited, forcing the push rod will be regarded as illegal break-in, and the system will automatically alarm and lock the brake rod (so that it cannot be pushed).
●Access control: The external port can connect a variety of biometric devices
●Automatic drop bar function: when the power is cut off, the brake bar that acts as a barrier will drop automatically, which is convenient for crowd evacuation and meets fire protection requirements.
●Anti-collision function: When the brake lever is locked, it cannot be pushed by external force, and it can withstand the collision force within a safe range.
●Anti-interference: It can limit the abnormality of the gate caused by external factors such as electromagnetic

Expanding Function ▲Intelligent linkage alarm: including illegal intrusion, reverse traffic and other alarms, it can be linked with other alarm monitoring equipment, and can be in the form of sound and light. If a flash alarm is required, a luminous alarm must be added to the housing frame.
▲Voice broadcast, expandable voice module, and volume adjustment
▲Open/close delay, set the delay opening time after the gate receives the opening signal/set the delay closing time after pedestrians pass, the default is 0 seconds
▲Fire linkage
△Normally open mode: the gate remains open
△Normally closed mode: the gate remains closed
▲Passage Mode
△Bidirectional passage,swiping card bi-directionally for people flow.
△Bidirectional free passage, no credit card verification is required.
△Single directional passage, Single directional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes.
△Single directional free passage, Single directional (A) free passage, and reverse directional passing (B) require a swiping card verification.
△Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state.



Application

Tripod turnstile can be used in many places and is convenient for exit and entrance management, It ensures the safety of people at access relying on its intelligence control to access. The good structure also make it easy for maintenance.
