|Name:||Tripod Turnstile||Application:||Hotels / Residential Quarters|
|Power Supply Voltage:||AC220V±10V||Brake Rod Material:||Stainless Steel SUS304|
|Channel Width:||550~600MM||Function:||Anti-interference , Anti-collision Function|
304 Stainless Steel Turnstiles,
Turnstiles Access Control

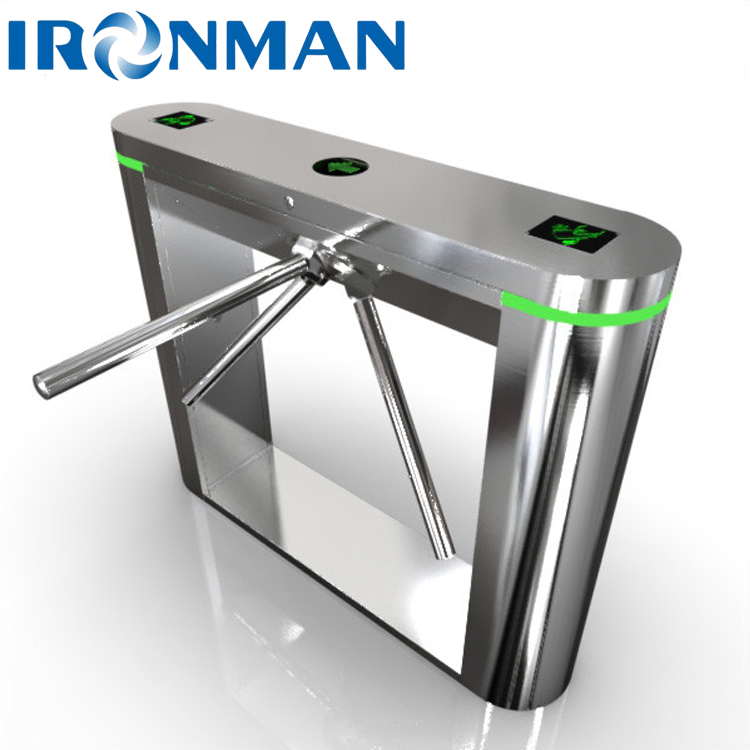

|Circular Three Tripod Turnstile Gate <TDH-S103> Product Specifications|
|Product Icon||Document Number:|
|Product Parameters||Dimensions:||Length 1200*Width 260*Height 980mm||Box Material:||Box: Stainless Steel SUS304 Foot 1.0mm
Upper Cover: Stainless Steel SUS304 Foot 1.2mm
|Stainless steel SUS304||Channel Width:||550~600MM|
|Place:||Suitable for indoor / outdoor; Pedestrian passage places; Such as: Factory / residential area, etc;|
|Technical Parameter||◆Box material: Austenitic stainless steel SUS304
◆Internal structure: frame structure/standard stainless steel shell;
◆Power supply voltage: AC220V±10V
◆Service life: more than 5 million times of continuous opening and closing
◆Working environment temperature: -35℃～75℃
◆Relative humidity: 0～90% (no condensation)
◆Communication interface: switch electrical signal, expandable RS232 serial port
◆The working speed of the turnstile: ≤30 people/min (the memory mode can be turned on)
◆Passing time: swiping card travel time: 10S (if no one passes within 10S: the gate will automatically close, and the time can be adjusted according to needs)
|Function Parameters||Basic Function||●Traffic indication function: LED indication board is installed in the conspicuous part of the housing frame to remind pedestrians the passage status and passage direction of the turnstile.|
|●Anti-illegal break-in function: When the swipe card is invalid, no card swipe or passage is prohibited, forcing the push rod will be regarded as illegal break-in, and the system will automatically alarm and lock the brake rod (so that it cannot be pushed).|
|●Access control: The external port can connect a variety of biometric devices|
|●Automatic drop bar function: when the power is cut off, the brake bar that acts as a barrier will drop automatically, which is convenient for crowd evacuation and meets fire protection requirements.|
|●Anti-collision function: When the brake lever is locked, it cannot be pushed by external force, and it can withstand the collision force within a safe range.|
|●Anti-interference: It can limit the abnormality of the gate caused by external factors such as electromagnetic|
|Expanding Function||▲Intelligent linkage alarm: including illegal intrusion, reverse traffic and other alarms, it can be linked with other alarm monitoring equipment, and can be in the form of sound and light. If a flash alarm is required, a luminous alarm must be added to the housing frame.|
|▲Voice broadcast, expandable voice module, and volume adjustment|
|▲Open/close delay, set the delay opening time after the gate receives the opening signal/set the delay closing time after pedestrians pass, the default is 0 seconds|
△Normally open mode: the gate remains open
△Normally closed mode: the gate remains closed
△Bidirectional passage,swiping card bi-directionally for people flow.
△Bidirectional free passage, no credit card verification is required.
△Single directional passage, Single directional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes.
△Single directional free passage, Single directional (A) free passage, and reverse directional passing (B) require a swiping card verification.
△Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state.
