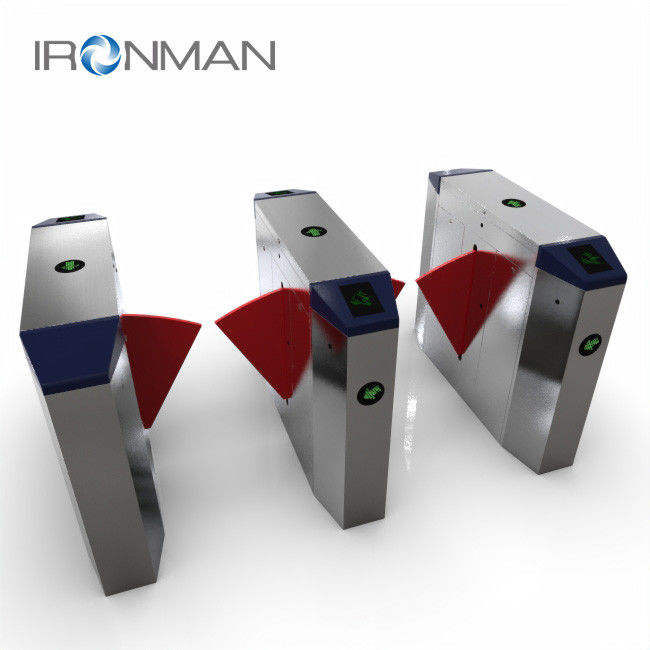

Automatic Flap Barrier Turnstile Brushless Motor Turnstile Gate Face Recognition RFID NFC Access Control for Gym

• Alarm function: Sound and light alarm capability.
• Anti-interference: Limits gate abnormalities caused by electromagnetic and other external factors.
• Traffic mode setting: One-way, two-way, free traffic, and other modes configurable via buttons on the main control panel.
• Anti-tailing: Prevents unauthorized passage of multiple people at the same time.
• Anti-pinch function: When the gate is closing, it stops closing upon detecting the anti-pinch signal.
• Automatic reset: After opening, if the user does not pass within the specified time, the system automatically cancels the current passage permission. Default is 10 seconds; passage time is adjustable via switch.
• Access control: External port connects to a variety of biometric devices.
• Power-off opening: Gate opens when power is cut off; opening direction is configurable.
• Fault detection: Control board supports fault-type detection to assist in analyzing and handling faults and abnormalities.
• Passing indication: Passage status indicator included; alarm function for exceeding stay time in the channel can also be set.

• Normal: Standard pedestrian passing mode.
• Passing: Automatic vehicle / electric vehicle / motorcycle passing mode.

Set the delay opening time after the turnstile receives the opening signal, or set the delay closing time after pedestrians pass. Default is 0 seconds.

• Default forbidden: Card swiping in the channel (inductive infrared area) is invalid.
• Permission: Card swiping verification is allowed in the channel.

• Gate closed: Reverse/trailing traffic (A swipes card, B passes) will not close the gate.
• Close first, then open: Close the gate first for reverse/trailing traffic, then reopen after closing.
• Do not open after closing: Reverse/trailing traffic closes the gate, and the gate will not reopen after closing.

• Normally open mode: The gate remains open.
• Normally closed mode: The gate remains closed.

• Chinese: The system can be set to the Chinese interface.
• English: The system can be set to the English interface.

• Bidirectional passage: Card swiping in both directions for people flow.
• Bidirectional free passage: No card verification required.
• Single directional passage: Direction A swipes card and the gate opens normally; reverse direction B card swipe is invalid and the gate closes.
• Single directional free passage: Direction A is free passage; reverse direction B requires card verification.
• Passing prohibited: Bidirectional card swiping is invalid and the gate enters the locked state.

1. The turnstile provides smooth and effective access control through basic operation while preventing illegal entry and exit. The machine is well-designed, rustproof, durable, and resistant to external damage.
2. The turnstile offers a compact, cost-effective, fast-operating, easy-to-use, and reliable entrance solution for internal or external use in areas with a large and constant flow of people. Advantages over a conventional gate include better manpower utilization, increased reliability, and improved security.
