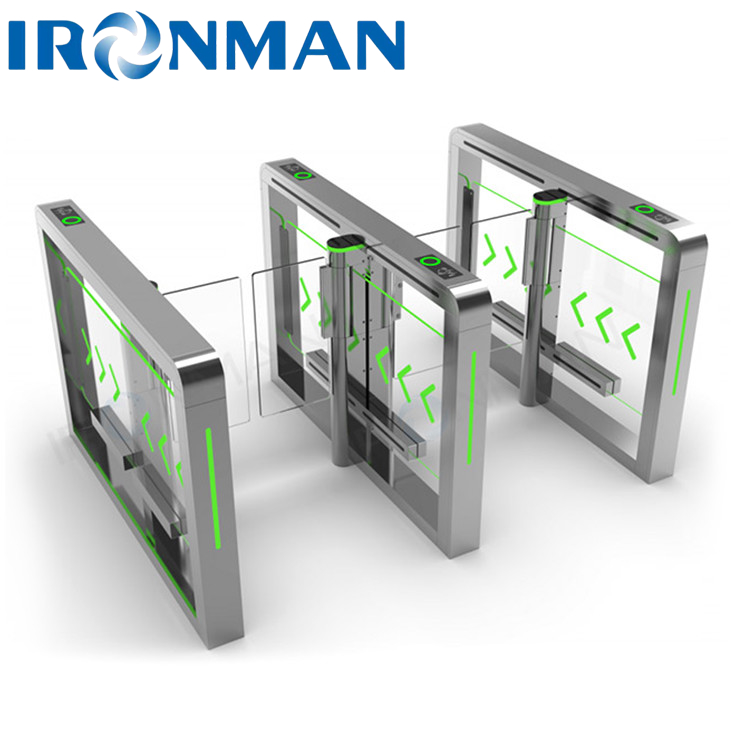

Half Height Speed Gate Turnstile SUS304 Stainless Steel For Public Lobby CE Certificate

Product Details

Place of Origin: China

Brand Name: IRONMAN

Certification: CE; FCC; ISO9001

Model Number: IM.ST606

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: Negotiation

Packaging Details: carton packing

Delivery Time: 8-15 work days

Payment Terms: L/C, T/T

Supply Ability: 2000 pc per/month

Get Best Price
Contact Now
Specifications
Highlight:

Half Height Speed Gate Turnstile

,

Speed Gate Turnstile SS304

,

Public Lobby Turnstiles

Name:
High Speed Gates
Housing Material:
SUS304
Power Voltage:
AC110~220V±10V
Service Life:
5,000,000 Times
Communication Interface:
RS232 Serial Port
Basic Function:
Alarm Function
Application:
Hospitals, Enterprises And Institutions
Material:
304 Stainless Steel
Dimension:
1500 * 120 * 980mm
Warranty:
2 Years
Name:
High Speed Gates
Housing Material:
SUS304
Power Voltage:
AC110~220V±10V
Service Life:
5,000,000 Times
Communication Interface:
RS232 Serial Port
Basic Function:
Alarm Function
Application:
Hospitals, Enterprises And Institutions
Material:
304 Stainless Steel
Dimension:
1500 * 120 * 980mm
Warranty:
2 Years
Description
Half Height Speed Gate Turnstile SUS304 Stainless Steel For Public Lobby CE Certificate

Half Height Speed Gate Turnstile SUS304 For Public Lobby CE Certificate

Half Height Speed Gate Turnstile SUS304 Stainless Steel For Public Lobby CE Certificate 0

Half Height Speed Gate Turnstile SUS304 Stainless Steel For Public Lobby CE Certificate 1

Half Height Speed Gate Turnstile SUS304 Stainless Steel For Public Lobby CE Certificate 2

Specifications

Product Parameters Dimensions: Length 1500*Width 120*Height 980mm Box Material: Box: Stainless Steel SUS304 1.5mm
Upper Cover: Stainless Steel SUS304 1.5mm
Swing Arm Material: 10mm Acrylic Swing Door Channel Width:  Recommended ≤1000mm
Technical Parameter ◆Box material: SUS stainless steel SUS304
◆Internal structure: frame structure / stainless steel shell surface drawing, whole machine planing
◆Power supply voltage: AC220V±10V
◆Drive motor: DC brushless motor (24~36VDC)
◆Movement structure: high-precision anti-collision movement, high-strength clutch, return in case of resistance, high strength, impact resistance;
◆Service life: more than 8 million times of continuous opening and closing
◆Infrared sensor: 8 pairs; (support more than 8 pairs of configuration)
◆Working environment: -35℃~75℃
◆Relative humidity: 0~90% (no condensation)
◆Communication interface: RS232 serial port
◆Communication protocol: MODBUS protocol
◆The working speed of the turnstile: ≤45 people/min (the memory mode can be turned on)
◆Passing time: swiping card travel time: 10S (if no one passes within 10S: the gate will automatically close, and the time can be adjusted according to needs)
Technical Parameter Basic Function ●Alarm function: with sound and light alarm function
●Anti-interference: It can limit the abnormality of the gate caused by external factors such as electromagnetic
●Pass mode setting: One-way pass, two-way pass, free pass (wing arm retraction), etc. can be set through the buttons on the main control board
●Anti-trailing: prevent the non-permissible situation of too many people at one time.
●Anti-pinch function: When the gate is in the process of closing, the gate will stop closing after detecting the anti-pinch signal
●Auto reset: After the gate is opened, if there is no passage within the specified time, the system will automatically cancel the user's access authority; the default is 10 seconds, and the passage time can be set by the switch
●Access control: The external port can connect a variety of biometric devices
●Power off and switch off: switch on after power off
●Fault detection: The control board can support fault type detection, assist in analyzing the cause of the fault, and handle abnormal faults.
●Traffic indication: There is a traffic status indicator; and an alarm function for exceeding the stay time in the channel can be set

Expanding Function ▲Passing mode
△Normal: Normal passing mode
△ Passing: automatic car/electric car/motorcycle passing mode
▲Voice broadcast, expandable voice module, and volume adjustment
▲Open/close delay, set the delay opening time after the gate receives the opening signal/set the delay closing time after pedestrians pass, the default is 0 seconds
▲ Swipe the card in the channel
△ Disabled by default: card swiping in the channel (induction infrared area) is invalid
△Allow: Card verification is allowed in the channel.
▲Whether the trailing and reversing are blocked by closing the door
△Do not close the gate: the reverse/trailing (A swipe card, B pass) will not close the gate
△Close the gate first and then open the gate: close the gate first for reverse/trailing traffic, and then open the gate again after closing
△Do not open the gate after closing the gate: the reverse/trailing traffic will close the gate, and the gate will not be opened again after closing
▲Fire linkage
△Normally open mode: the gate remains open
△ Normally closed mode: the gate remains closed
▲Passage Mode
△Bidirectional passage,swiping card bi-directionally for people flow.
△Bidirectional free passage, no credit card verification is required.
△Single directional passage, Single directional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes.
△Single directional free passage, Single directional (A) free passage, and reverse directional passing (B) require a swiping card verification.
△Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state.



Application

Suitable for indoor / outdoor pedestrian passages; such as: scenic spots, parks, playgrounds / primary and secondary schools / colleges / office buildings / hotels / residential quarters / factory parks / hospitals / enterprises and institutions / government halls / sports venues, etc.;



Dimension Drawing

Half Height Speed Gate Turnstile SUS304 Stainless Steel For Public Lobby CE Certificate 3

Projects

Half Height Speed Gate Turnstile SUS304 Stainless Steel For Public Lobby CE Certificate 4

Speed Gate Turnstile is a commercial design turnstile equipped with all the latest features to speed up operation. Measuring 1500mm*120mm*980mm, it offers a convenient 600mm passage width. With a life span of 8 million times, it is made of stainless steel. This turnstile is designed for maximum security and fast operation. It can easily handle high traffic areas and is an ideal choice for commercial applications.
