Product Details
Place of Origin: china
Brand Name: Tiejun Turnstile
Certification: ISO9001
Model Number: TJ-LBST02
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: carton packing
Delivery Time: 8-15 work days
Payment Terms: L/C, T/T
Supply Ability: 2000 pc per/month
Name: |
Office Turnstile |
Basic Function: |
Anti Interference |
Occasion Application: |
Exhibition, Swimming Hall |
Lightning Protection: |
2KV |
Working Temperature: |
-20℃～75℃ |
Supply Voltage: |
AC220V±10V |
Name: |
Office Turnstile |
Basic Function: |
Anti Interference |
Occasion Application: |
Exhibition, Swimming Hall |
Lightning Protection: |
2KV |
Working Temperature: |
-20℃～75℃ |
Supply Voltage: |
AC220V±10V |

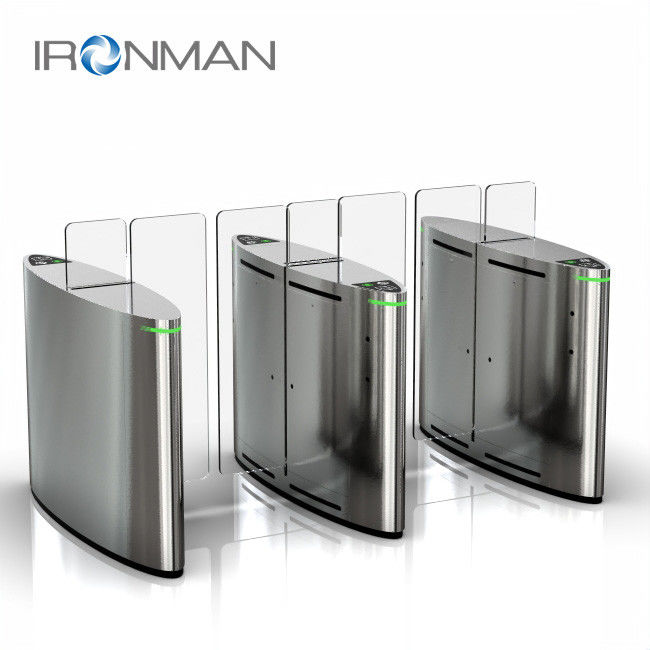

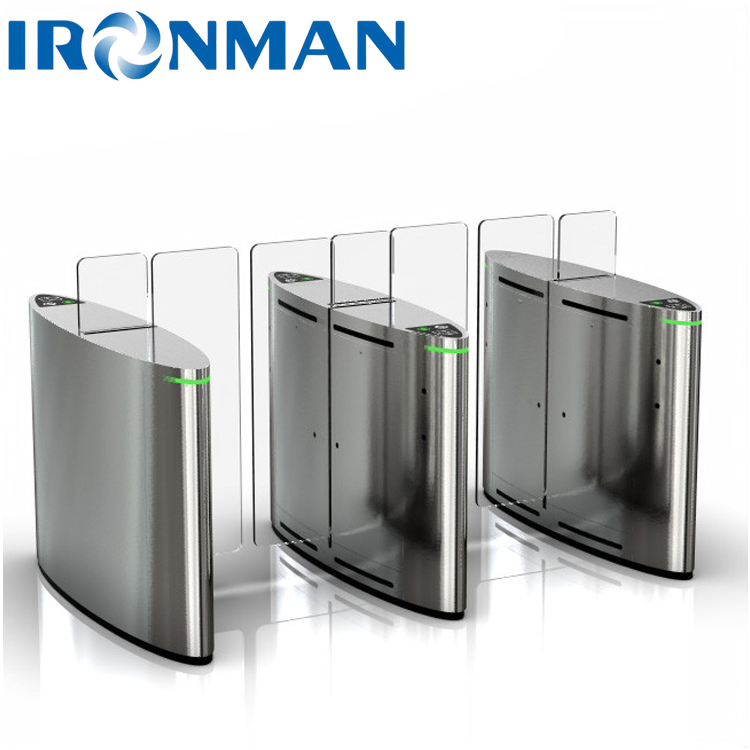

Product Specifications of (TJ-LBST02) Swing Turnstile |
||||
| Product parameters | Dimensions | 1500*120*980MM | Housing Material: | Housing: Corrosion Resistant Electrolytic Plate 1.5mm Top Cover: Cast aluminum alloy 10mm Column:Cast aluminum alloy 3mm |
| wing material: | Transparent Acrylic；T=10MM | Surface: | Column:Corrosion resistant electrolytic plate black matte baking paint Cover and column: Aluminum alloy oxidation (standard color: space gray) |
|
| Product configuration: | Single Channel Standard:Single core chassis 2 set/turnstile gate 2 set/control board (master/slave)/Servo movement 2 sets/infrared beams 8 pairs/power supply one set/ optional:Access control system / card swiping module / QR code module / face recognition equipment |
|||
| 技术参数 | ◆Housing Material: Aluminum alloy mold opening: top cover 10mm ;column 3mm thick; Baking paint frame thickness: 1.5mm ◆supply voltage:AC220V±10V ◆Drive motor: servo motor ◆Movement structure: Planetary metal gear reducer:high-speed, precise, silent, and average failure-free ◆Service life: 12,000,000 times of continuous opening and closing ◆Infrared sensor: 8 pairs (support more than 8 pairs) ◆Opening method:RS485/RS232/IO ◆EMC Standard: Antistatic level 3,Air discharge 15KV ◆Lightning Protection:2KV ◆Motor: servo motor,High precision clutch movement ◆Working temperature:-20℃～75℃ ◆Relative humidity:0～90%(non-condensing) ◆Opening speed:＜0.5S(aujustable) ◆passing time:Swipe the traffic card time:10S(If no one passes within 10S: the gate closes automatically, and the time can be adjusted as needed) |
|||
| Function parameter | Basic Function | ●Voice broadcast:it has the function of entering and opening the gate / exiting the gate / breaking in voice / trailing voice / stop voice broadcasting function | ||
| ●Intellihrnt linkage alarm function:including sound and light alarms of break-in and reverse pass,which can be linked with other alarm monitoring equipment | ||||
| ●Anti-interference:It can limit the abnormality of the gate caused electromagnetic and other external factors | ||||
| ●Traffic mode setting:One-way traffic, two-way traffic, free traffic, etc. can be set through the buttons on the main control panel | ||||
| ●Anti tailing: prevent the unauthorized situation of too many people at one time. | ||||
| ●Anti pinch function:When the gate is in the process of closing, the gate will stop closing after detecting the anti-pinch signal | ||||
| ●Automatic reset: after opening the gate, if the user does not pass within the specified time, the system will automatically cancel the user's permission to pass this time; The default is 10 seconds, and the traffic time can be set through the switch | ||||
| ●Access control: External port can connect a variety of biometric devices | ||||
| ●Power off and opening:switch off after power off, and the switch opening direction can be set | ||||
| ●Fault detection:Control board can support fault type detection,Assist in analyzing the causes of faults and handling faults and abnormalities. | ||||
| ●Passing indication: with passing status indicator; It can also set the alarm function of exceeding the stay time in the channel | ||||
| Extension Function | ▲ Passing Mode △ Normal: normal pedestrian passing mode △ Passing: automatic vehicle / electric vehicle / motorcycle passing mode |
|||
| ▲Opening / closing delay, set the delay opening time after the gate turnstile receives the opening signal/set the delay closing time after pedestrians pass, the default is 0 seconds | ||||
| ▲Card swiping in the channel △Default forbidden: card swiping in the channel (inductive infrared area) is invalid △Permission:card swiping verification is allowed in the channel |
||||
| ▲Whether the trailing and reversing are blocked by closing the door △The gate Closed: the reverse/trailing (A swipe card, B pass) will not close the gate △Close the gate first and then open the gate: close the gate first for reverse/trailing traffic, and then open the gate again after closing △Do not open the gate after closing the gate: the reverse/trailing traffic will close the gate, and the gate will not be opened again after closing |
||||
| ▲Fire linkage △Normally open mode: the gate remains open; △ Normally closed mode: the gate remains closed |
||||
| ▲System language function △Chinese: The system can set the Chinese interface △English: The system can set the English interface |
||||
| ▲Passage Mode △Bidirectional passage,swiping card bi-directionally for people flow. △Bidirectional free passage, no credit card verification is required. △Unidirectional passage, unidirectional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes. △Unidirectional free passage, unidirectional (A) free passage, and reverse directional passing (B) require a swiping card verification. △Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state. |
||||
Product Introduction:
The wing gate is mainly used for pedestrian passage management; it has the characteristics of quick opening, safety and convenience, and is an ideal management and drainage device for pedestrians with high frequency access. It is suitable for one-way or two-way control of people flow. It is an upgraded version of three roller gates and swing gates. The appearance is fashionable. Generous, fast speed. It has been widely used in airports, subway stations, stations, terminals, attractions, parks, student dormitories, and pedestrian walkways.
Wing gate shape: The appearance box can be divided into bridge type octagonal inclined wing gate, bridge type ship-shaped wing gate, bridge type trapezoidal wing gate, double-core wing gate. Wing gates can be divided into other materials such as soft wings and acrylic.
