500-900mm Access Control Turnstiles Manufacturers For Bus Station

Product Details

Place of Origin: china

Brand Name: Tiejun Turnstile

Certification: ISO9001

Model Number: TJ-FLP01

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: Negotiation

Packaging Details: carton packing

Delivery Time: 8-15 work days

Payment Terms: L/C, T/T

Supply Ability: 2000 pc per/month

Get Best Price
Contact Now

Access Control Turnstiles Manufacturers


900mm Access Control Turnstiles


Bus Station Turnstiles Access Control

Office Turnstile
Top Cove:
Input Voltage:
AC220V±10% ,50Hz
Working Temperature:
Office Turnstile
Top Cove:
Input Voltage:
AC220V±10% ,50Hz
Working Temperature:
500-900mm Access Control Turnstiles Manufacturers For Bus Station

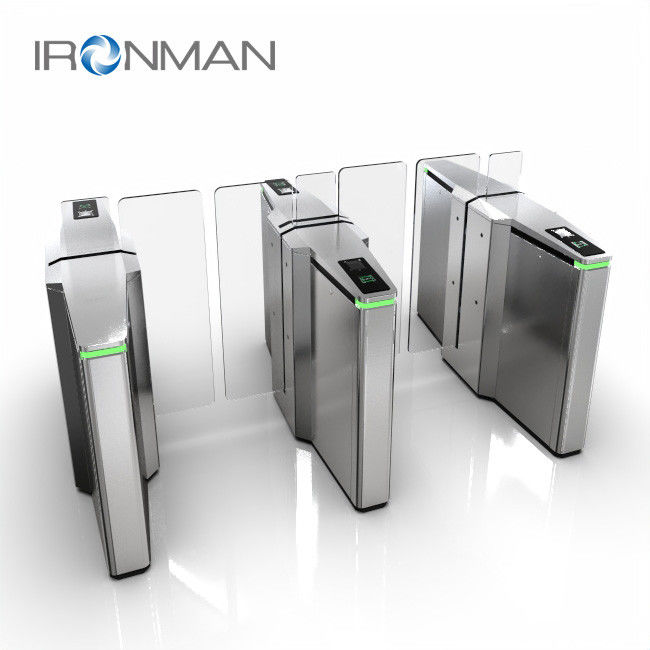

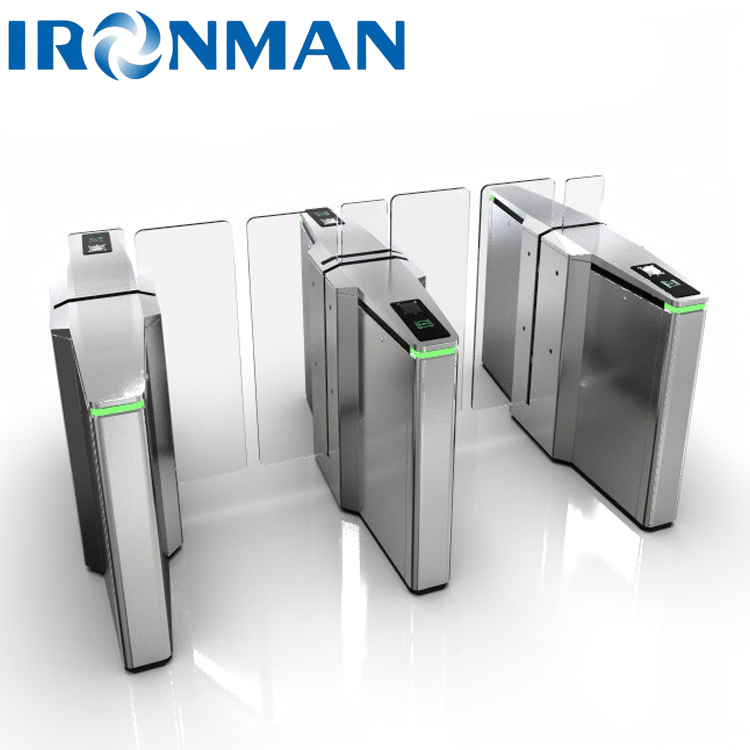

Product Specifications of TJ-FLP01 Sliding Gate Turnstile
Product parameters Dimensions 1400*345*980MM Housing Material: Housing:AISI SUS304 1.5MM
Top Cover:AISI SUS304 2.0MM
Bottom:Corrosion Resistant Electrolytic Plate baking paint 1.5MM
wing material: Transparent tempered glass;T=10MM Surface: Housing:original color hairline Stainless Steel
Bottom: black sand paint
Product configuration: Single Channel
Standard:Single core chassis 2 set/turnstile gate 2 set/control board (master/slave)/Servo movement 2 sets/infrared beams 8 pairs/power supply one set/
optional:Access control system / card swiping module / QR code module / face recognition equipment
technical parameter ◆Housing Material:AISI SUS304 1.5MM;Top Cover:AISI SUS304 2.0MM
◆Input voltage: AC220V±10% ,50Hz
◆Opening method:RS485/RS232/IO
◆EMC Standard:Antistatic level 3,Air discharge 15KV
◆Lightning Protection:2KV
◆Motor: servo motor,High precision clutch movement
◆Working temperature:-20℃~75℃
◆Relative humidity:0~90%(non-condensing)
◆Opening speed:<0.5S(aujustable)
◆passing time:Swipe the traffic card time:10S(If no one passes within 10S: the gate closes automatically, and the time can be adjusted as needed)
Function parameter Basic Function ●Voice broadcast:it has the function of entering and opening the gate / exiting the gate / breaking in voice / trailing voice / stop voice broadcasting function
●Intellihrnt linkage alarm function:including sound and light alarms of break-in and reverse pass,which can be linked with other alarm monitoring equipment
●Anti-interference:It can limit the abnormality of the gate caused electromagnetic and other external factors
●Traffic mode setting:One-way traffic, two-way traffic, free traffic, etc. can be set through the buttons on the main control panel
●Anti tailing: prevent the unauthorized situation of too many people at one time.
●Anti pinch function:When the gate is in the process of closing, the gate will stop closing after detecting the anti-pinch signal
●Automatic reset: after opening the gate, if the user does not pass within the specified time, the system will automatically cancel the user's permission to pass this time; The default is 10 seconds, and the traffic time can be set through the switch
●Access control: External port can connect a variety of biometric devices
●Power off and opening:switch off after power off, and the switch opening direction can be set
●Fault detection:Control board can support fault type detection,Assist in analyzing the causes of faults and handling faults and abnormalities.
●Passing indication: with passing status indicator; It can also set the alarm function of exceeding the stay time in the channel
Extension Function ▲Voice broadcast, expandable voice module, and volume adjustment
▲Opening / closing delay, set the delay opening time after the gate turnstile receives the opening signal/set the delay closing time after pedestrians pass, the default is 0 seconds
▲Card swiping in the channel
△Default forbidden: card swiping in the channel (inductive infrared area) is invalid
△Permission:card swiping verification is allowed in the channel
▲Whether the trailing and reversing are blocked by closing the door
△The gate Closed: the reverse/trailing (A swipe card, B pass) will not close the gate
△Close the gate first and then open the gate: close the gate first for reverse/trailing traffic, and then open the gate again after closing
△Do not open the gate after closing the gate: the reverse/trailing traffic will close the gate, and the gate will not be opened again after closing
▲Fire linkage
△Normally open mode: the gate remains open;
△ Normally closed mode: the gate remains closed
▲System language function
△Chinese: The system can set the Chinese interface
△English: The system can set the English interface
▲Passage Mode
△Bidirectional passage,swiping card bi-directionally for people flow.
△Bidirectional free passage, no credit card verification is required.
△Unidirectional passage, unidirectional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes.
△Unidirectional free passage, unidirectional (A) free passage, and reverse directional passing (B) require a swiping card verification.
△Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state.


Product Application

This model is widely used in bus station, port, subway, factory, mansion, residential area, hotel, company and so on any place that requires a smart flow control.
