High End Optical Flap Barrier Turnstile Gate System From Direct China Factory

Basic Information
Place of Origin: China
Brand Name: IRONMAN
Certification: CE; FCC; ISO9001
Model Number: IM.XY.02A
Product Description

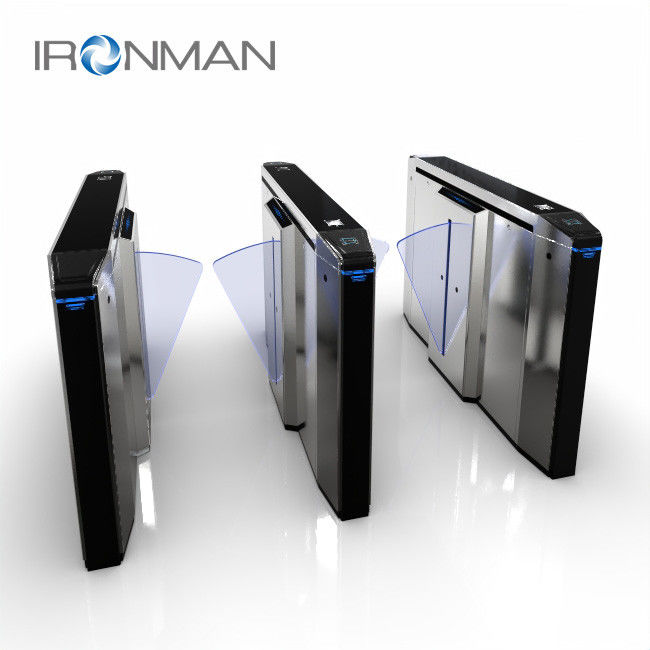

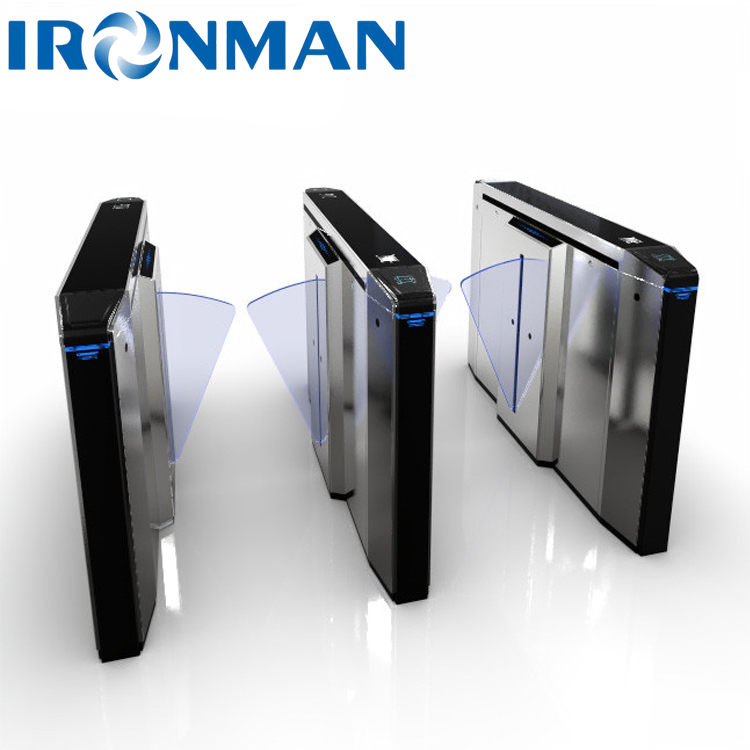

High End Optical Flap Barrier Turnstile Gate System From Direct China Factory

IM.XY.02A flap barrier gate is a type of access control system commonly used in public areas such as subway stations, airports, and office buildings. It consists of two or more retractable barriers that can be opened or closed to allow or restrict access to a certain area. The barriers can be operated by various means such as card readers, biometric scanners, or remote control. Our flap barrier gate is designed to provide a high level of security and convenience for users, and can be customized to meet specific requirements of different applications.

High End Optical Flap Barrier Turnstile Gate System From Direct China Factory 0

Product Specification

                                                        IM.XY.02A Flap Barrier Gate


Product Specifications <IM.XY.02A> Flap Barrier Gate
Product Parameters Dimensions 1500*280*980MM Housing Material:

Housing: 1.5MM SUS304 stainless steel
Top Cover: 2.0MM SUS304 stainless steel
Column:Corrosion Resistant Electrolytic Plate baking paint 1.5MM

Covered by acrylic

Wing Arm material: Transparent Acrylic;T=15MM Surface: Housing:original color hairline Stainless Steel
Verification area module: black PC parts

Product Dimension Drawing:

High End Optical Flap Barrier Turnstile Gate System From Direct China Factory 1

Technical Parameter

◆Housing Material:ength 1500* width 280* height 980MM;

◆Material: SUS stainless steel 304 material + black baking finish base, the machine thickness of 1.5mm;
◆Service life: 5,000,000 times of continuous opening and closing
◆Input voltage: AC110~220V±10% ,50Hz~60Hz

◆Communication interface: RS232 serial port
◆Drive motor: DC brushless motor(24~36VDC)
◆Working temperature:-35℃~75℃
◆Relative humidity:0~90%(non-condensing)
◆Turnstile working speed: 30~50 people/min (memory mode can be turned on)
◆Passing time:Swipe the traffic card time:10S(If no one passes within 10S: the gate closes automatically, and the time can be adjusted as needed)

Function Parameter Basic Function ●Alarm function: with sound and light alarm function
●Anti-interference:It can limit the abnormality of the gate caused electromagnetic and other external factors
●Traffic mode setting:One-way traffic, two-way traffic, free traffic, etc. can be set through the buttons on the main control panel
●Anti tailing: prevent the unauthorized situation of too many people at one time.
●Anti pinch function:When the gate is in the process of closing, the gate will stop closing after detecting the anti-pinch signal
●Automatic reset: after opening the gate, if the user does not pass within the specified time, the system will automatically cancel the user's permission to pass this time; The default is 10 seconds, and the traffic time can be set through the switch
●Access control: External port can connect a variety of biometric devices
●Power off and opening:switch off after power off, and the switch opening direction can be set
●Fault detection:Control board can support fault type detection,Assist in analyzing the causes of faults and handling faults and abnormalities.
●Passing indication: with passing status indicator; It can also set the alarm function of exceeding the stay time in the channel

Extension Function ▲Voice broadcast, expandable voice module, and volume adjustment
▲Opening / closing delay, set the delay opening time after the gate turnstile receives the opening signal/set the delay closing time after pedestrians pass, the default is 0 seconds
▲Card swiping in the channel
△Default forbidden: card swiping in the channel (inductive infrared area) is invalid
△Permission:card swiping verification is allowed in the channel
▲Whether the trailing and reversing are blocked by closing the door
△The gate Closed: the reverse/trailing (A swipe card, B pass) will not close the gate
△Close the gate first and then open the gate: close the gate first for reverse/trailing traffic, and then open the gate again after closing
△Do not open the gate after closing the gate: the reverse/trailing traffic will close the gate, and the gate will not be opened again after closing
▲Fire linkage
△Normally open mode: the gate remains open;
△ Normally closed mode: the gate remains closed
▲System language function
△Chinese: The system can set the Chinese interface
△English: The system can set the English interface
▲Passage Mode
△Bidirectional passage,swiping card bi-directionally for people flow.
△Bidirectional free passage, no credit card verification is required.
△Unidirectional passage, unidirectional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes.
△Unidirectional free passage, unidirectional (A) free passage, and reverse directional passing (B) require a swiping card verification.
△Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state.






Product Application

The product can be used both indoors and in semi-outdoor environments. It is suitable for various locations such as airports, subways, libraries, office buildings, theaters, factories, scenic spots, stations, leisure and entertainment venues, and more.
