SUS304 Stainless Steel Speed Gate Turnstile with Sound and Light Alarm and Servo Motor for Smooth Pedestrian Access

Brand Name:	Ironman
Model Number:	IM.ST601
MOQ:	1pc
Price:	Negotiation
Packaging Details:	carton packing
Payment Terms:	L/C,T/T

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

CE; FCC; ISO9001

Name:

Speed Gate Turnstile

Material:

SUS304 Stainless Steel

Swing Arm Material:

AC110~220V±10V

Control Input:

Dry Contact/relay Signal

Working Environment:

Indoor/outdoor ; Working Temperature：－30℃～+70℃；

Alarm Function:

With Sound And Light Alarm Function

Housing Material:

AISI SUS304

Application:

Office Buildings / Hotels

Supply Ability:

2000 pc per/month

Highlight:

Swing Arm Fastlane Speed Gates

Smooth Entry Swing Arm Speed Gate

Product Description

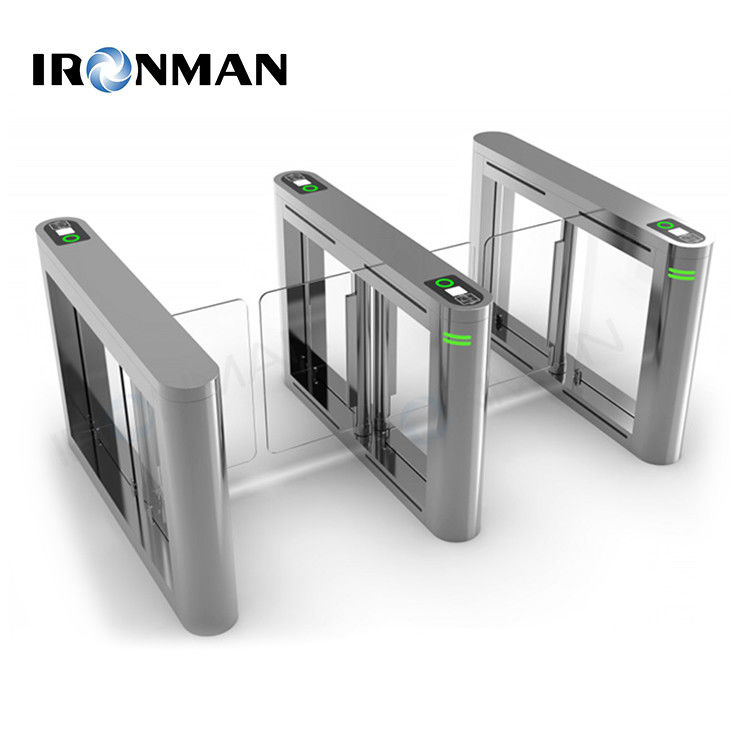

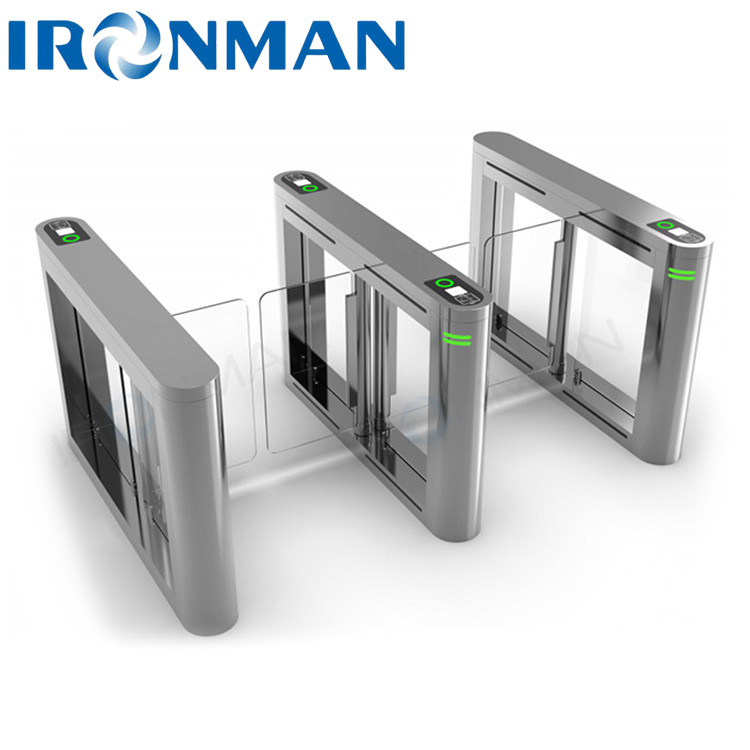

Swing Arm Fastlane Speed Gates Ensures Smooth Entry In Busy Pedestrian Areas

IM.ST601 Speed Turnstile

The IM.ST601 Speed Gate provides efficient access control with smooth operation, preventing unauthorized entry while ensuring reliable performance in high-traffic environments.

Product Specifications

Product Parameters	Specifications
Dimensions	1600×100×980mm
Material	Housing: Corrosion Resistant Electrolytic Plate 2.0mm Top Cover: Cast aluminum alloy 10mm Column: Cast aluminum alloy 3mm
Baffle Wing Material	Transparent Acrylic; T=10mm
Surface	Column: Corrosion resistant electrolytic plate black matte baking paint Cover and column: Aluminum alloy oxidation

Technical Parameters	Specifications
Housing Material	Aluminum alloy mold opening: top cover 10mm; column 3mm thick; Baking paint frame thickness: 2mm
Input Voltage	AC110~220V±10%, 50Hz
Opening Method	RS485/RS232/IO
EMC Standard	Antistatic level 3, Air discharge 15KV
Lightning Protection	2KV
Motor	Servo motor, High precision clutch movement
Working Temperature	-20℃～75℃
Relative Humidity	0～90% (non-condensing)
Opening Speed	＜0.5S (adjustable)
Passing Time	Swipe the traffic card time: 10S (If no one passes within 10S: the gate closes automatically, and the time can be adjusted as needed)

Function Parameters

Specifications

Basic Functions

Sound alarm: breaking in / trailing / stop / reverse pass sound alarm function
Light alarm function: red, blue, and green color indicators
Anti-interference: limits gate abnormalities caused by electromagnetic and other external factors
Traffic mode setting: One-way traffic, two-way traffic, free traffic, etc. can be set on the main control panel
Anti tailing: prevents unauthorized multiple person passage
Anti pinch function: Gate stops closing when detecting anti-pinch signal
Automatic reset: Cancels user permission if not passed within specified time (default 10 seconds)
Access control: Compatible with various biometric devices
Power off opening: Gate opens after power failure (opening direction configurable)
Fault detection: Control board supports fault type detection and analysis
Passing indication: Status indicator with alarm function for exceeding stay time in channel

Key Features

Provides smooth and effective access control while preventing illegal entry and exit
Well-designed, rustproof, durable construction resistant to external damage
Compact, cost-effective, fast operating solution for high-traffic areas
Easy to use and reliable for internal or external applications
Superior to conventional gates with better manpower utilization, increased reliability, and improved security

Applications

High-end factory parks
Higher schools and educational institutions
Hospitals and healthcare facilities
Enterprises and institutions
Government halls
Sports venues
Convention and exhibition centers
