Product Details
Place of Origin: China
Brand Name: Ironman
Certification: ISO9001
Model Number: IM.FL.01
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: carton packing
Delivery Time: 8-15 work days
Payment Terms: L/C, T/T
Supply Ability: 2000 pc per/month
Name: |

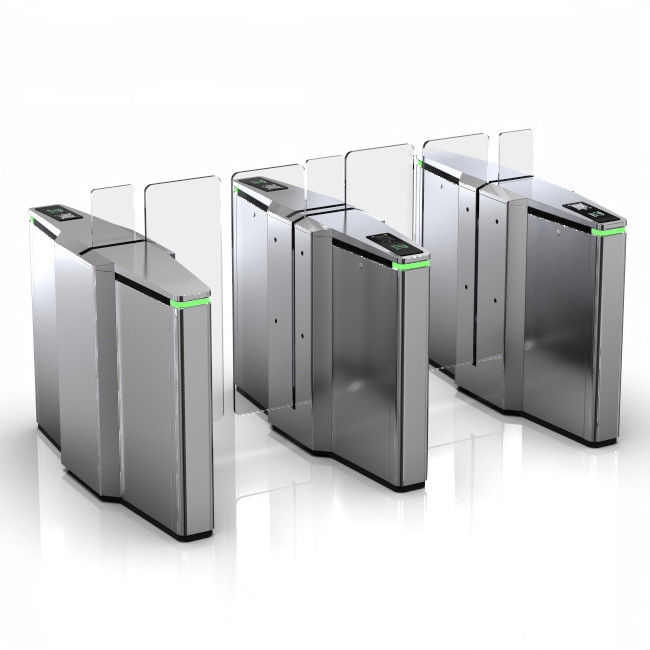

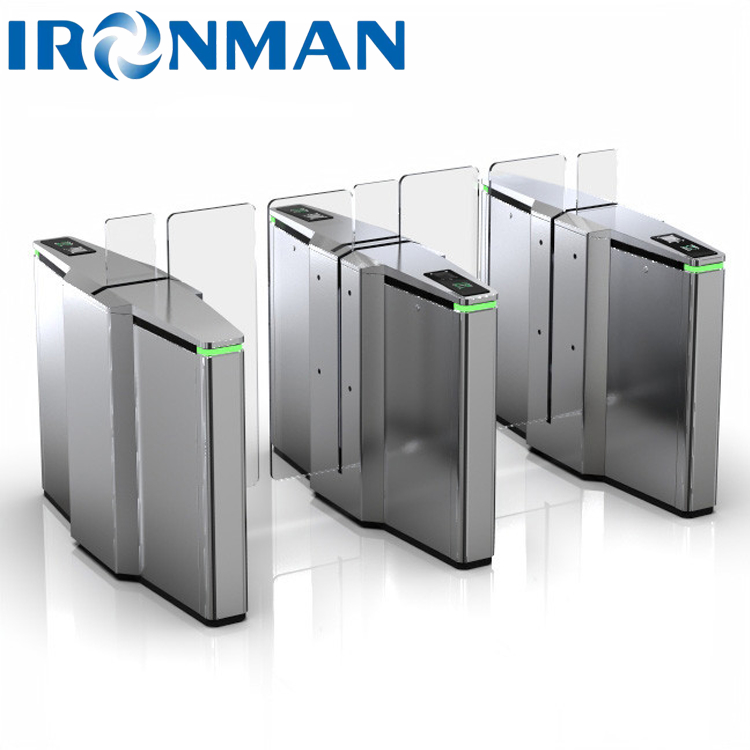

Sliding Turnstile Barrier Gate |
Dimensions: |
1400*345*980mm |
Wing Material: |
Transparent Tempered Glass；T=10MM |
Application: |
Office / School / Park / Supermarket / Subway |
Alarm Function: |
2KV |
Input Voltage: |
AC220V±10% ，50Hz |
Housing Material: |
AISI SUS304 |
Power Voltage: |
AC220V±10V |
Drive Motor: |
DC Brushless Motor(24~36VDC) |
Service Life: |
5,000,000 Times |
Name: |
Sliding Turnstile Barrier Gate |
Dimensions: |
1400*345*980mm |
Wing Material: |
Transparent Tempered Glass；T=10MM |
Application: |
Office / School / Park / Supermarket / Subway |
Alarm Function: |
2KV |
Input Voltage: |
AC220V±10% ，50Hz |
Housing Material: |
AISI SUS304 |
Power Voltage: |
AC220V±10V |
Drive Motor: |
DC Brushless Motor(24~36VDC) |
Service Life: |
5,000,000 Times |
Product Specifications of TJ-FLP01 Sliding Gate Turnstile |
||||
| Picture of the product | Document Number: | |||
| Version | A/0 | |||
| Revision Time | 2021/9/28 | |||
| Revised by | ||||
| Product parameters | Dimensions | 1400*345*980MM | Housing Material: | Housing:AISI SUS304 1.5MM Top Cover:AISI SUS304 2.0MM Bottom:Corrosion Resistant Electrolytic Plate baking paint 1.5MM |
| wing material: | Transparent tempered glass；T=10MM | Surface: | Housing:original color hairline Stainless Steel Bottom: black sand paint |
|
| Product configuration: | Single Channel Standard:Single core chassis 2 set/turnstile gate 2 set/control board (master/slave)/Servo movement 2 sets/infrared beams 8 pairs/power supply one set/ optional:Access control system / card swiping module / QR code module / face recognition equipment |
|||
| Product Drawing: | ||||
| technical parameter | ◆Housing Material:AISI SUS304 1.5MM;Top Cover:AISI SUS304 2.0MM ◆Input voltage: AC220V±10% ,50Hz ◆Opening method:RS485/RS232/IO ◆EMC Standard:Antistatic level 3,Air discharge 15KV ◆Lightning Protection:2KV ◆Motor: servo motor,High precision clutch movement ◆Working temperature:-20℃～75℃ ◆Relative humidity:0～90%(non-condensing) ◆Opening speed:＜0.5S(aujustable) ◆passing time:Swipe the traffic card time:10S(If no one passes within 10S: the gate closes automatically, and the time can be adjusted as needed) |
|||
| Function parameter | Basic Function | ●Voice broadcast:it has the function of entering and opening the gate / exiting the gate / breaking in voice / trailing voice / stop voice broadcasting function | ||
| ●Intellihrnt linkage alarm function:including sound and light alarms of break-in and reverse pass,which can be linked with other alarm monitoring equipment | ||||
| ●Anti-interference:It can limit the abnormality of the gate caused electromagnetic and other external factors | ||||
| ●Traffic mode setting:One-way traffic, two-way traffic, free traffic, etc. can be set through the buttons on the main control panel | ||||
| ●Anti tailing: prevent the unauthorized situation of too many people at one time. | ||||
| ●Anti pinch function:When the gate is in the process of closing, the gate will stop closing after detecting the anti-pinch signal | ||||
| ●Automatic reset: after opening the gate, if the user does not pass within the specified time, the system will automatically cancel the user's permission to pass this time; The default is 10 seconds, and the traffic time can be set through the switch | ||||
| ●Access control: External port can connect a variety of biometric devices | ||||
| ●Power off and opening:switch off after power off, and the switch opening direction can be set | ||||
| ●Fault detection:Control board can support fault type detection,Assist in analyzing the causes of faults and handling faults and abnormalities. | ||||
| ●Passing indication: with passing status indicator; It can also set the alarm function of exceeding the stay time in the channel | ||||
| Extension Function | ▲Voice broadcast, expandable voice module, and volume adjustment | |||
| ▲Opening / closing delay, set the delay opening time after the gate turnstile receives the opening signal/set the delay closing time after pedestrians pass, the default is 0 seconds | ||||
| ▲Card swiping in the channel △Default forbidden: card swiping in the channel (inductive infrared area) is invalid △Permission:card swiping verification is allowed in the channel |
||||
| ▲Whether the trailing and reversing are blocked by closing the door △The gate Closed: the reverse/trailing (A swipe card, B pass) will not close the gate △Close the gate first and then open the gate: close the gate first for reverse/trailing traffic, and then open the gate again after closing △Do not open the gate after closing the gate: the reverse/trailing traffic will close the gate, and the gate will not be opened again after closing |
||||
| ▲Fire linkage △Normally open mode: the gate remains open; △ Normally closed mode: the gate remains closed |
||||
| ▲System language function △Chinese: The system can set the Chinese interface △English: The system can set the English interface |
||||
| ▲Passage Mode △Bidirectional passage,swiping card bi-directionally for people flow. △Bidirectional free passage, no credit card verification is required. △Unidirectional passage, unidirectional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes. △Unidirectional free passage, unidirectional (A) free passage, and reverse directional passing (B) require a swiping card verification. △Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state. |
||||
