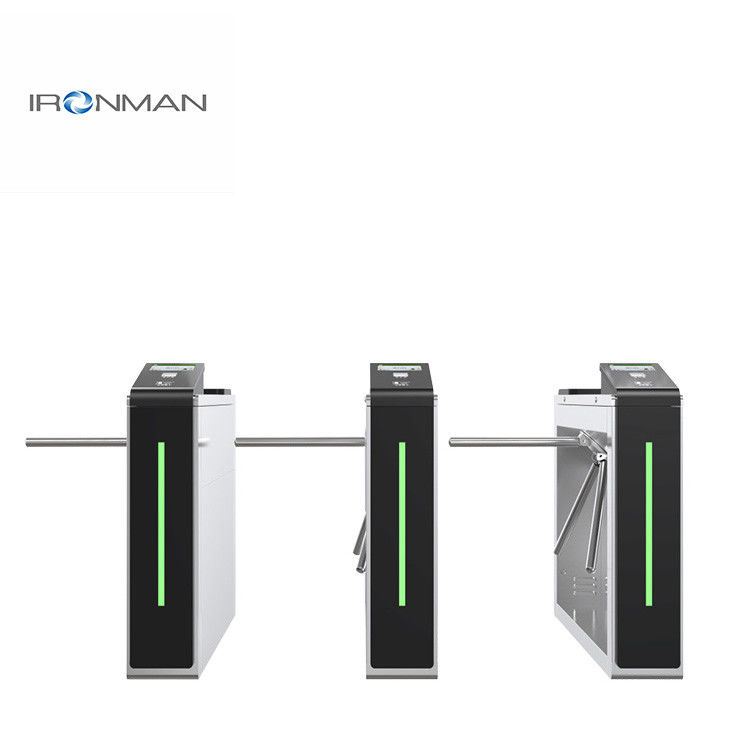

Security Tripod Turnstile Barrier Gate RFID Face Recognition 304 Stainless Steel Turnstile

Brand Name:	Ironman
Model Number:	IM.PWTL.01
MOQ:	1pc
Price:	Negotiation
Packaging Details:	carton packing
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001

Name:

Tripod Turnstile

Drive Motor:

24V Brushless Motor

Model Number:

IM.PWTL.01

Dimensions:

1500* 240* 1070mm

Materia:

304 Stainless Steel Material + Black Paint Base

Work Voltage:

AC 110V/220V, 50/60Hz

Traffic Speed:

≤30 People/minute

Arm Length:

500mm, Channel Width: 550-600mm

Place Of Origin:

Guangdong, China

Communication:

RS485 With Optional TCP / IP

Interface:

RS485, TCP/IP

Supply Ability:

2000 pc per/month

Highlight:

304 Stainless Steel Tripod Turnstile

Security Tripod Turnstile Barrier Gate

RFID Face Recognition Tripod Turnstile

Product Description

Ticketing Tripod Turnstile Gate

<IM.PWTL.01>Product Specifications

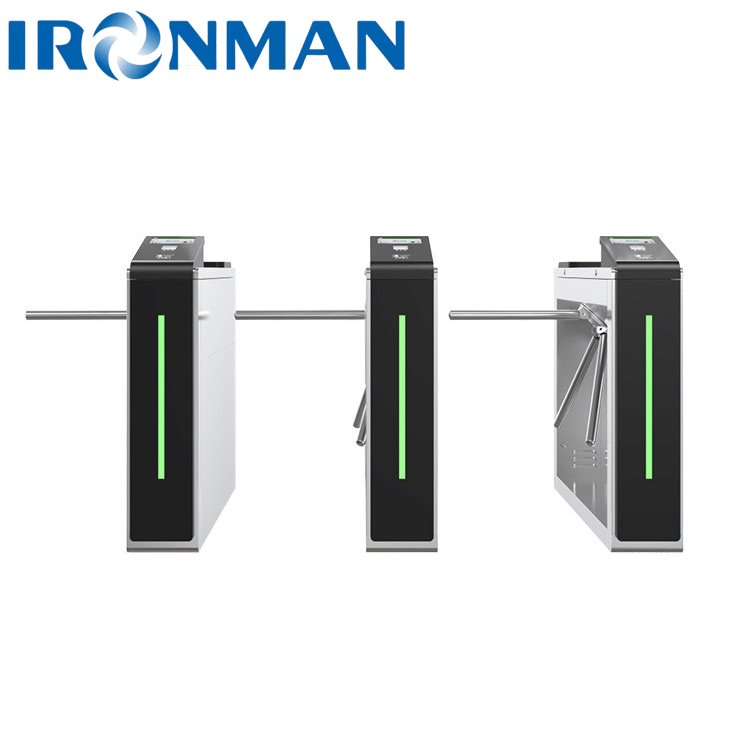

Product Images

Document Number:

Edition:

A/0

Revision Time:

Revised by:

Product Parameters

Dimensions:

1500*240*1070mm

Box Material:

Turnstile Body:Stainless Steel SUS304 1.5mm
Upper Cover: Stainless Steel SUS304 2.0mm

Brake Rod
Material:

Stainless steel SUS304

Channel Width:

550~600MM

Product Line Drawings:

Technical Parameters

◆Box material: Austenitic stainless steel SUS304

◆Internal structure: frame structure/standard stainless steel shell;

◆Power supply voltage: AC110~220V±10V

◆Service life: more than 15 million times of continuous opening and closing

◆Working environment temperature: -35℃～75℃

◆Relative humidity: 0～90% (no condensation)

◆Communication interface: switch electrical signal, expandable RS232 serial port

◆The working speed of the turnstile: ≤30 people/min (the memory mode can be turned on)

◆Passing time: swiping card travel time: 10S (if no one passes within 10S: the gate will automatically close, and the time can be adjusted according to needs)

Function Parameters

Basic Functions

●Alarm Function: Sound and light alarm function.

●Anti-interference: To prevent the gate abnormal caused by electromagnetic and other external causes.

●Passage Mode Setting: Unidirectional passage, bidirectional passage and free passage can be set through the main control board keys.

●Anti-tailgating: To prevent the unpermitted situation of passing too many people at once.

● Anti-clamp Function: When the brake is in the process of closing, the brake will stop closing after detecting the anti-clamp signal.

●Self-reset. Pass right will be canceled if people do not go through within a set time, the default time is 10s, and the passage time can be set by switch.

●Access Control: The external port can be connected to a variety of biometric identification devices.

●The gate opens after power failure.

●Fault Detection: The control board can support fault type detection, fault cause analysis, and fault troubleshooting.

●Passing Indicator: Traffic status indicator light; the alarm function of overstay time in the channel can be set.

Extensible Functions

▲Passing Mode
△Normal: Normal passing mode.
△Passing: automatic car/electric car/motorcycle passing mode.

▲Voice broadcast, expandable voice module, and volume adjustment.

▲Switch on/Switch off Delay: set the delay of switch off after the switch machine receives the switch off signal/set the delay of switch off after the pedestrian passes. The default value is 0 seconds.

▲Swipe Card in the Channel
△Default Disable: Card swiping in the channel (in the inductive infrared region) is invalid
△Allow: Swipe card verification is allowed in the channel.

▲ Whether the Trailing and Reversing are Blocked by Closing the Door
△Not close: Reverse passage /tailgating (A swips the card, B passes) will not close the gate.
△Close the gate and then open the gate: Reverse/trailing passage will close the gate first, and open the gate again after closing.
△Not open after closing: reverse/trailing passage will close the gate, and will not open again after closing the gate.

▲Fire Linkage
△Normally open mode: the gate maintains the open state;
△ Normally closed mode: the gate maintains the switch state.

▲Passage Mode
△Bidirectional passage,swiping card bi-directionally for people flow.
△Bidirectional free passage, no credit card verification is required.
△Unidirectional passage, unidirectional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes.
△Unidirectional free passage, unidirectional (A) free passage, and reverse directional passing (B) require a swiping card verification.
△Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state.

Three roller gate common failure maintenance methods:
1. After opening the gate can not be reset in time: check whether the H2 position of the motherboard has 12V voltage output, no may have problems with the motherboard. With a metal plate blocking the reset switch head, the H2 position on the motherboard will have 12V voltage output, at this time you can try to reset.
2. Three-roller gate does not go up the pole: check whether the power-off pole electromagnet is suction iron; power-off pole electromagnet is DC12V power supply; check whether the power-off pole electromagnetic device is the top of the carousel within the shrapnel, such as yes, the whole device will be shifted up, so that the two do not come into contact with each other.

About us

IRONMAN Intelligent, established in 2014 and is located in Shenzhen,China. We are a diversified national high-tech enterprise focusing on high-end pedestrian turnstile equipment which expertise in turnstile product research, development, manufacturing, sales and service.

IRONMAN Intelligent has launched series of pedestrian turnstile products and intelligent security solutions with the including our patented speed gates, flap barrier gates, swing barrier gates, sliding gates, tripod turnstiles, and customs border inspection specified AB gate, kindergarten specified turnstile gates, etc. Our projects cover many fields such as government agencies, public transportation, commercial centers, community properties, municipal schools, smart hospitals, smart scenic spots, enterprises and so on.

FAQ

Q: Does the products Installation Easy?
A:Very easy, every customer can do it by themselves, we will supply all the components for installation and very detailed manual for you. If you still have confusion, our technician could support you all the time by video to make sure there is no mistake of connection.
Q: How long is the warranty on the products?
A:Our products have a one-year warranty, you can contact us at any time during this year if you have any problems.
Q: If the products have CE certificated?
A: Sure, our products have sold to more than 30 countries and our products have been approved by local rules and test very good function.
Q: Can we visit your factory before placing an order?
A: Of course there is no problem. We welcome you to visit the factory at any time.
Q: How to proceed with an order?
A: Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions. Thirdly, customer confirms the samples and places a deposit for formal order. Finally, we arrange the production and then delivery.
Q: How will the products be packaged for export?
A: Our products are packaged in wooden crates with pearl cotton and cling film for export transporta
