| Place of Origin: | China |
| Brand Name: | IRONMAN |
| Certification: | ISO9001;CE;FCC |
| Model Number: | IM.B226 |
Product Overview

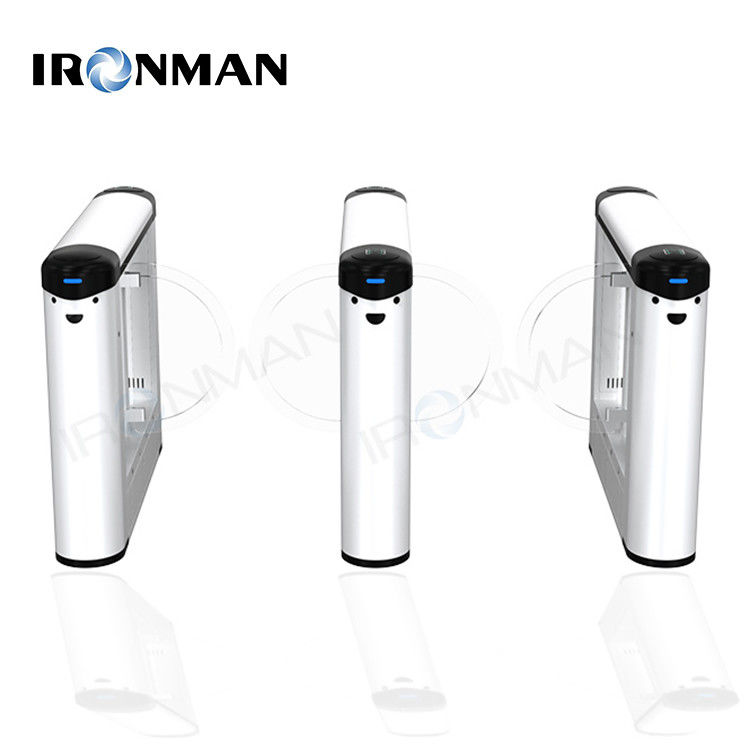

Our Kindergarten Safety Swing Barrier Turnstile gate with Swipe card Optical Channel is a state-of-the-art access control solution designed specifically for kindergartens. Combining the functions of a swing barrier turnstile, swipe card identification, and optical channel technology, it provides a highly secure, efficient, and convenient access management system for kindergartens, ensuring the safety of children and optimizing the management of the campus environment.
Key Features
1.High - security Swing Barrier
The swing barrier is made of high - quality materials, with a sturdy structure that can effectively prevent unauthorized entry. Its sensitive obstacle - detection function can immediately stop the movement of the barrier when it detects any obstruction, protecting children from potential collisions and injuries. The barrier swing angle and speed can be adjusted according to different needs, providing flexible and safe access control.
2.Swipe Card Identificatio
The swipe card system allows for quick and accurate identification of authorized personnel, including teachers, parents, and administrative staff. Each card is encrypted, ensuring that only authorized individuals can enter the kindergarten. This not only improves the security of the kindergarten but also makes the access process more convenient and orderly. Parents can use the swipe card to pick up and drop off their children, and the system records each access event, providing a complete access log for easy management and traceability.
3.Optical Channel Technology
Supports multiple access control methods, such as RFID cards for children and teachers, ensuring that only authorized personnel can enter the kindergarten. The system can also be integrated with the kindergarten's management software, providing real - time attendance records and access logs.
specification
| Dimensions | length 1200* width 200* height 900mm |
| Infrared detection | 6 pairs |
| Relative Humidit | relative humidity ≤95% |
| Channel Width | ≤710mm |
| Traffic Speed | ≤30 people/minute |
| Passing Direction | two-way (optional) |
| Working Environment | indoor and outdoor |
| Unlock Time | 0.2s |
| Power Supply Voltage | AC110~220V±10% |
| Communication Distance | ≤1200 meters |
Basic Functions |
Alarm Function | Equipped with audible and visual alarm functions. |
| Anti-Interference | Effectively prevents abnormal operation of the turnstile caused by external factors such as electromagnetic interference | |
| Passage Mode Setting | Can set one-way passage, two-way passage, and free passage | |
| Anti-Tailing | Prevents non-permitted situations where excessive people pass through at one time | |
| Anti-Pinch Function | When the turnstile is in the process of closing, it will stop closing upon detecting an anti-pinch signal | |
| Automatic Reset | After the turnstile is opened, if no passage occurs within the specified time, the system will automatically cancel the user's current passage authority; the default time is 6 seconds, and the passage time can be set via a switch | |
| Access Control | External ports can be connected to various biometric devices | |
| Power-Off Gate Opening | The gate opens automatically when power is cut off | |
| Fault Detection | The control board supports fault type detection to assist in analyzing fault causes and handling abnormal failures | |
| Passage Indication | Equipped with passage status indicator lights; can also set an alarm function for exceeding the sojourn time in the channel |
Cases
About IRONMAN
FAQ
1.What is the warranty for the machine?
