Product Details
Place of Origin: China
Brand Name: IRONMAN
Certification: ISO9001
Model Number: IM.ST602
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: carton packing
Delivery Time: 8-15 work days
Payment Terms: L/C, T/T
Supply Ability: 2000 pc per/month
Name: |
Swing Barrier Speed Gate Turnstile |
Dimensions: |
Length 1500* Width 150* Height 1000mm |
Wing Material：: |
Transparent Acrylic；T=10MM |
Material: |
Stainless Steel 304，sheet Metal Thickness 1.5mm； |
MCBF: |
8 Million Times |
Name: |
Swing Barrier Speed Gate Turnstile |
Dimensions: |
Length 1500* Width 150* Height 1000mm |
Wing Material：: |
Transparent Acrylic；T=10MM |
Material: |
Stainless Steel 304，sheet Metal Thickness 1.5mm； |
MCBF: |
8 Million Times |

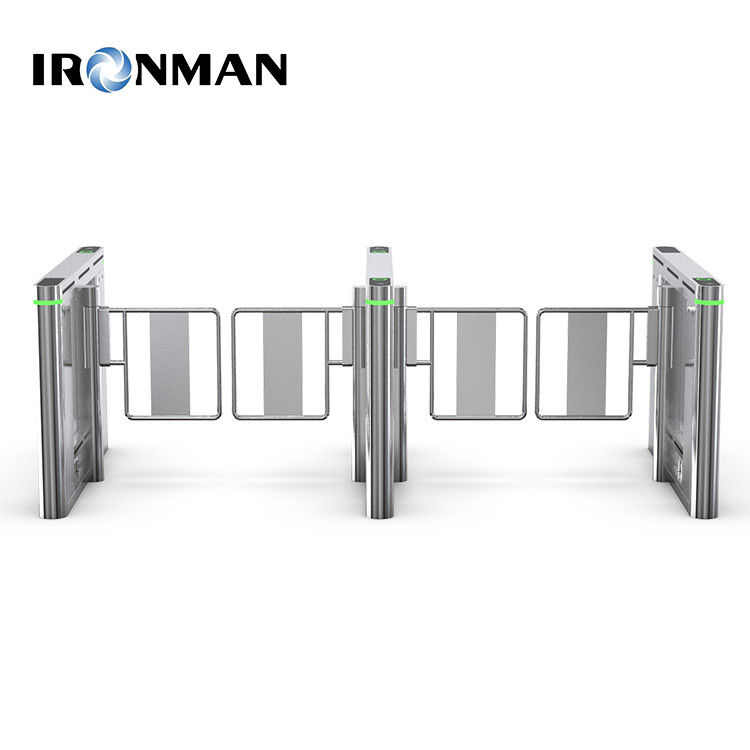

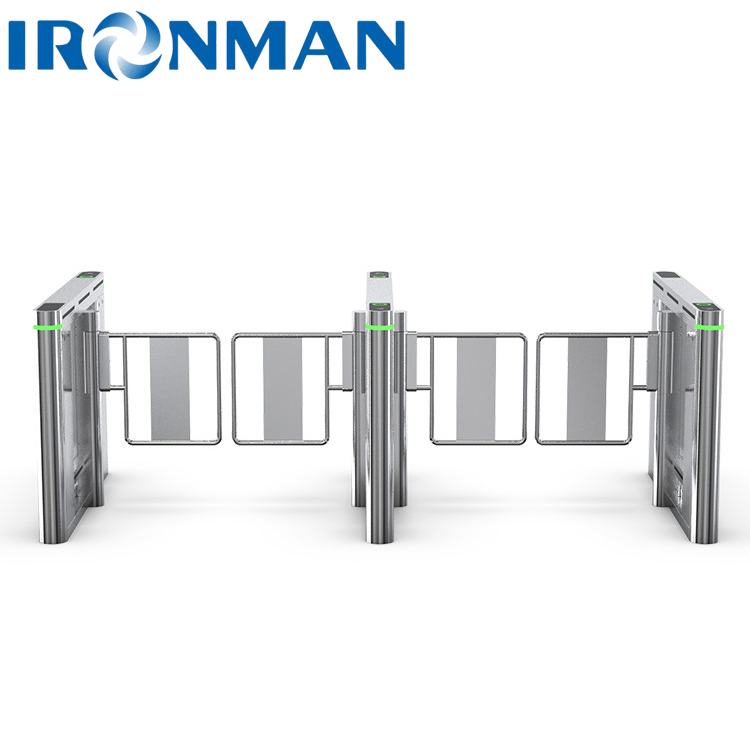

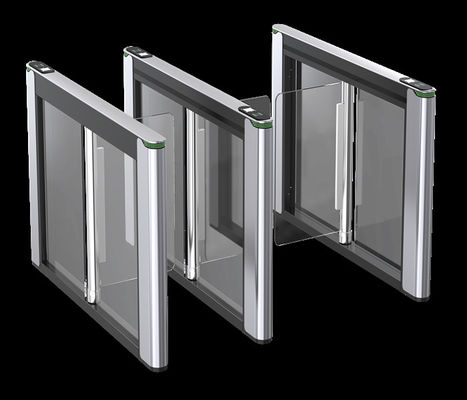

Stainless Steel Access Control Speedlane Swing Turnstile Entrance Gates
| Product Specifications of (IM.ST60) Swing Turnstile |
||||
| Product Parameters | Dimensions | 1600*100*980MM | Housing Material: | Stainless Steel 304,sheet metal thickness 1.5mm； |
| wing material: | Transparent Acrylic；T=10MM | Surface: | Hairline Drawing | |
| Product Parameters | 1,Dimensions(Customization Accepted):length 1500* width 150* height 1000mm； 2,Material:Stainless Steel 304,sheet metal thickness 1.5mm； 3,Power Supply Voltage:AC110~220V±10%,50Hz,Drive current＞200mA； 4,Drive Motor:24V Brushless Motor,Infrared Detection Sensor:8 pairs； 5,High Precision Clutch Movement,MCBF:8 million times； 6,Relative Humidity:Relative humidity ≤ 95%,Non-condensation； 7,Input Interface: Dry Contact; 12V level signal or 12V pulse signal with pulse width >100ms; 8,Communication Interface: RS485 electrical standard； 9,Baffle Arm Material:Acrylic/tempered glass； 10,Baffle Arm Length:≤475mm,Channel Width :≤1000mm； 11,Traffic Speed: ≤ 45 people/min； 12,Passing Direction:supports one-way and two-way (optional); 13,Working Environment: indoor/outdoor ; Working temperature:－30℃～+70℃； |
|||
| Function Parameter | Basic Function | ●Voice broadcast:it has the function of entering and opening the gate / exiting the gate / breaking in voice / trailing voice / stop voice broadcasting function | ||
| ●Intellihrnt linkage alarm function:including sound and light alarms of break-in and reverse pass,which can be linked with other alarm monitoring equipment | ||||
| ●Anti-interference:It can limit the abnormality of the gate caused electromagnetic and other external factors | ||||
| ●Traffic mode setting:One-way traffic, two-way traffic, free traffic, etc. can be set through the buttons on the main control panel | ||||
| ●Anti tailing: prevent the unauthorized situation of too many people at one time. | ||||
| ●Anti pinch function:When the gate is in the process of closing, the gate will stop closing after detecting the anti-pinch signal | ||||
| ●Automatic reset: after opening the gate, if the user does not pass within the specified time, the system will automatically cancel the user's permission to pass this time; The default is 10 seconds, and the traffic time can be set through the switch | ||||
| ●Access control: External port can connect a variety of biometric devices | ||||
| ●Power off and opening:switch off after power off, and the switch opening direction can be set | ||||
| ●Fault detection:Control board can support fault type detection,Assist in analyzing the causes of faults and handling faults and abnormalities. | ||||
| ●Passing indication: with passing status indicator; It can also set the alarm function of exceeding the stay time in the channel | ||||
| Extension Function | ▲ Passing Mode △ Normal: normal pedestrian passing mode △ Passing: automatic vehicle / electric vehicle / motorcycle passing mode |
|||
| ▲Opening / closing delay, set the delay opening time after the gate turnstile receives the opening signal/set the delay closing time after pedestrians pass, the default is 0 seconds | ||||
| ▲Card swiping in the channel △Default forbidden: card swiping in the channel (inductive infrared area) is invalid △Permission:card swiping verification is allowed in the channel |
||||
| ▲Whether the trailing and reversing are blocked by closing the door △The gate Closed: the reverse/trailing (A swipe card, B pass) will not close the gate △Close the gate first and then open the gate: close the gate first for reverse/trailing traffic, and then open the gate again after closing △Do not open the gate after closing the gate: the reverse/trailing traffic will close the gate, and the gate will not be opened again after closing |
||||
| ▲Fire linkage △Normally open mode: the gate remains open; △ Normally closed mode: the gate remains closed |
||||
| ▲System language function △Chinese: The system can set the Chinese interface △English: The system can set the English interface |
||||
| ▲Passage Mode △Bidirectional passage,swiping card bi-directionally for people flow. △Bidirectional free passage, no credit card verification is required. △Unidirectional passage, unidirectional (A) swiping card, and the gate opens normally for people flow; reverse directional (B) swiping card is invalid, and the gate closes. △Unidirectional free passage, unidirectional (A) free passage, and reverse directional passing (B) require a swiping card verification. △Passing is prohibited, Bidirectional swiping card is invaild, and the gate enters the locked state. |
||||
Dimension Drawing
Projects:
IM.ST602 Speed Gate Turnstile is a commercial design turnstile equipped with all the latest features to speed up operation. Measuring 1500mm*120mm*980mm, it offers a convenient 600mm passage width. With a life span of 8 million times, it is made of stainless steel. This turnstile is designed for maximum security and fast operation. It can easily handle high traffic areas and is an ideal choice for commercial applications.
Features:
Fast induction pass, small footprint and powerful control panel
Product Application
Indoor Unit can be used for:Airports, subways, libraries, office buildings, theaters, office buildings, factories, scenic spots, stations, leisure and entertainment venues, etc.
